Description

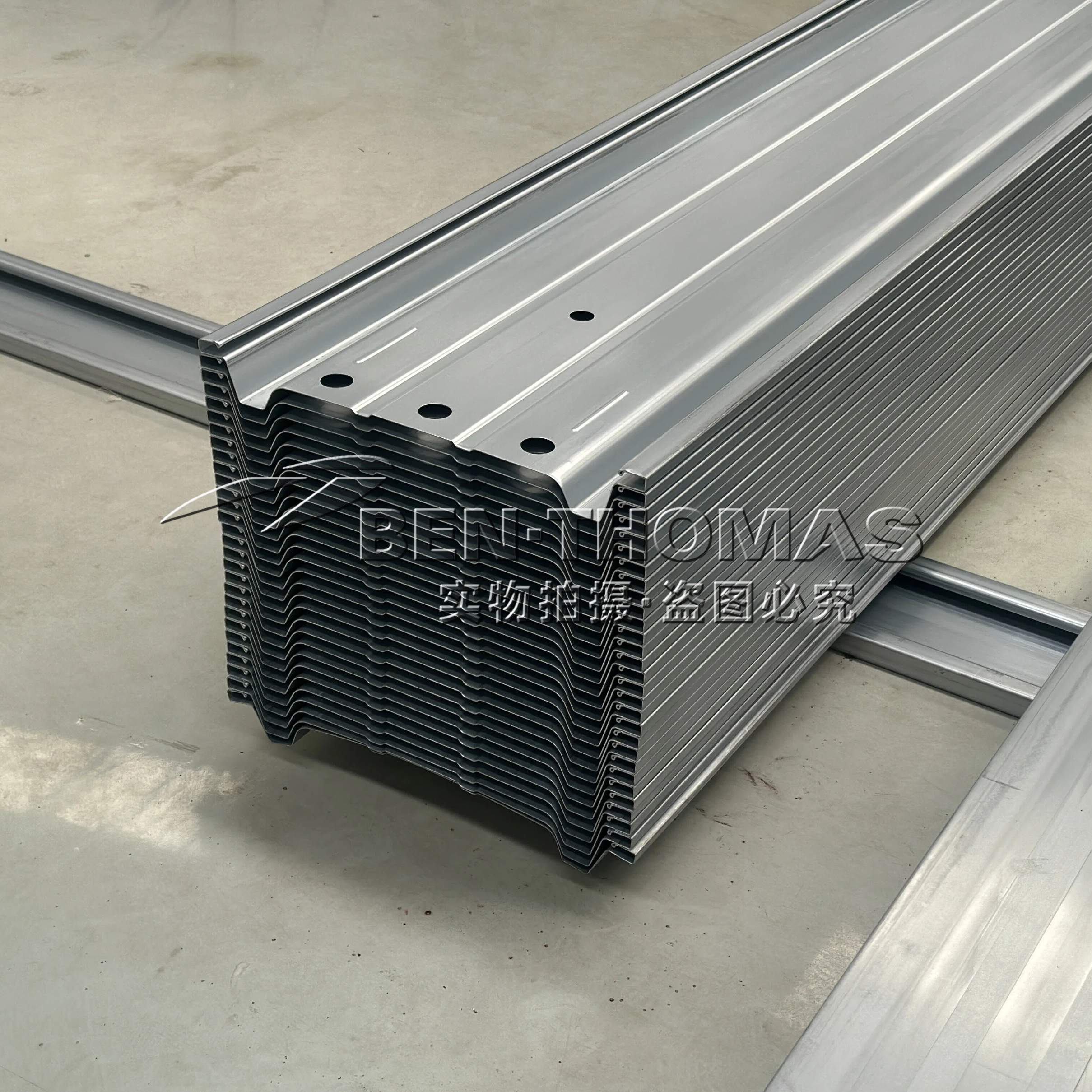

The Electrostatic Precipitator Anode Plate Roll Forming Machine is a Roll Forming Machine for Collecting Plates for ESP Component engineered specifically to manufacture the collecting electrodes used in ESP dust removal systems. These anode plates form the backbone of electrostatic precipitation technology, capturing particulate matter from industrial exhaust gases.
How the Machine Works

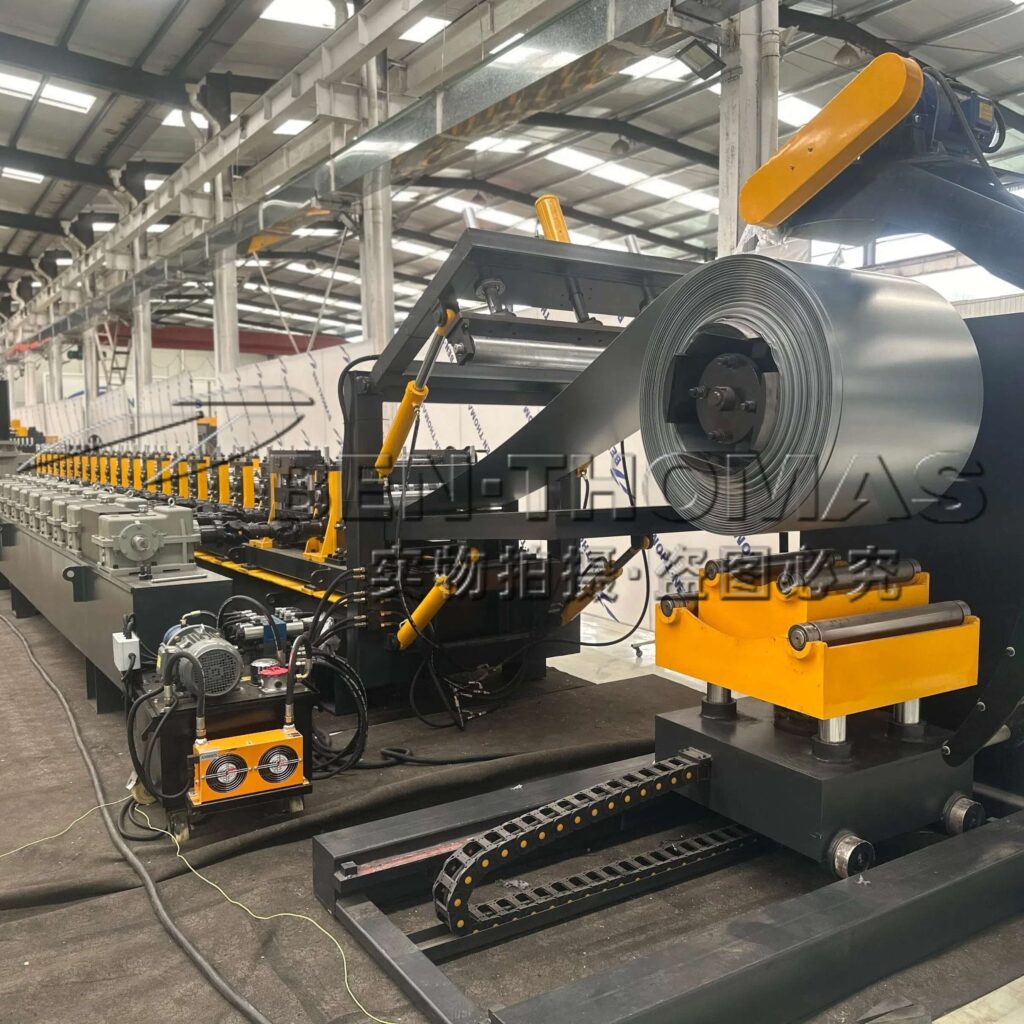

The production process begins with a decoiler that feeds flat steel coils (usually SPCC cold-rolled or stainless steel). A leveling station ensures perfect flatness, followed by the core roll forming unit where 18–28 progressive stations gradually shape the strip into W-type, C-type, or specialized profiles (such as C480, C385, or 510W). Hydraulic punching (if required) and a high-speed cutter create precise lengths, while an automatic stacker collects the finished plates.
The production process begins with a decoiler that feeds flat steel coils (usually SPCC cold-rolled or stainless steel). A leveling station ensures perfect flatness, followed by the core roll forming unit where 18–28 progressive stations gradually shape the strip into W-type, C-type, or specialized profiles (such as C480, C385, or 510W). Hydraulic punching (if required) and a high-speed cutter create precise lengths, while an automatic stacker collects the finished plates.
Key Technical Highlights
Rollers are made of hardened chromium steel (HRC 58–62) for extreme durability. The PLC control system (Siemens or Delta) allows quick profile changes and real-time monitoring, minimizing downtime and material waste.
Rollers are made of hardened chromium steel (HRC 58–62) for extreme durability. The PLC control system (Siemens or Delta) allows quick profile changes and real-time monitoring, minimizing downtime and material waste.
Industrial Applications
In large-scale industrial buildings such as power generation halls and cement production facilities, these precisely formed anode plates enable ESPs to operate at peak efficiency. The rigid profiles resist deformation under high-temperature flue gases and repeated rapping cycles, ensuring long service life in demanding environments.
In large-scale industrial buildings such as power generation halls and cement production facilities, these precisely formed anode plates enable ESPs to operate at peak efficiency. The rigid profiles resist deformation under high-temperature flue gases and repeated rapping cycles, ensuring long service life in demanding environments.
By understanding these core components, engineers and manufacturers appreciate why this roll forming machine is indispensable for producing reliable pollution-control equipment.
