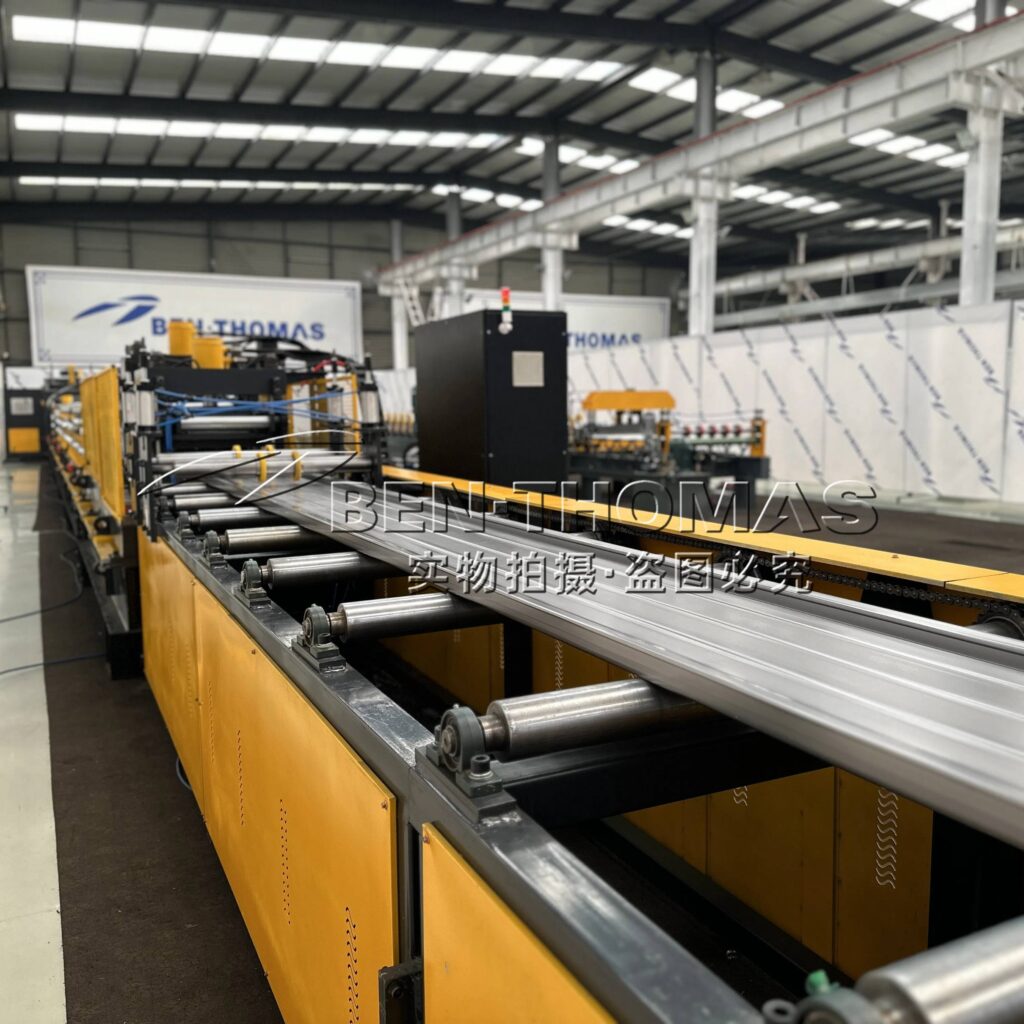

Collecting Electrodes Roll Forming Machine

A Collecting Electrodes Roll Forming Machine is a piece of industrial equipment used to manufacture components for environmental protection systems, specifically electrostatic precipitators (ESPs) .

Electrostatic precipitators are large-scale air pollution control devices used in industries like power plants, cement factories, and steel mills to remove fine dust and particles from exhaust gases. They work by giving the particles an electrical charge and then collecting them on metal plates with the opposite charge.

Collecting Electrodes Roll Forming Machine Details :

1. Loading Car & Uncoiler: To hold and feed the large metal coil into the line.
2. Guiding & Feeding Device: To ensure the metal strip enters the forming station straight and correctly.
3. Roll Forming Machine: The core station where the actual shaping of the metal into the electrode profile happens through a series of rolls.
4. Punching : Drilling holes base on the specific hole pattern drawings ;
5. Cutter: To cut the continuously formed profile to the required length.
6. Automatic Stacker: To automatically stack the finished electrodes for easy handling and packaging.
7. Hydraulic and Electric Control Systems: To power and precisely control the entire production process.

Therefore, a Collecting Electrodes Roll Forming Machine is a production line specifically designed to take flat metal coils and shape them into the long, rigid profiles needed for collecting electrodes . The machine is not a single device but an integrated system.
