Description
The robust side panels of cargo ships are not just simple metal sheets—they are precision-engineered structural components produced by advanced automated equipment: the Ship Bulkhead Panel Production Line.
But how does this complex production line transform raw steel coils into durable ship hull panels? Understanding the function of each core component is key to appreciating its efficiency, precision, and value in the shipbuilding industry. In this article, we’ll break down the line’s core components, their roles, and how they work in tandem to deliver high-quality cargo ship side panels.
First, let’s clarify: a cargo ship side panel forming line is an automated production system designed to produce metal side panels for cargo ship hulls through a continuous cold roll forming process. Cold roll forming is ideal for ship panel manufacturing because it shapes steel at room temperature, preserving the material’s high strength, corrosion resistance, and structural integrity—critical properties for components exposed to harsh marine environments. The line is engineered to handle high-strength steel (commonly AH36, DH36, and EH36 grades, widely used in shipbuilding) and produce panels with consistent dimensions, ensuring seamless assembly in shipyards.
The first core component of the line is the decoiler (also known as the uncoiler), a heavy-duty unit that serves as the foundation of the production process. Designed to hold large steel coils (weighing 10-20 tons and with diameters of 1200-1800mm), the decoiler uses adjustable tension control to uncoil the steel sheet smoothly and evenly. This tension control is critical: it prevents the sheet from wrinkling, tearing, or warping, ensuring a flat, uniform feed into the next component. Many advanced decoilers feature automatic coil loading and centering functions, reducing downtime and improving production efficiency.
Next is the leveling unit, a component often overlooked but essential for precision. Steel coils, after being stored and transported, often develop curvature or unevenness. The leveling unit uses a series of upper and lower rollers to flatten the steel sheet, eliminating any defects and ensuring uniform thickness across the entire sheet. This step is vital because even minor unevenness can lead to errors in the forming process, resulting in panels that do not meet shipbuilding standards. The leveling unit typically has 7-11 rollers, adjustable to accommodate different steel thicknesses (3.0mm to 12.0mm).

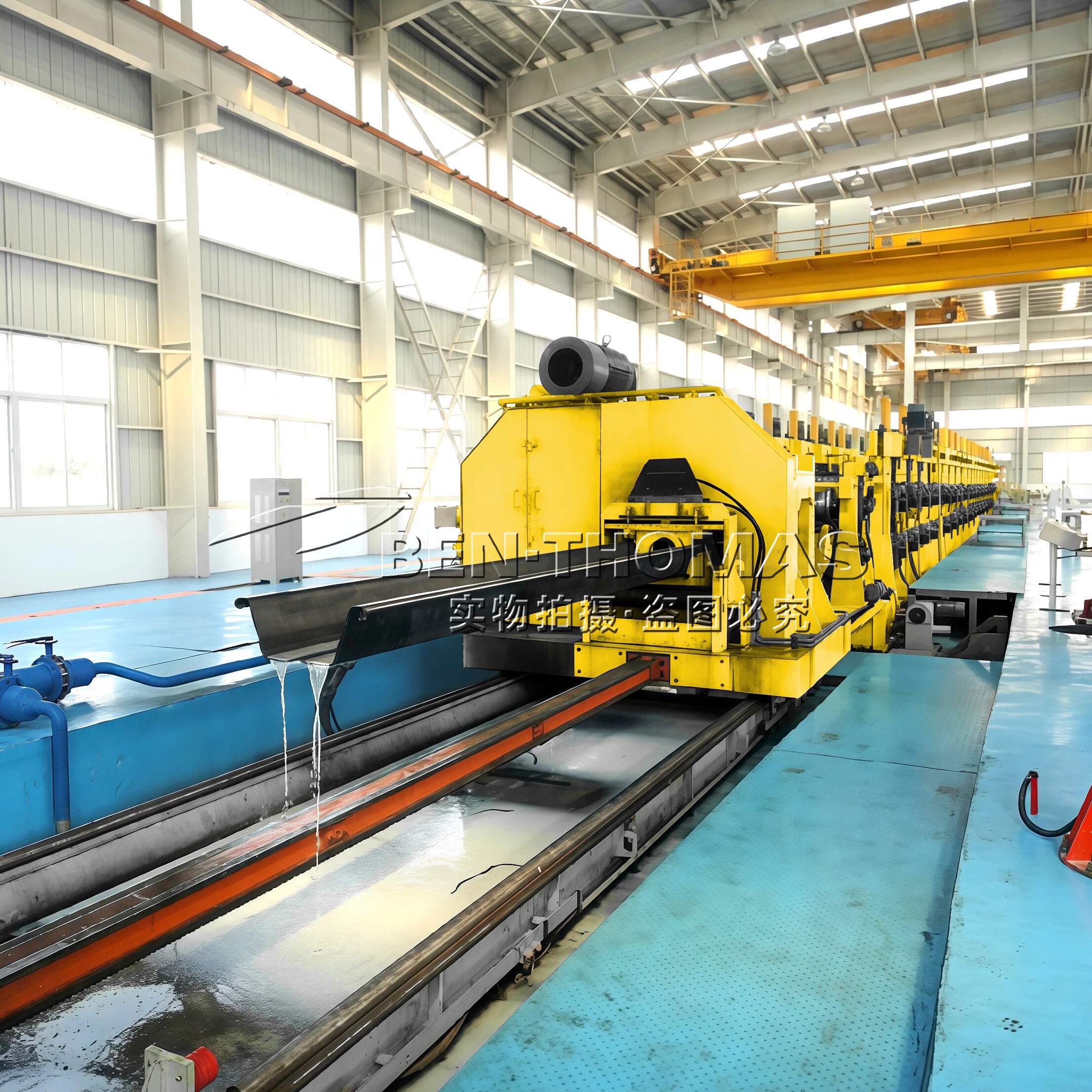

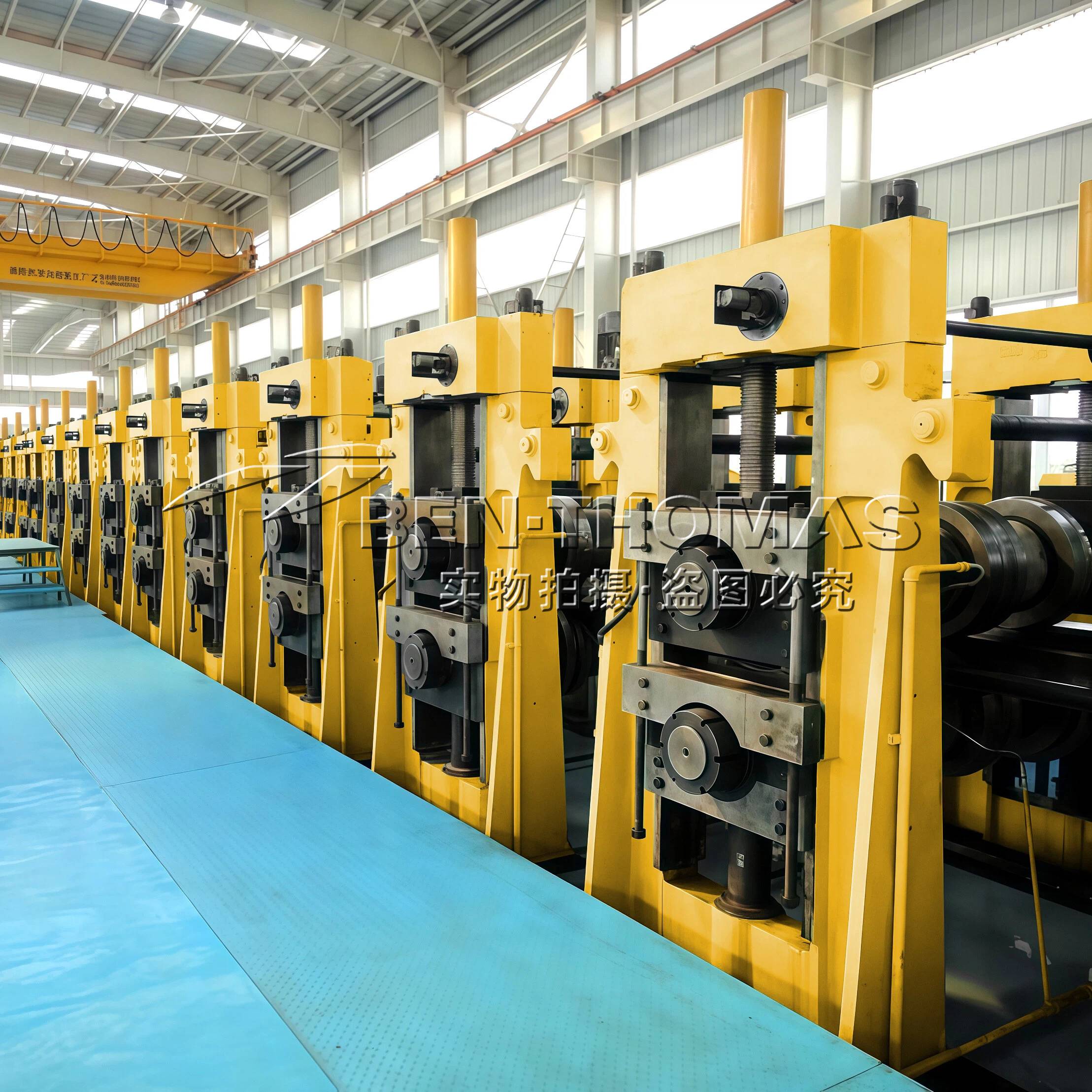

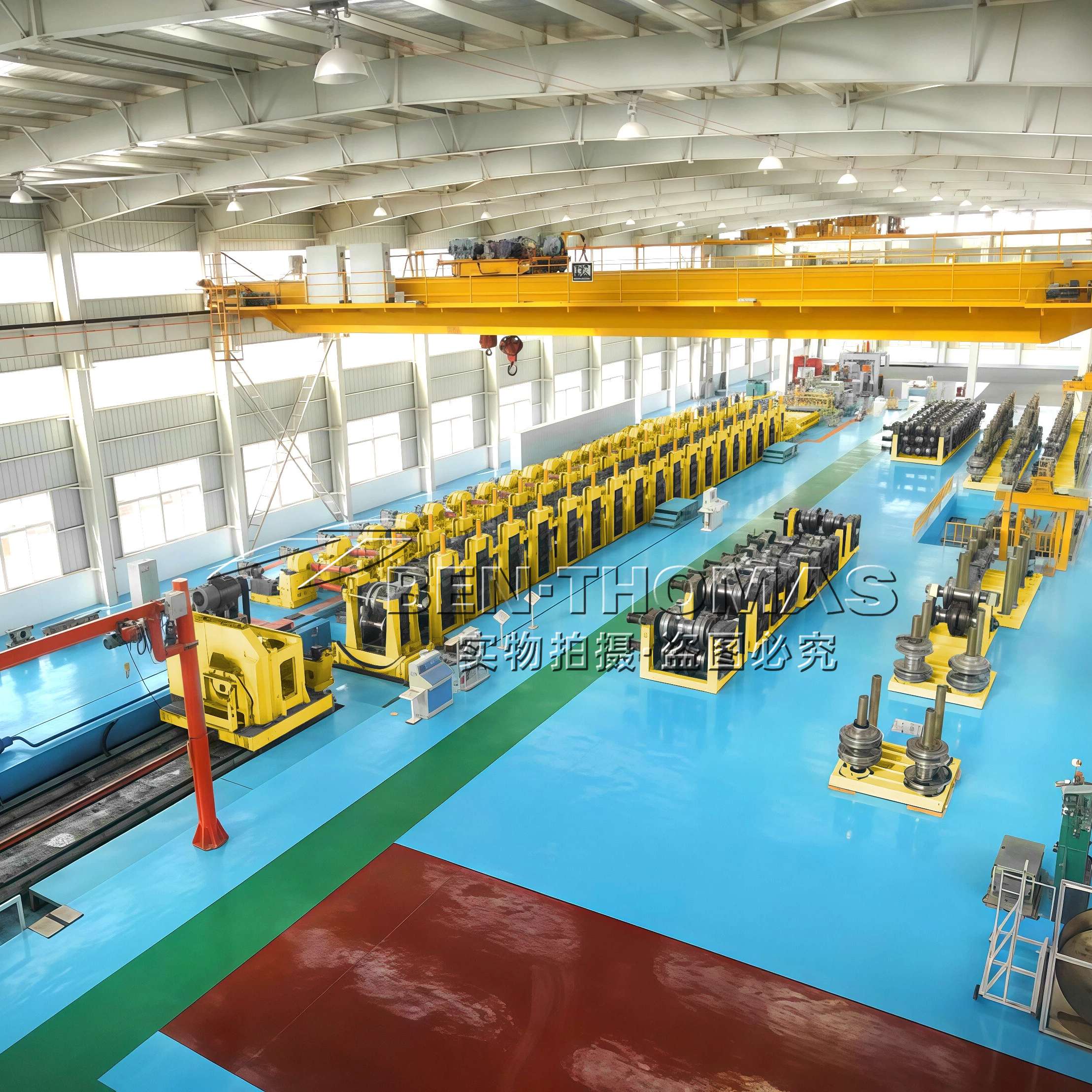

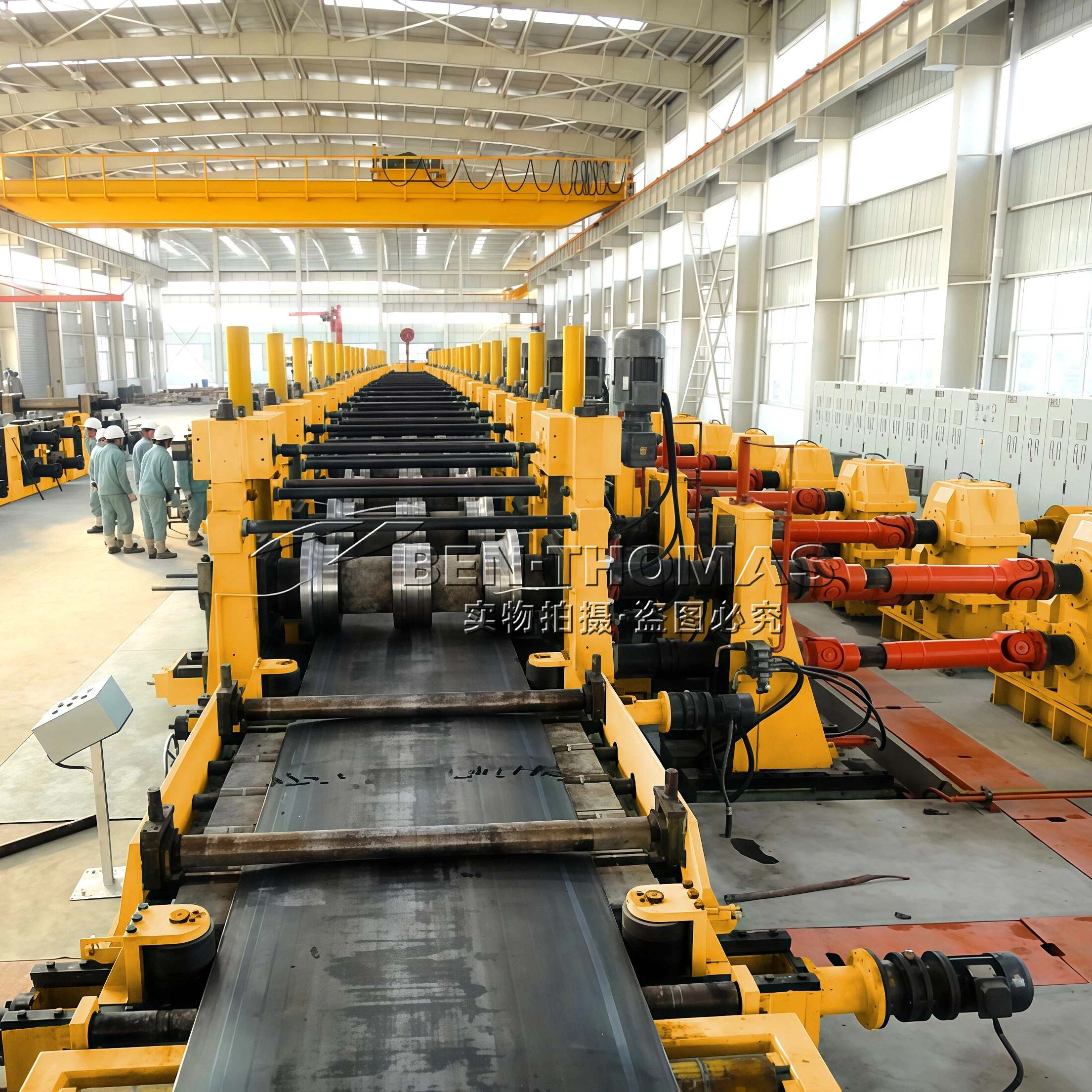

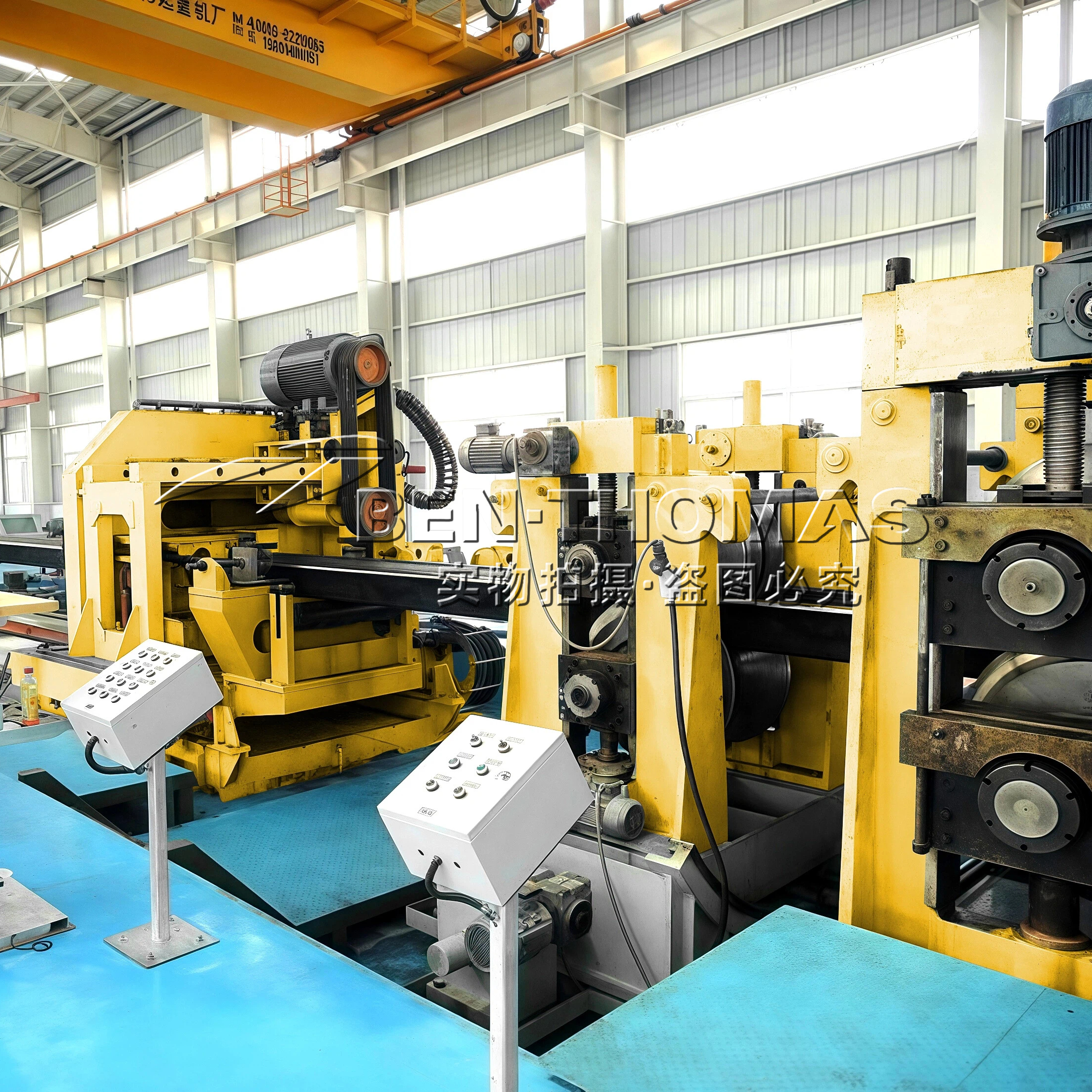

The main cold roll forming machine is the heart of the production line, responsible for shaping the flat steel sheet into the final side panel profile. This machine consists of 18-26 sequential, precision-machined rollers, each designed to bend the steel sheet incrementally. Unlike traditional bending methods that bend the steel in one step (which can cause cracking), the incremental forming process gradually shapes the sheet into the desired profile—commonly corrugated (for enhanced strength), flat (for smooth hull surfaces), or curved (for the ship’s hull contour). The rollers are made from high-quality alloy steel and surface-treated with hard chrome plating to resist wear, even when processing high-strength steel.
The main forming machine is controlled by an advanced PLC system, which programs the roller positions, forming speed, and profile dimensions based on the ship’s design drawings. This ensures that every panel has identical dimensions, with a profile accuracy of ±0.5mm—critical for seamless assembly in the shipyard. Additionally, the machine features a guide system to keep the steel sheet aligned during forming, preventing misalignment and ensuring consistent quality.
The fourth core component is the cutting & stacking unit, which completes the production process. After the steel sheet is formed into the continuous side panel profile, the cutting unit (equipped with a hydraulic shear or flying shear) cuts the panel into pre-set lengths (typically 6-12 meters, depending on the ship’s design). The cutting process is synchronized with the forming speed to ensure clean, precise cuts without burrs or deformation. The stacking unit then automatically arranges the finished panels into uniform piles, eliminating the need for manual stacking—reducing labor costs and minimizing the risk of damage to the panels.
Optional auxiliary components can further enhance the line’s efficiency, including a punching unit (for creating precision holes for fasteners and fittings), a surface treatment unit (for anti-corrosion coating), and an automatic packaging unit. These components are tailored to the specific needs of shipyards, allowing for customization of side panels based on unique ship designs.
All components are integrated and controlled by the PLC system, which ensures seamless synchronization between each step of the production process. The system allows for fully automated operation: operators input the production parameters (based on ship design drawings), and the line runs continuously, producing identical side panels batch after batch. The PLC system also provides real-time monitoring of production status, allowing operators to identify and address any issues quickly—minimizing downtime and maximizing productivity.
With its precision components and advanced automation, the cargo ship side panel forming line delivers consistent, high-quality panels that meet the strict standards of the shipbuilding industry. By understanding how each component works, you can appreciate why this line is the gold standard for producing the structural backbone of cargo ships.
