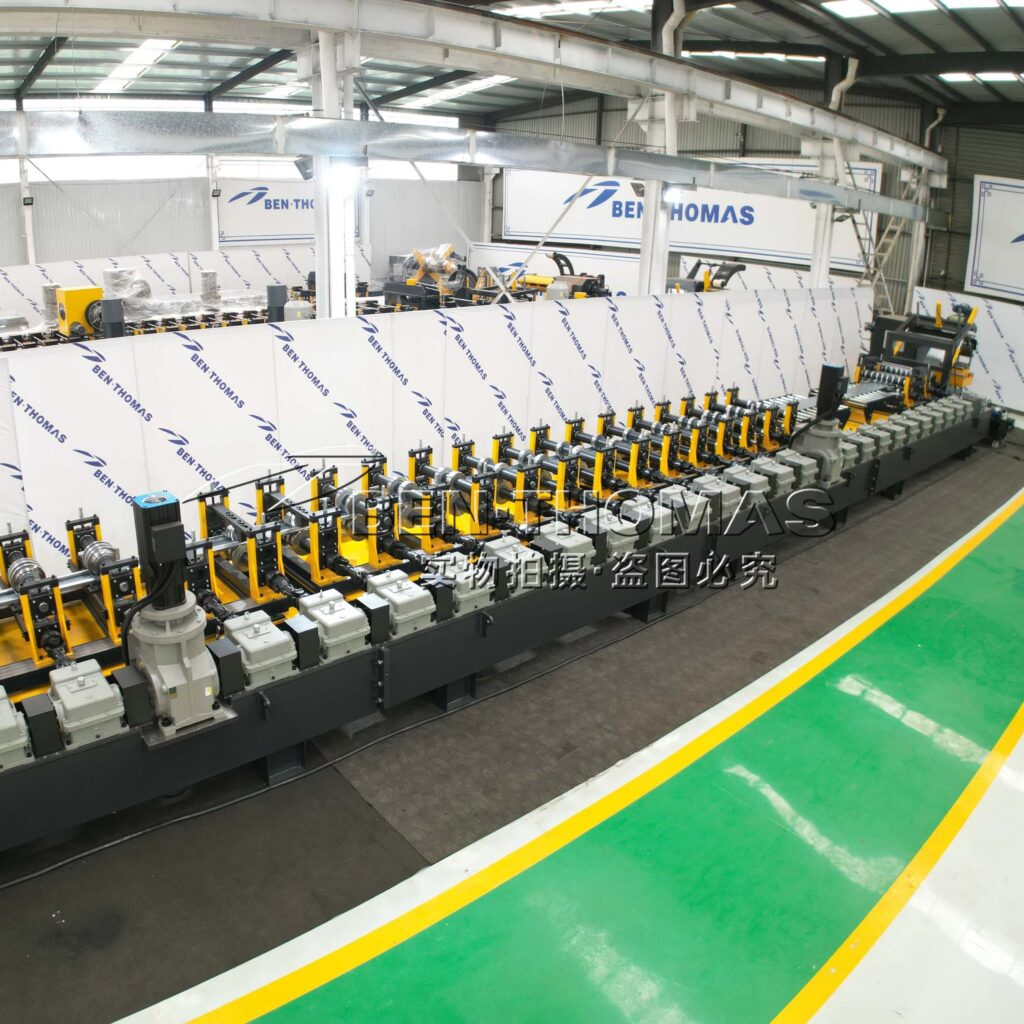

Server Rack Upright Roll Forming Line

In the world of electrical enclosures, the structural integrity of switchgear, control panels, and server racks begins with a single critical component: the upright (column) . These vertical structural members form the backbone of the cabinet, supporting everything from mounting plates and busbars to circuit breakers and control systems. Any deviation in dimension, alignment, or strength can compromise the entire assembly, leading to installation challenges, safety concerns, and reduced product lifespan.

Our Server Rack Upright Roll Forming Line are purpose-built to manufacture these essential components with unparalleled precision, efficiency, and consistency. Whether you are producing uprights for low-voltage distribution cabinets, industrial control panels, or data center server racks, our machines deliver the quality and reliability your customers demand.

Why Precision Matters in Electrical Cabinet Uprights

Electrical cabinets are not merely storage boxes—they are sophisticated assemblies where every component must fit precisely within a standardized framework. The uprights serve as the mounting interface for:

• Mounting plates: Supporting DIN rails, terminal blocks, and power supplies

• Busbar systems: Requiring exact spacing for safe electrical connections

• Doors and hinges: Demanding straight, true frames for proper sealing and alignment

• Internal accessories: Cable management, cooling fans, and lighting systems

When uprights are manufactured with tight tolerances, the entire assembly process becomes smoother, faster, and more reliable. Field modifications are minimized, and the final product meets the rigorous standards expected by electrical engineers and system integrators.

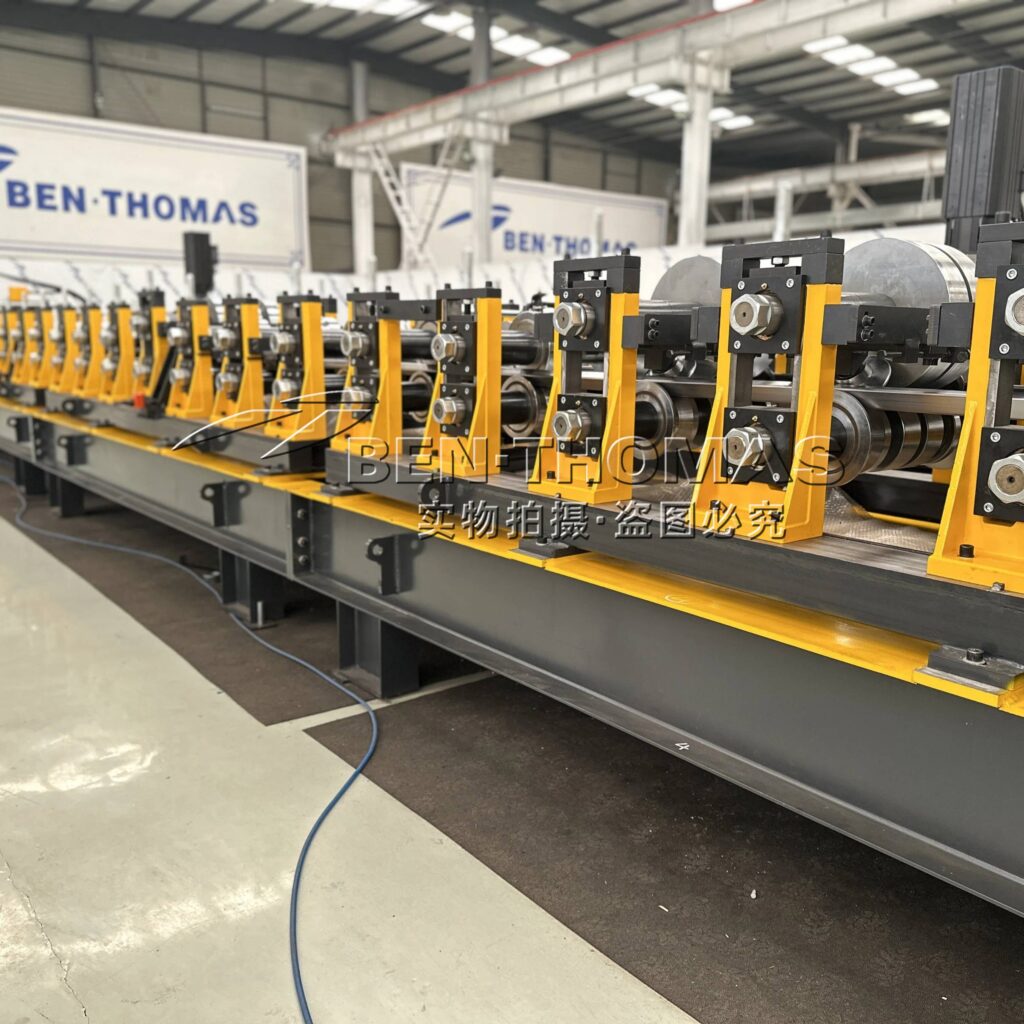

Our Cold Roll Forming Production Line: Engineered for Excellence

Our electrical cabinet upright roll forming lines integrate advanced automation, precision tooling, and robust construction to deliver consistent results—shift after shift, project after project.

High Efficiency for Demanding Production Schedules

The electrical industry operates on tight deadlines. Whether you are supplying cabinet manufacturers or producing enclosures in-house, production efficiency directly impacts your ability to meet customer commitments.

Our lines feature:

• Continuous coil-to-finished-product operation: No stop-start interruptions

• Recipe-based changeovers: Switch between different upright profiles in minutes

• 24/7 production capability: Designed for extended operation with minimal supervision

• Integrated automation: One operator can manage the entire line

This high-efficiency design translates to higher throughput, lower labor costs, and the ability to scale production as your business grows.

Tight Tolerances: The Foundation of Quality

Electrical cabinet uprights must meet exacting dimensional requirements to ensure compatibility with standardized components and accessories. Our machines achieve:

These tight tolerances are achieved through:

• Precision-ground rollers: CNC-machined from GCr15 bearing steel with hard chrome plating

• Servo-controlled feeding: Eliminates cumulative length errors

• Rigid frame construction: Heavy-duty welded steel frames maintain alignment under continuous operation

• Real-time monitoring: Sensors detect and correct deviations before they affect product quality

Low Scrap Rate: Maximizing Material Utilization

Material cost represents a significant portion of manufacturing expenses. Our lines are engineered to minimize waste through:

• Servo-driven precision punching: Eliminates mispunched holes and positioning errors

• Flying cut-off technology: Cuts to length without stopping the line, reducing end scrap

• Optimized nesting: Software-driven hole placement maximizes material utilization

• Early defect detection: Sensors identify issues immediately, preventing long runs of defective product

Manufacturers using our lines typically achieve material utilization rates of 96–98% , significantly higher than press brake or manual fabrication methods. This low scrap rate directly improves profitability.

Fast Line Speed: Meeting High-Volume Demands

Time is money in manufacturing. Our electrical cabinet upright roll forming lines operate at speeds of 15–30 meters per minute , depending on material thickness and profile complexity. This fast line speed enables:

• Rapid fulfillment of large-volume orders

• Reduced work-in-progress inventory

• Faster return on investment

• Competitive lead times for time-sensitive projects

For manufacturers supplying major electrical enclosure brands or serving the rapidly growing data center market, this speed is a critical competitive advantage.

Excellent After-Sales Service: Your Long-Term Partner

We understand that a roll forming line is a long-term investment. Our commitment to your success extends far beyond the initial sale.

We believe that reliable equipment is only half the equation—reliable support is what keeps your production running.

Applications: From Switchgear to Server Racks

The uprights produced on our roll forming lines serve a wide range of electrical enclosure applications:

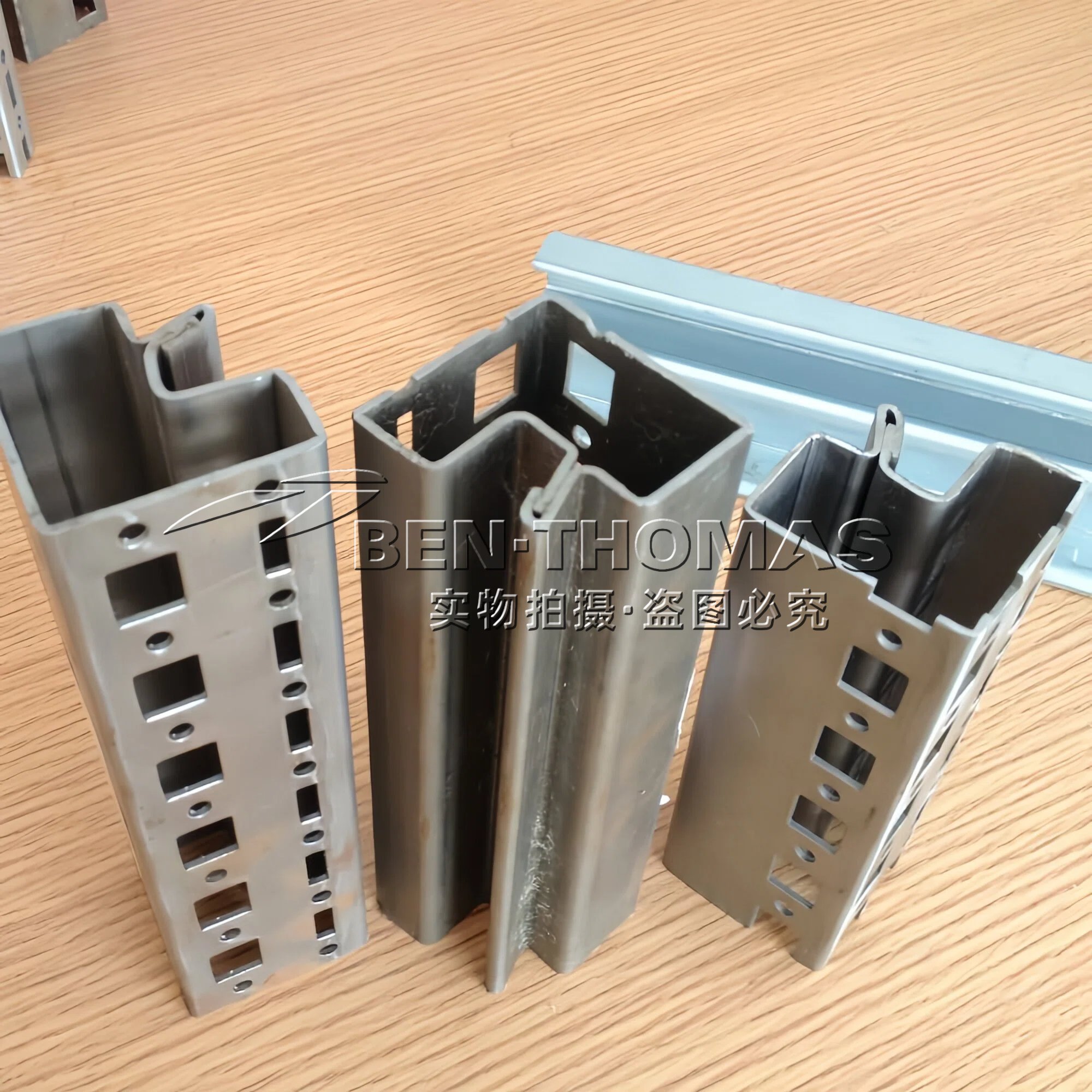

Our lines can be configured to produce a variety of profile shapes, including C-channel, square tube, and custom designs tailored to specific enclosure standards (e.g., IEC 60297 for 19-inch racks, UL 508A for industrial control panels).

Conclusion

In the electrical enclosure industry, quality is not optional—it is essential. The uprights that form the structural framework of cabinets, switchgear, and server racks must be manufactured with precision, consistency, and efficiency.

Our Electrical Cabinet Upright Cold Roll Forming Production Lines deliver exactly that: high efficiency to meet demanding schedules, tight tolerances to ensure compatibility, low scrap rates to protect margins, fast line speeds to maximize throughput, and excellent after-sales service to keep you running.

Contact us today to learn how our roll forming solutions can elevate your electrical cabinet manufacturing operations.
