Electrical Cabinet Post Manufacturing Line

An Electrical Cabinet Post Manufacturing Line (or Electrical Enclosure Rack Production Line) is a specialized industrial system designed to produce the metal frames, profiles, and structural components (specifically the vertical support “posts”) used in electrical cabinets and enclosures.

Here is a simple breakdown of what it is and how it works:

1. What Electrical Cabinet Post Manufacturing Line produces:

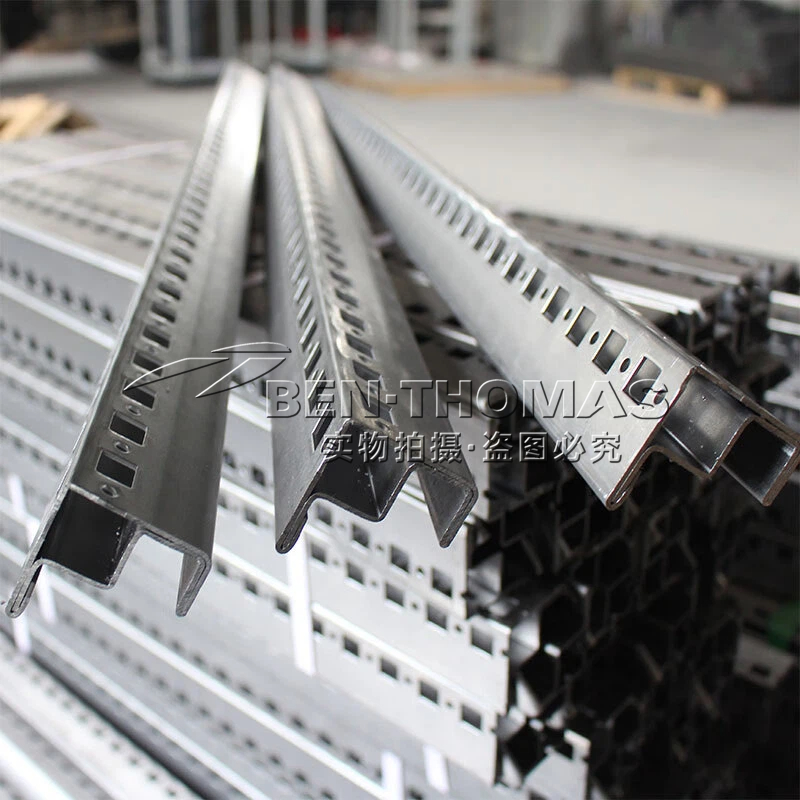

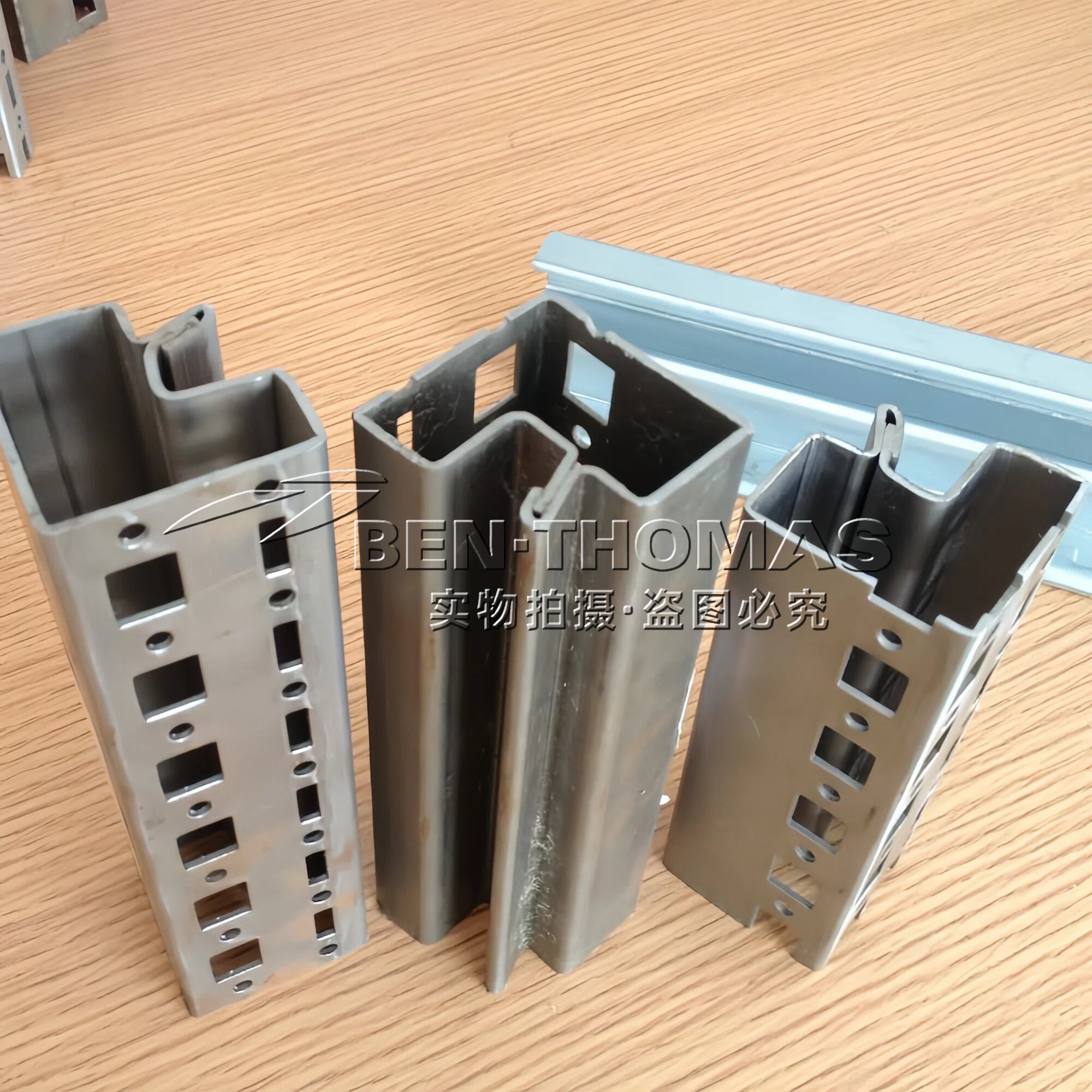

It manufactures the load-bearing vertical frames (posts) and horizontal rails that form the skeleton of electrical control cabinets, switchgear enclosures, and distribution boxes. These components are typically made from cold-formed steel or sheet metal.

2. How it works (The Process):

Input: A coil of galvanized steel or cold-rolled sheet metal is fed into the line .

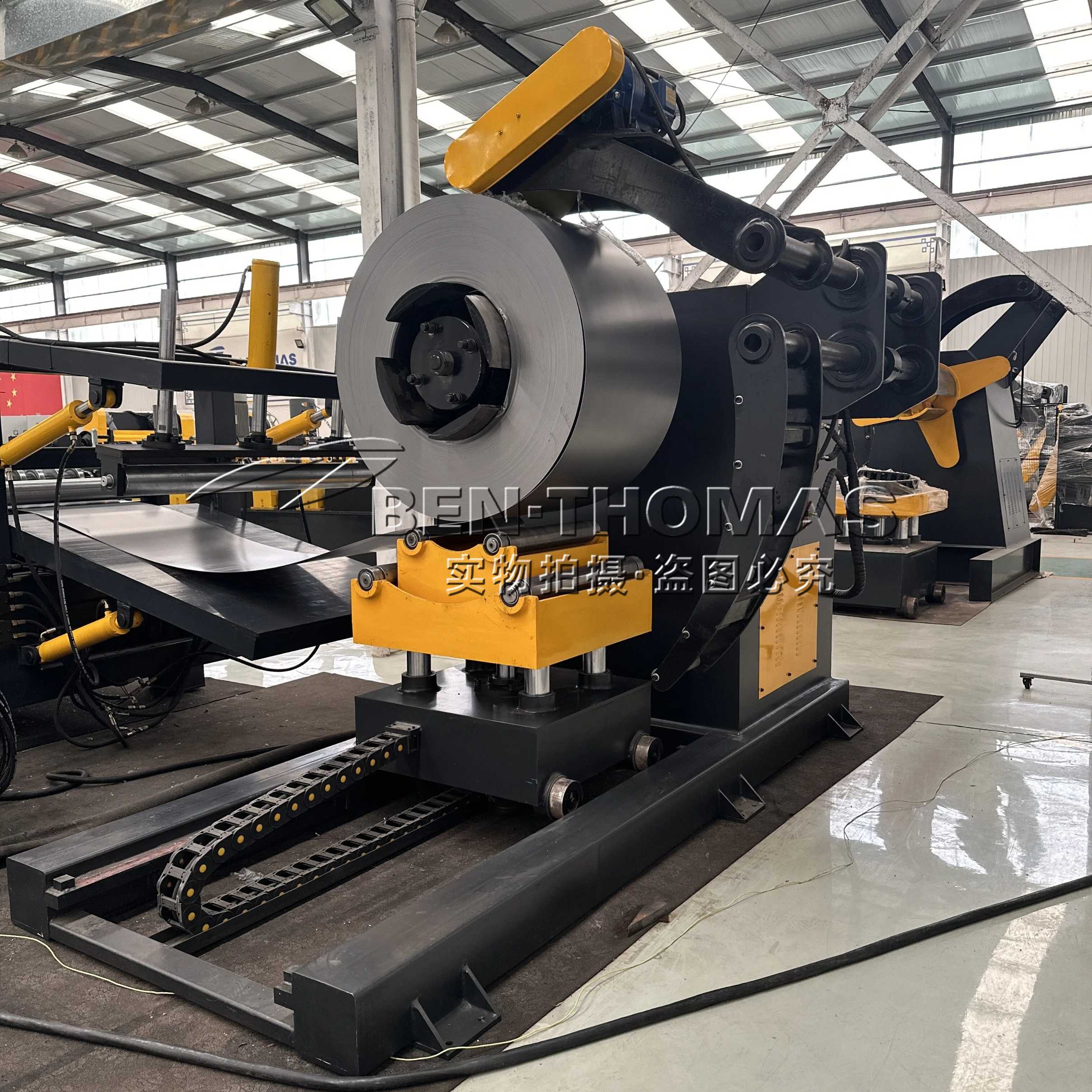

Forming/Cutting: The line uncoils, levels, and feeds the metal through a series of processes:

Punching: Holes and cutouts for mounting rails, hinges, and cable entries are punched .

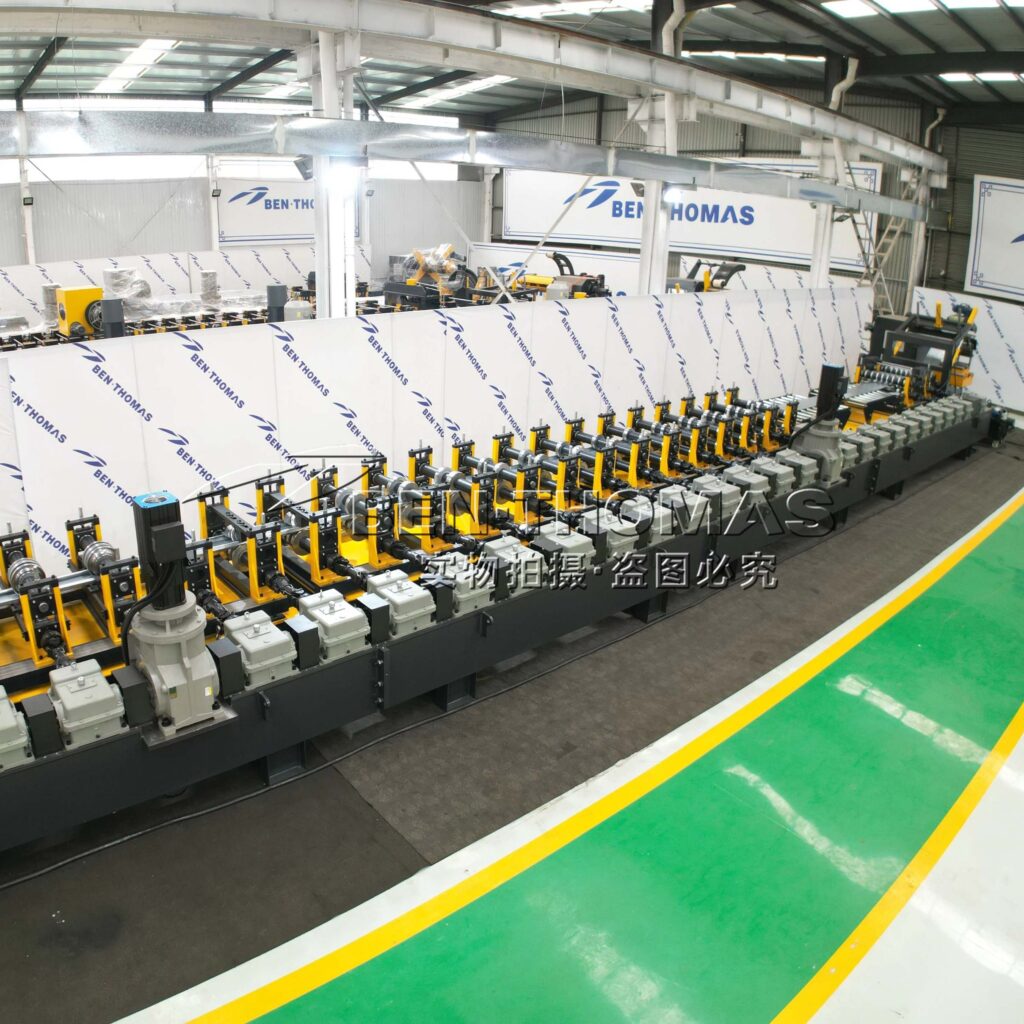

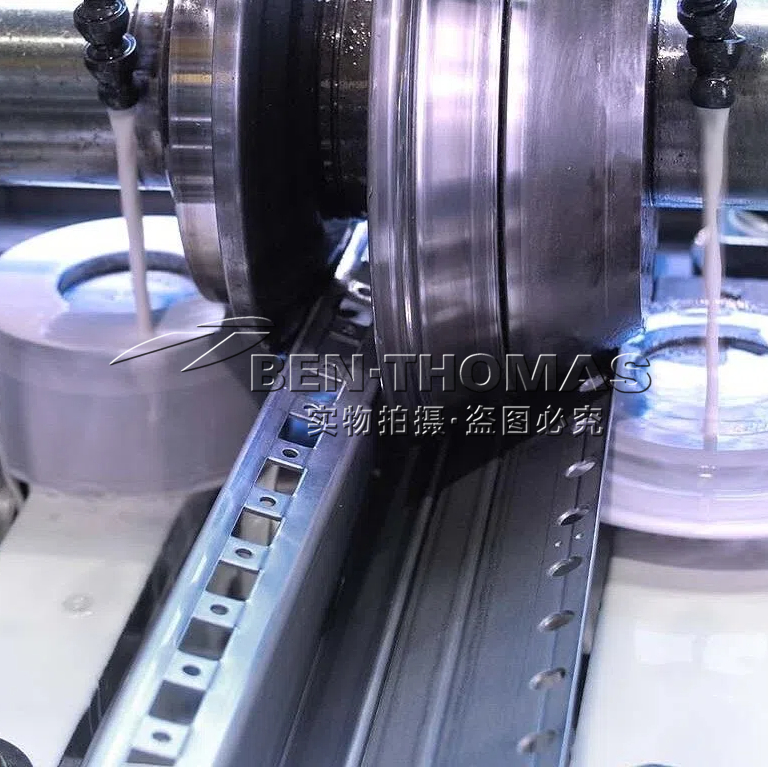

Roll Forming: The flat sheet is gradually bent into a precise “C,” “G,” or “box” profile to create the post .

Cutting: The continuous formed profile is cut to exact lengths .

Output: The result is a set of precisely cut and punched frame components ready for welding or assembly into a cabinet frame.

3. Key Technologies:

CNC Control: Programmable logic controllers (PLCs) manage the punching patterns and cut lengths for different cabinet sizes .

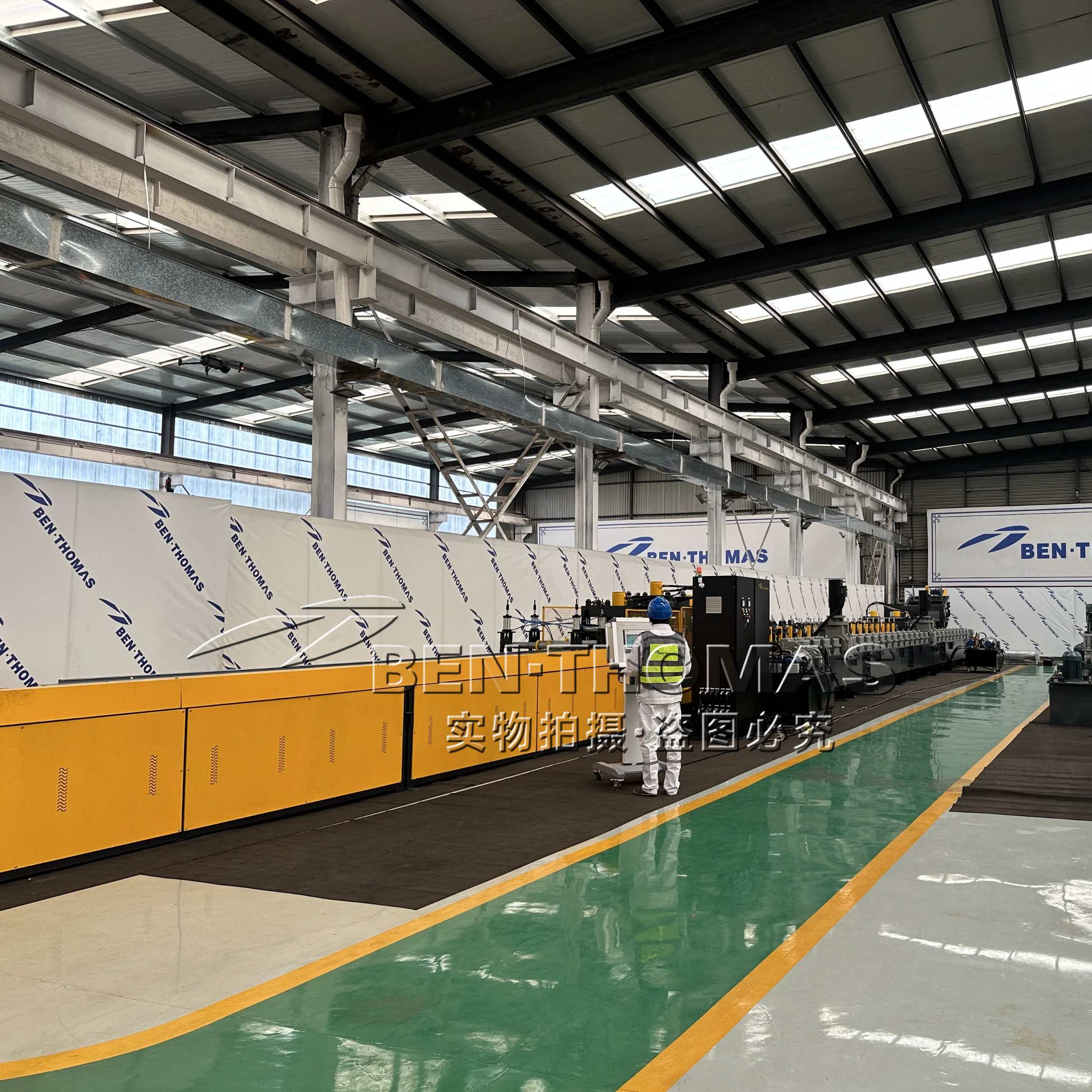

High Automation: These lines often include automatic stacking and material handling to minimize manual labor .

In short: It is the machine line that takes flat steel and turns it into the strong, vertical corner posts and frames that give electrical cabinets their structure and shape. This is distinct from the final assembly line, where components like breakers and wiring are installed into the finished frame
