Highway Guardrail Roll Forming Machine

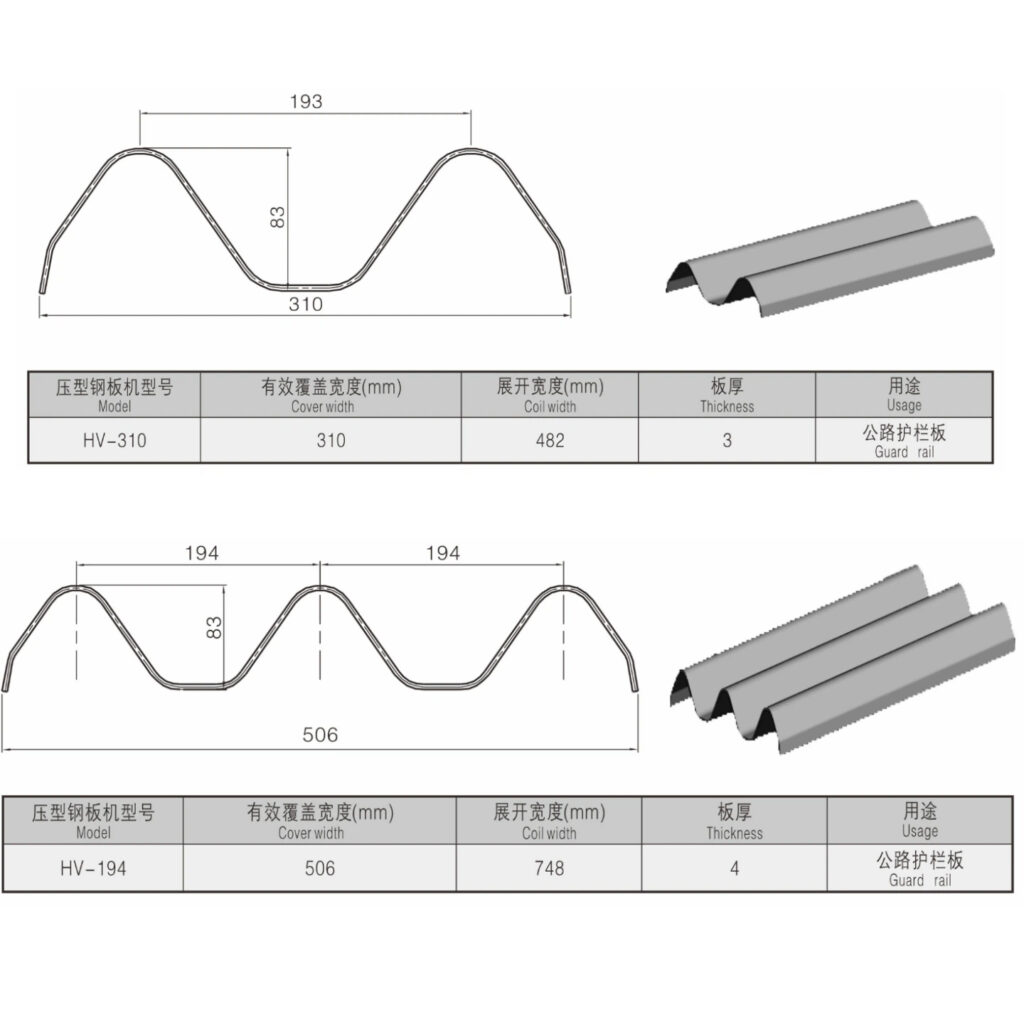

The Foundation of Roadway Safety In the global road construction industry, the highway guardrail is more than just a piece of metal; it is a life-saving barrier engineered to redirect vehicles and absorb impact energy. The highway guardrail roll forming machine is the sophisticated industrial system responsible for manufacturing these critical components. As global infrastructure expands and highway running speeds increase, the demand for high-strength, precision-engineered 2-wave (W-beam) and 3-wave (Thrie-beam) road barrier panels has reached an all-time high. These machines are designed to handle heavy-gauge galvanized steel, transforming raw coils into rigid safety profiles that meet rigorous international standards.

A Deep Dive into the Highway Guardrail Roll Forming Machine Components To maintain a stable working situation while processing high-tensile material, the production line is an integrated ecosystem of heavy-duty machinery:

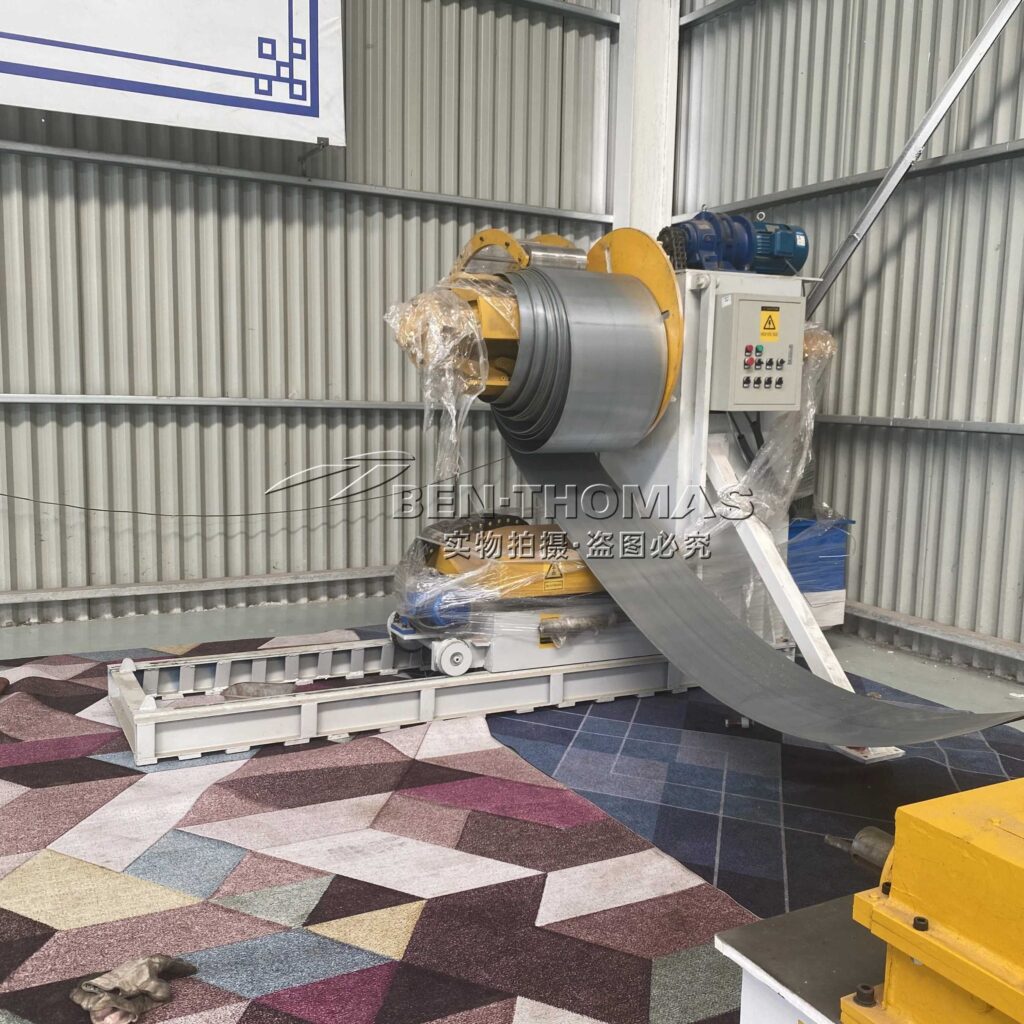

• The Decoiler (Uncoiler): This is the heavy-lift entry point. It must support steel coils weighing several tons, feeding the strip into the leveling system with constant tension to ensure the final guardrail remains perfectly straight without internal warping.

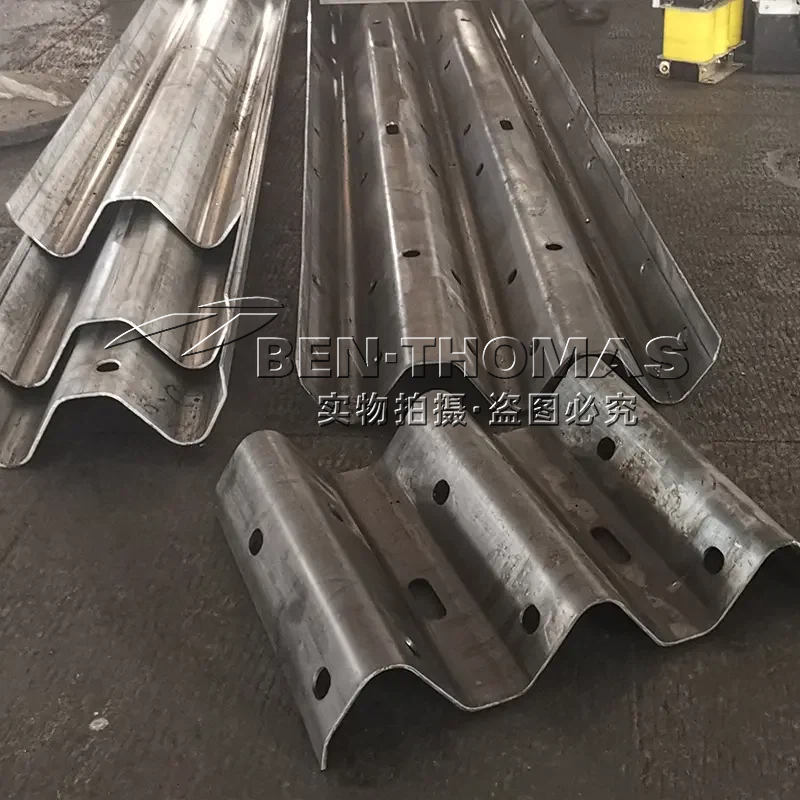

• Precise Hole Punching Unit: Mounting holes are the most critical part of a guardrail for on-site assembly. This unit utilizes high-tonnage hydraulic cylinders to perform precise hole punching as per client’s drawing. Whether the project requires a 2-slot or 4-slot pattern, the precision ensures that panels bolt together seamlessly on the highway.

• The Rollformer: Featuring 20 to 25 forming stations, this unit uses hardened alloy rollers to gradually shape the “waves.” This cold-bending process is superior to hot-rolling because it increases the yield strength of the steel, making the finished barrier tougher and more resilient to impact.

• Hydraulic Cutting System: Using a “stop-to-cut” or “flying-shear” method, this unit ensures each panel is cut to length based on need—typically 4.3 meters or custom lengths for specialized curves.

• Auto Stacker: In a high-speed environment, manual stacking is a bottleneck. The auto stacker uses magnetic or vacuum arms to neatly pile the heavy panels, readying them for the galvanizing bath or direct shipping.
