Cable Tray Roll Forming Machine
Cable Tray Roll Forming Machine is a fully automated production line that manufactures metal cable trays from steel or aluminum coils. Includes decoiler, leveling, punching & notching, progressive roll forming, hydraulic cutting, PLC control, and auto stacking. Ideal for efficient, high-precision cable tray production in electrical and industrial projects.
Contact: Elise
Tel:+86-155 3281 7581
Email: elise@tgrfm.cn
Description

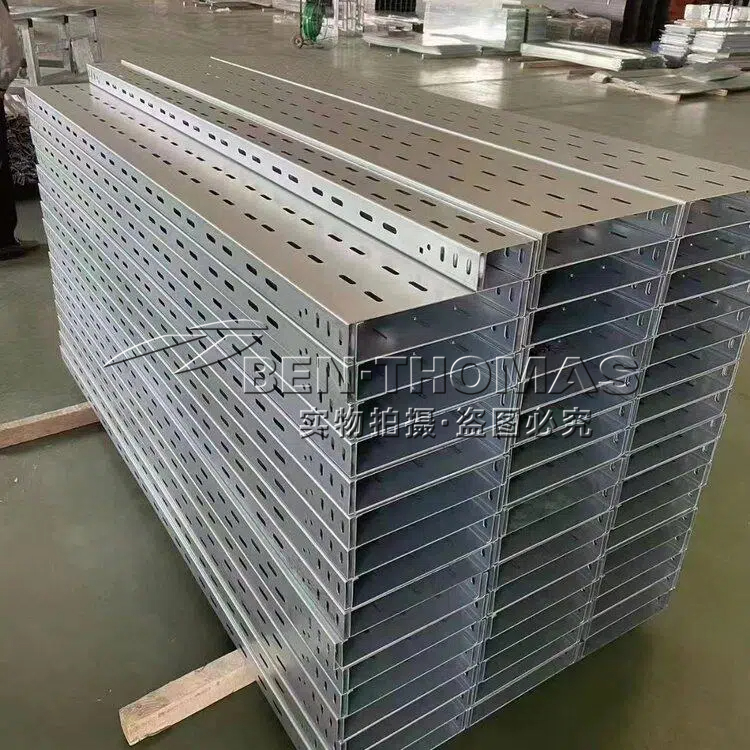

A Cable Tray Roll Forming Machine is a specialized automated production system that manufactures cable trays—the metal troughs or supports used to manage and protect electrical wiring in buildings, industrial facilities, and infrastructure projects .
Think of it as a high-efficiency factory line that takes flat steel or aluminum coils and continuously bends, punches, and cuts them into the rigid, channel-shaped profiles used to organize and route electrical cables safely.
Cable trays are alternatives to conduit systems for supporting insulated electrical cables. The line produces various tray sizes base on requirement ;
A cable tray roll forming line is an integrated system of sequential stations. Here’s the typical workflow:
| Stage | Function | Key Details |
| 1. Decoiling & Leveling | Holds and feeds the steel/aluminum coil, then flattens it for consistent forming | Handles coils up to 5-10 tons; hydraulic expansion for coil IDs around 508mm |
| 2. Punching & Notching & Cutting | Creates holes, slots, and shears continuous metal plate into pieces with exact lengths | Heavy punching press; can include side rail holes and rung slots |
| 3. Roll Forming | The core process where metal passes through progressive roller stations | Vairous forming stations; progressively bends side rails and profiles |
| 5. Control System | PLC with touchscreen manages entire process | Brands like Siemens, Mitsubishi, Omron; sets lengths, quantities, punching patterns |
| 6. Auto Stacking | Automatically collects finished products | Run-out tables with automatic counting and bundling |
In essence, a Cable Tray Roll Forming Line is the manufacturing backbone of electrical infrastructure—transforming flat metal coils into the organized pathways that safely route power and data cables through buildings and industrial facilities.
