In modern electrical and construction projects, efficient, organized cable management is non-negotiable—and the cable tray roll forming machine is the backbone of producing the metal components that make this possible. But what exactly is a Cable Tray Roll Former, and why is it essential for manufacturing cable management solutions? This article breaks down its definition, core components, key features, and critical role in producing metal cable trays, cable ladders, and other essential products used in cable trenches, power tunnels, and building structures worldwide.
At its core, a cable tray roll forming machine is a fully automated manufacturing system designed to produce metal cable trays, cable ladders, and similar profiles through a continuous, precision-driven cold roll forming process. These products are vital for organizing and protecting electrical cables, ensuring safe and efficient cable routing in both indoor and outdoor settings—from commercial buildings and industrial facilities to power plants and infrastructure projects. Unlike traditional manual or semi-automatic production methods, this machine streamlines the entire manufacturing process, delivering consistent, high-quality products at scale, making it indispensable for modern cable management manufacturing.

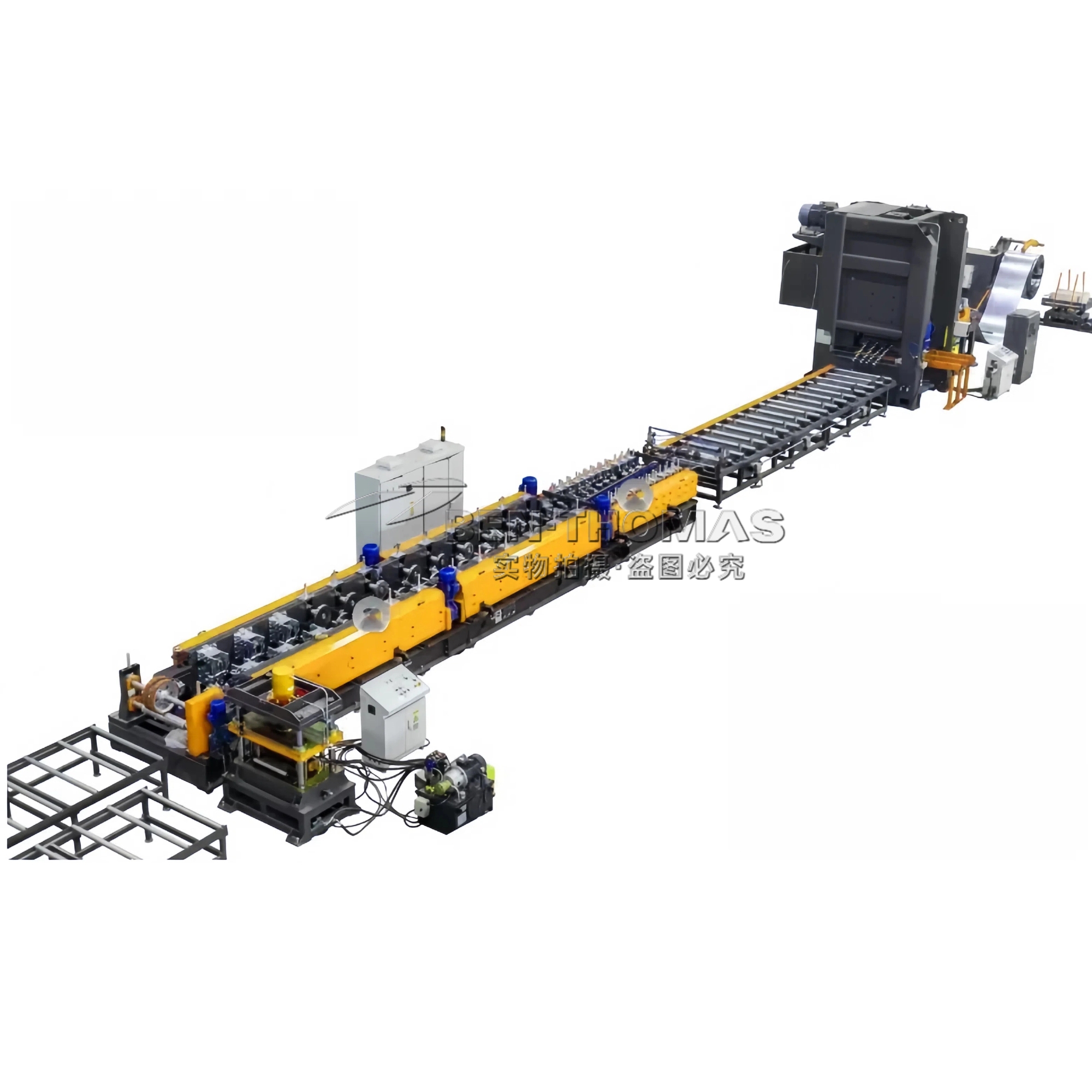

A high-quality cable tray roll forming machine is only as good as its components—and these machines are equipped with a complete set of advanced, high-efficiency components that work together seamlessly to deliver exceptional performance. Every cable tray roll forming production line consists of five core components: decoiler, press punching unit, pre-cutting system, roll former, and automatic stacker. Each component is precision-engineered and rigorously tested to ensure reliability, efficiency, and consistency—all controlled by an advanced PLC system that optimizes the entire production process.

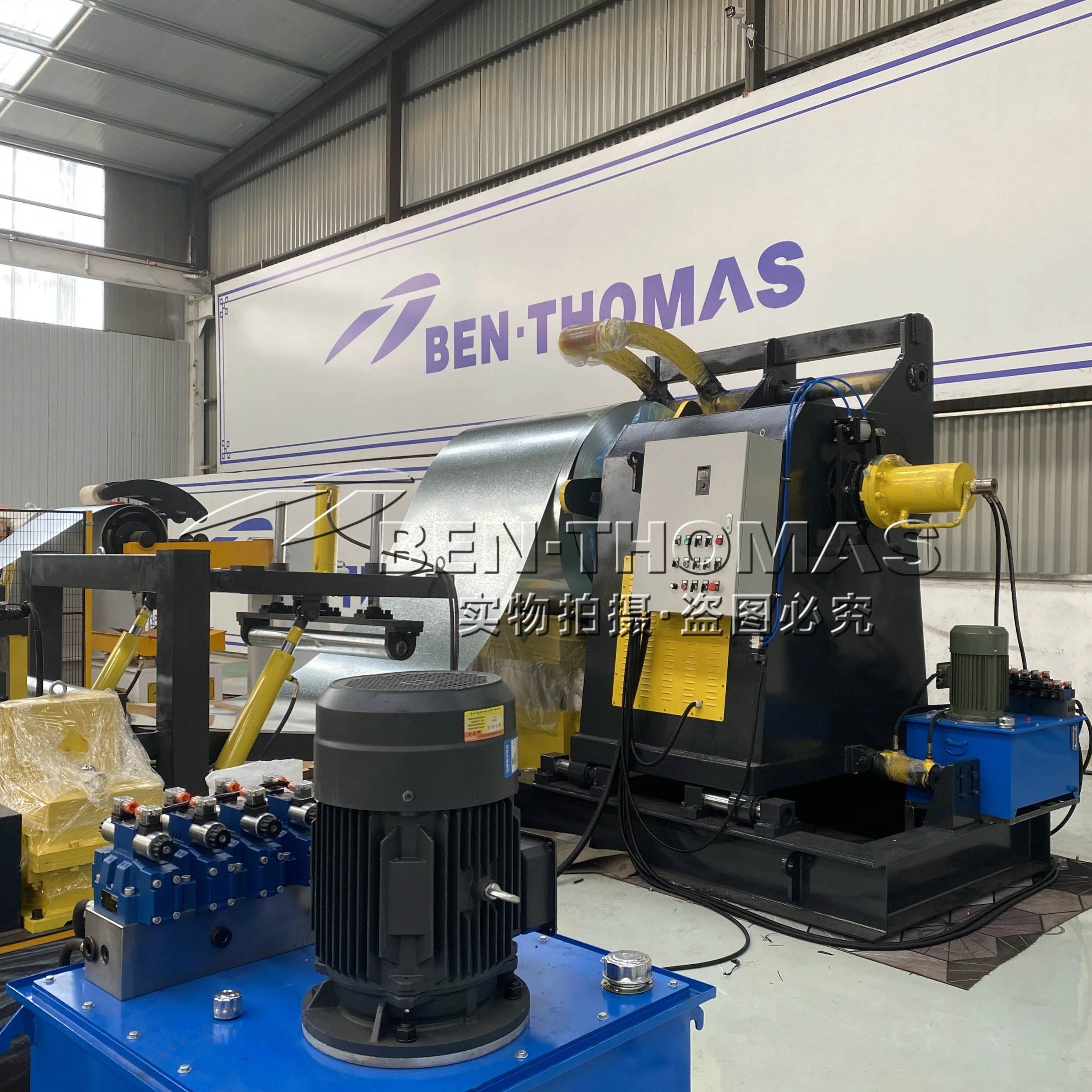

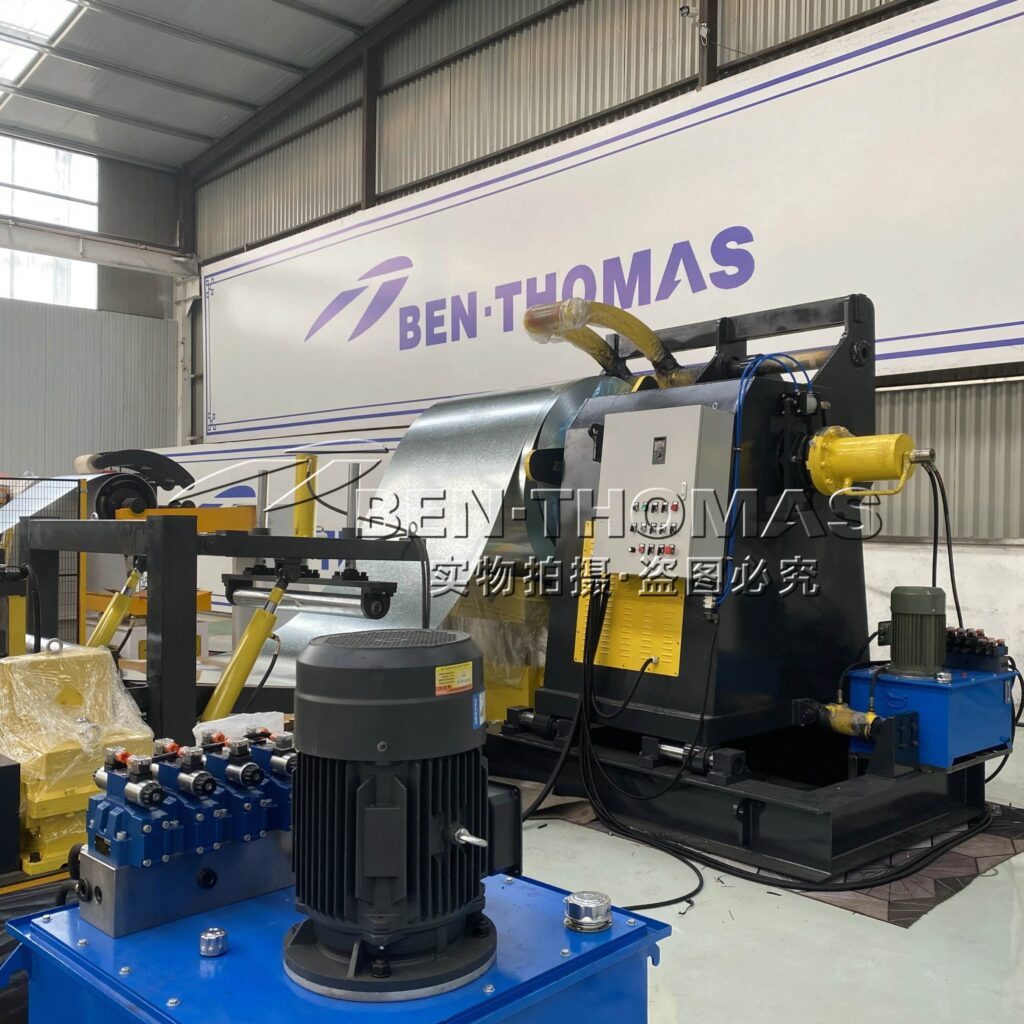

Let’s take a closer look at the key components and their roles in producing top-quality cable management products. The decoiler is the first component in the production line, designed to handle large, heavy metal coils (the raw material) with ease. This heavy-duty decoiler ensures smooth, consistent uncoiling, preventing material jams and reducing downtime. It features adjustable tension control, which allows for precise control over the metal sheet as it is fed into the next stage of production—critical for maintaining alignment and ensuring consistent press punching and roll forming, which are essential for cable tray functionality.

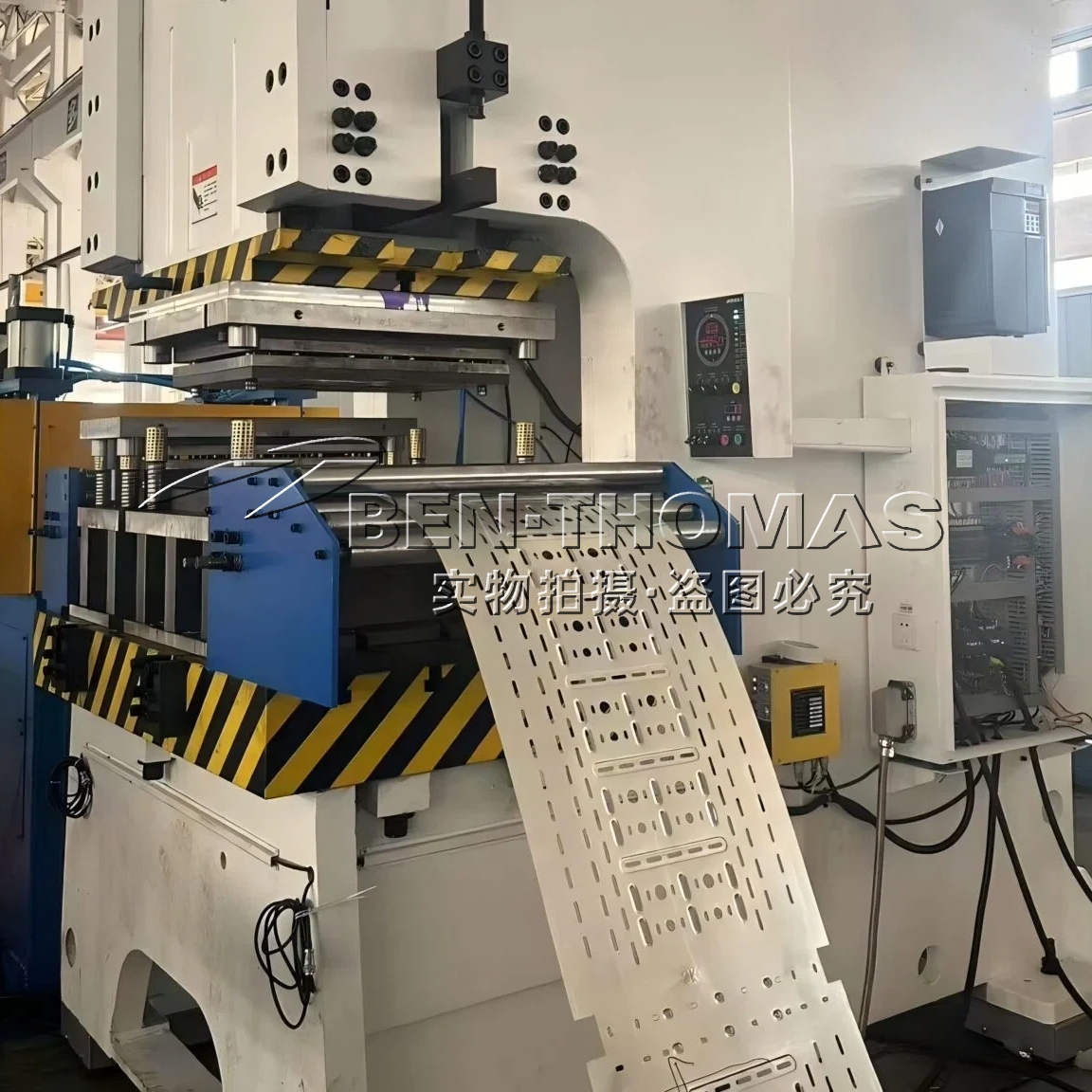

Next is the press punching unit, a critical component for producing functional cable trays and ladders. Cable trays and ladders require precise holes for mounting, cable ties, or drainage, and the press punching unit delivers these holes with pinpoint accuracy based entirely on the client’s drawing specifications. Equipped with high-quality punches and dies, this unit creates clean, precise holes even in thicker metal sheets, ensuring that every product meets the exact custom requirements of the project. The PLC controller governs the punching process, allowing operators to program custom hole positions, sizes, and spacing to match even the most detailed client designs—an essential feature for tailored cable management solutions.
Following the press punching unit is the pre-cutting system, which trims the metal sheet to the approximate length before it enters the roll former. This step optimizes the roll forming process, reducing material waste and ensuring that the metal sheet is perfectly sized for shaping into cable trays or ladders. The pre-cutting system operates at high speed, synchronized with the rest of the production line to maintain efficiency and avoid bottlenecks.

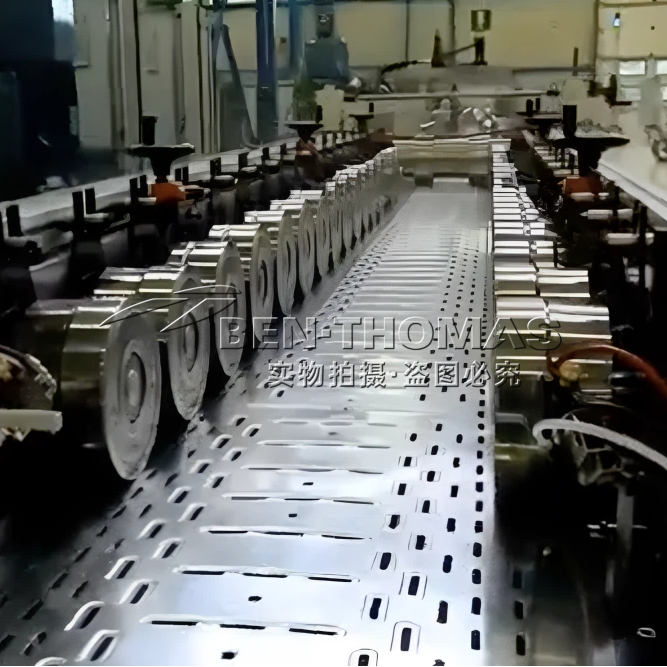

The roll former is the heart of the cable tray roll forming machine, responsible for shaping the pre-punched and pre-cut metal sheet into the desired cable tray or cable ladder profile. This unit features a series of precision-engineered rollers that gradually bend the metal sheet into the required shape—whether a closed cable tray, open cable ladder, or custom profile. The rollers are made of hardened steel, ensuring durability and long service life, even when processing metal sheets of varying thicknesses. The PLC controller monitors the roll forming process in real time, making adjustments to ensure uniform dimensions, smooth surfaces, and consistent structural integrity—critical for cable trays and ladders that must support the weight of multiple cables.
Finally, the automatic stacker system completes the production process by neatly arranging the finished cable trays, cable ladders, or other profiles. This eliminates the need for manual stacking, reducing labor costs and minimizing the risk of damage to the finished products. The stacker system is adjustable, allowing it to handle different sizes and types of cable management products, making them ready for packaging and transportation to job sites.
What sets this production line apart is its high working speed, high precision, and high degree of automation. Operating at impressive speeds, the machine enables continuous production of large quantities of cable trays and ladders—either of identical specifications or with quick switches between preset programs to accommodate different client needs. This flexibility is invaluable for manufacturers handling multiple projects with varying requirements. Additionally, the machine’s precision ensures that every product meets strict industry standards, while its automation reduces human error and maximizes productivity.

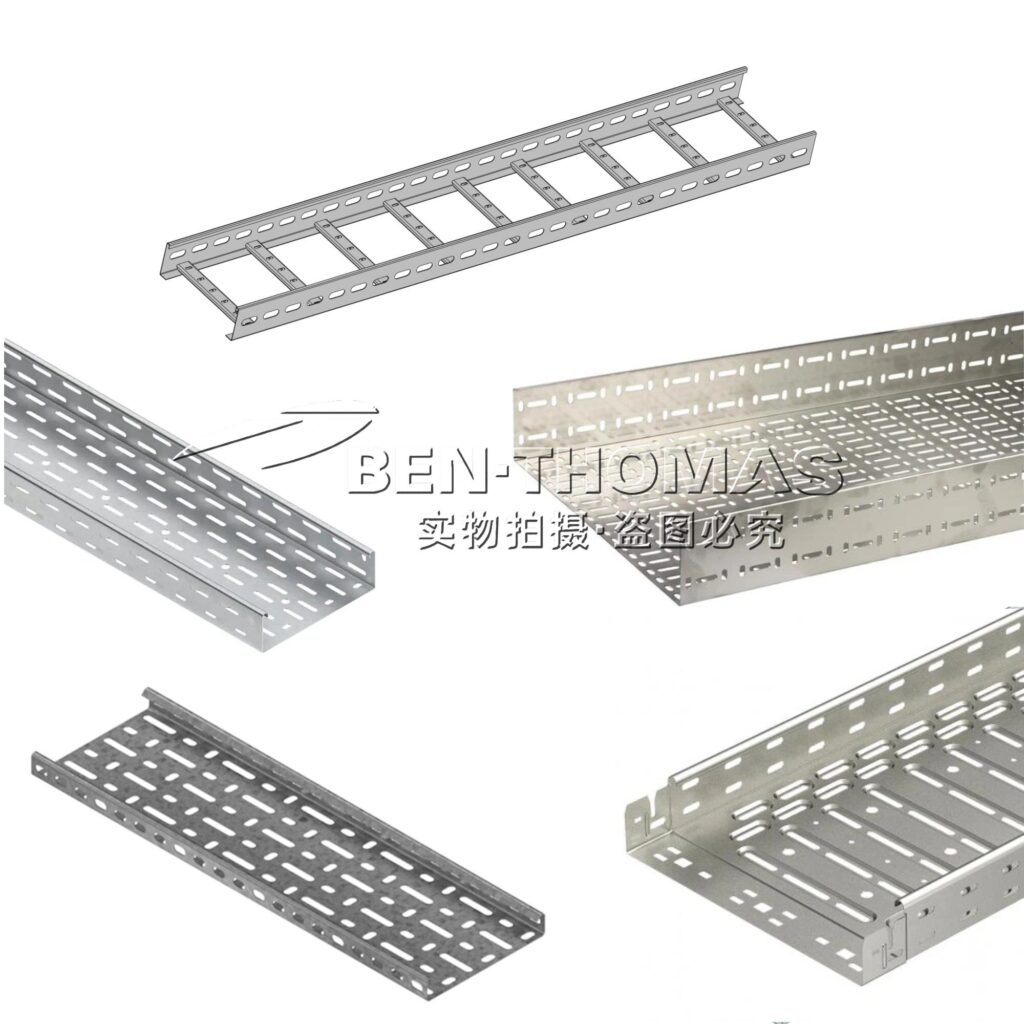

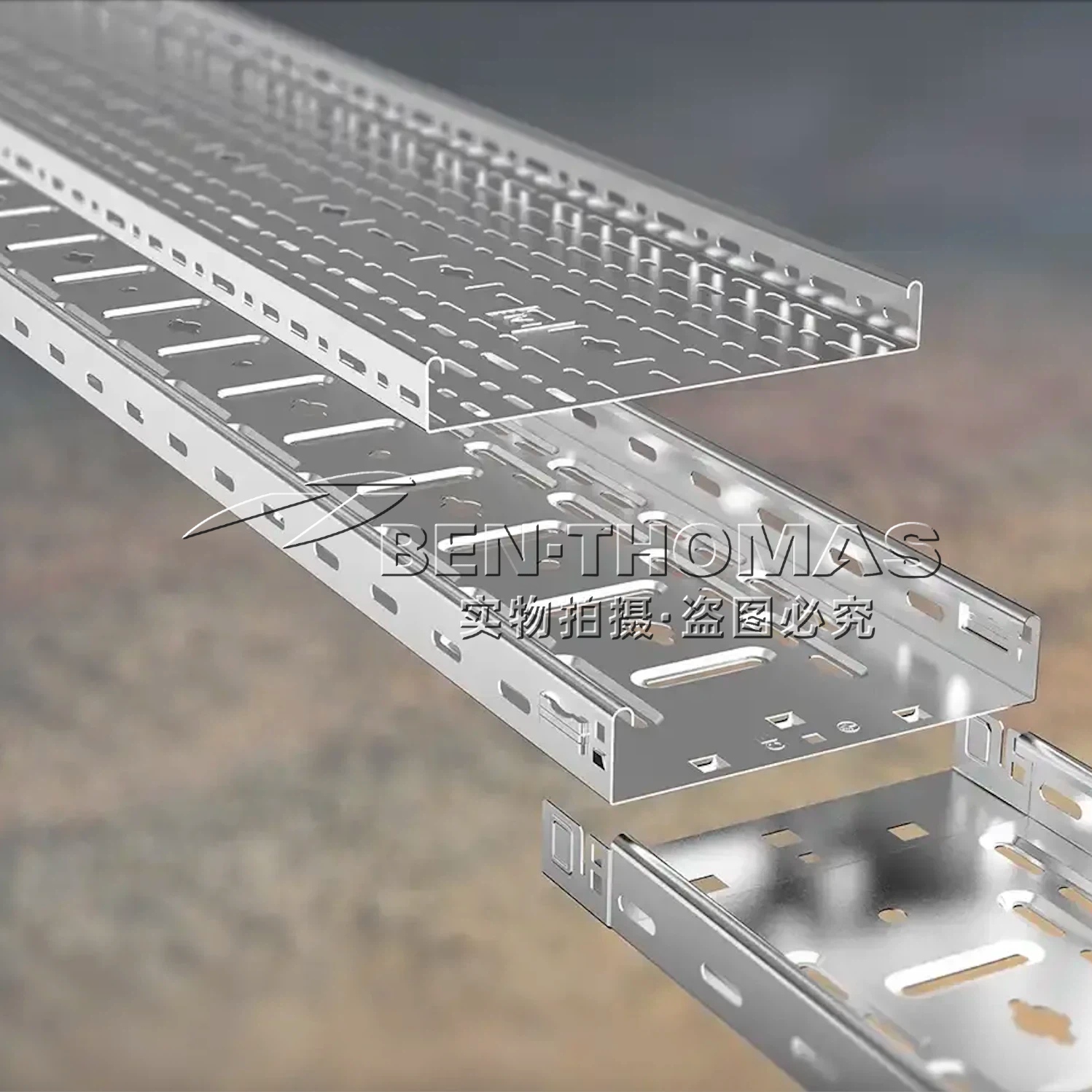

The products produced by a cable tray roll forming machine—cable trays, cable ladders, and related profiles—are commonly used in a wide range of applications. They are installed in cable trenches to protect underground cables, in power tunnels to organize high-voltage cables, and on indoor and outdoor building walls and columns to route electrical and communication cables safely. These products ensure that cables are organized, protected from damage, and easily accessible for maintenance, making them essential for any project that requires reliable cable management.
In summary, a cable tray roll forming machine is a fully automated, high-precision manufacturing system that produces the essential metal cable management products needed for modern construction and electrical projects. Its core components work in harmony to deliver consistent, custom-made cable trays and ladders, while its speed and automation make it a cornerstone of efficient cable management manufacturing. Whether for commercial, industrial, or infrastructure projects, this machine is the key to producing high-quality, reliable cable management solutions.
