Metal Scaffold Plank Forming Equipment

For manufacturers serving the construction, bridge engineering, and shipbuilding industries, the ability to produce steel scaffolding planks efficiently is directly tied to profitability. The Metal Scaffolding Plank Roll Forming Machine is a cold-bending roll forming machine for steel scaffolding that delivers exceptional return on investment through high-speed operation, minimal waste, and reduced labor requirements.

The Economics of Automation

Traditional methods of producing scaffolding planks often involve multiple discrete processes: coil slitting, separate punching operations, press brake forming, and manual stacking. Each step requires separate equipment, additional labor, and material handling—all of which introduce inefficiencies and potential quality issues.

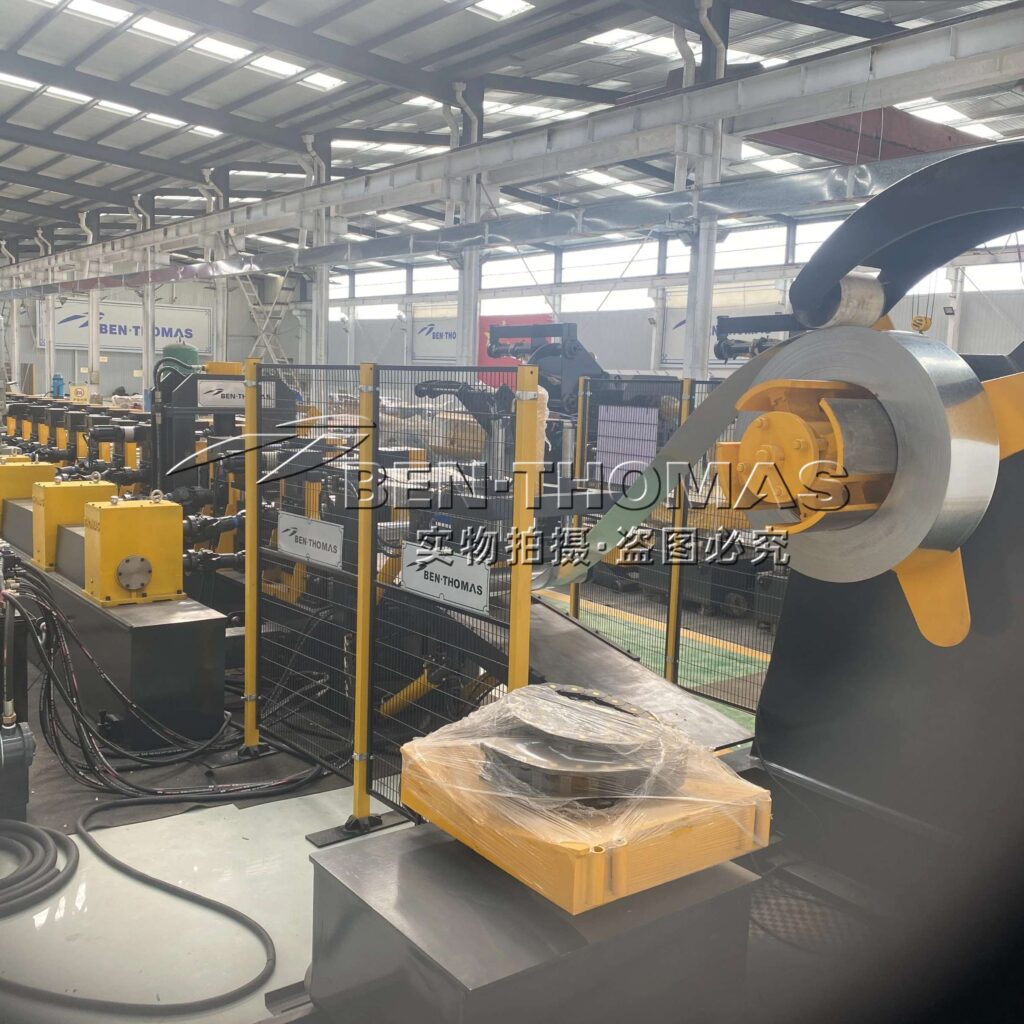

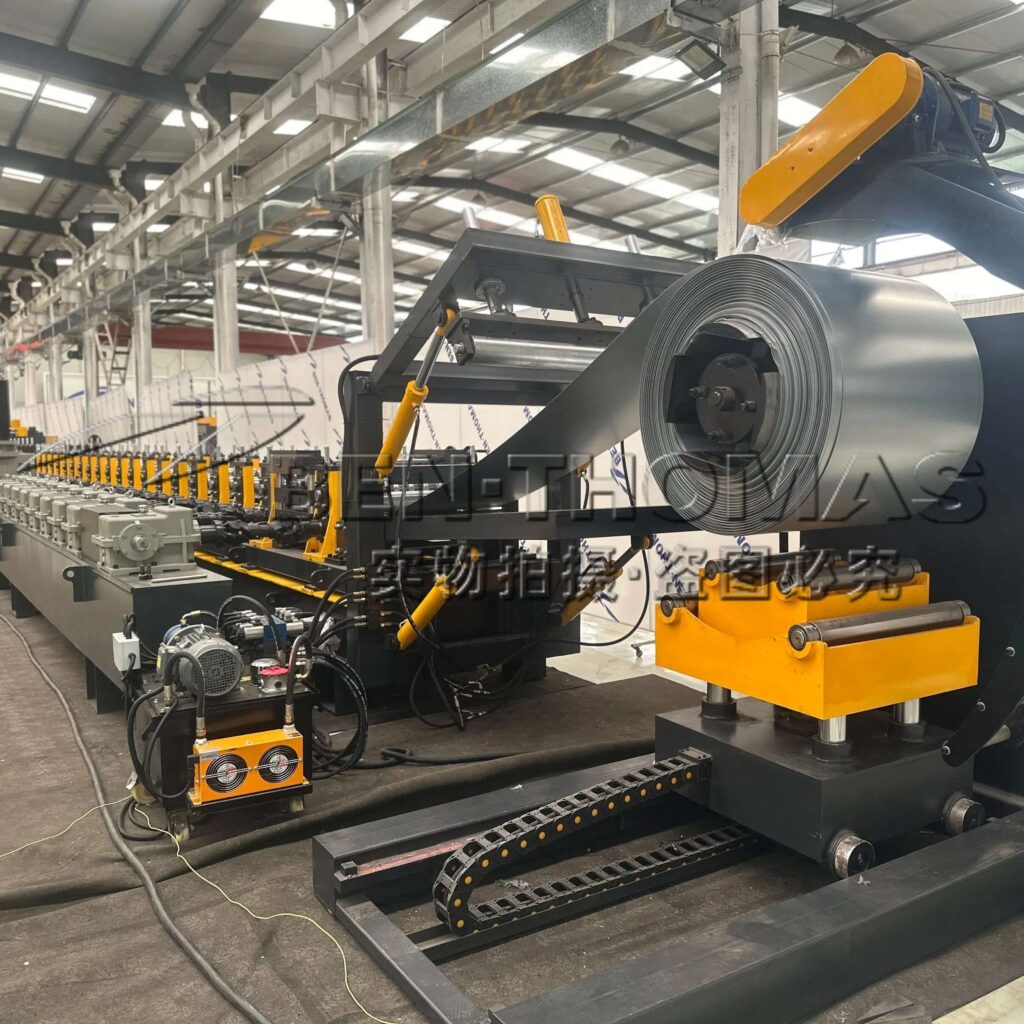

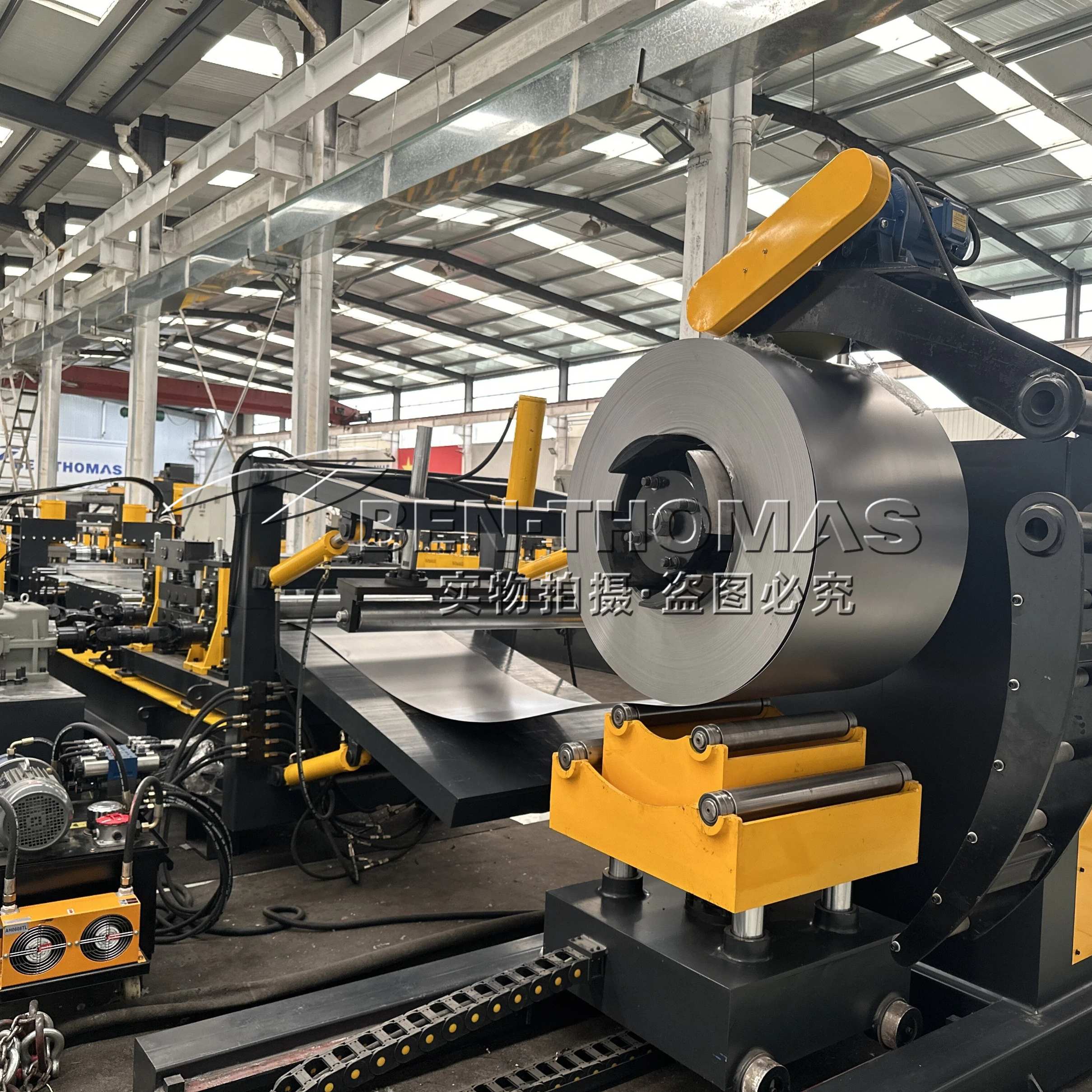

The integrated Metal Scaffold Plank Forming Equipment consolidates these processes into a single, continuous flow:

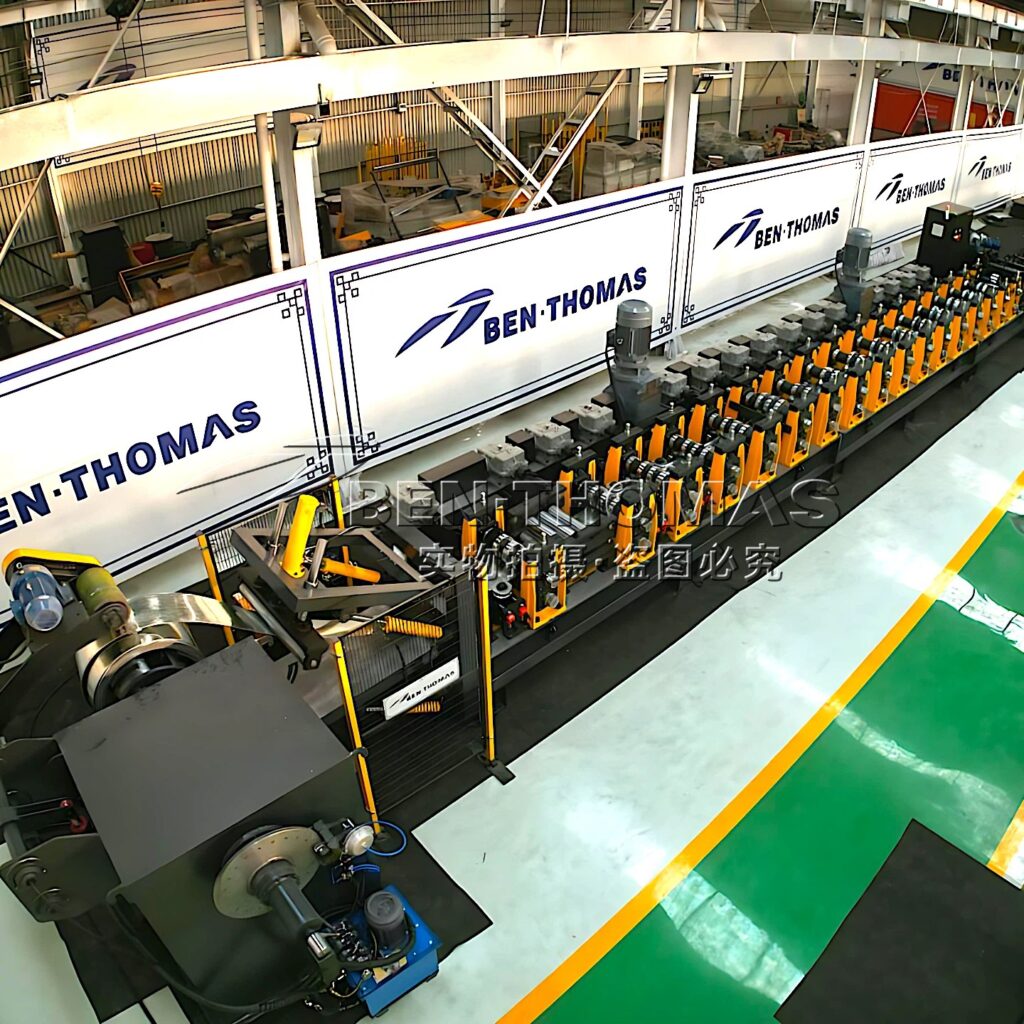

High Working Speed Drives Output

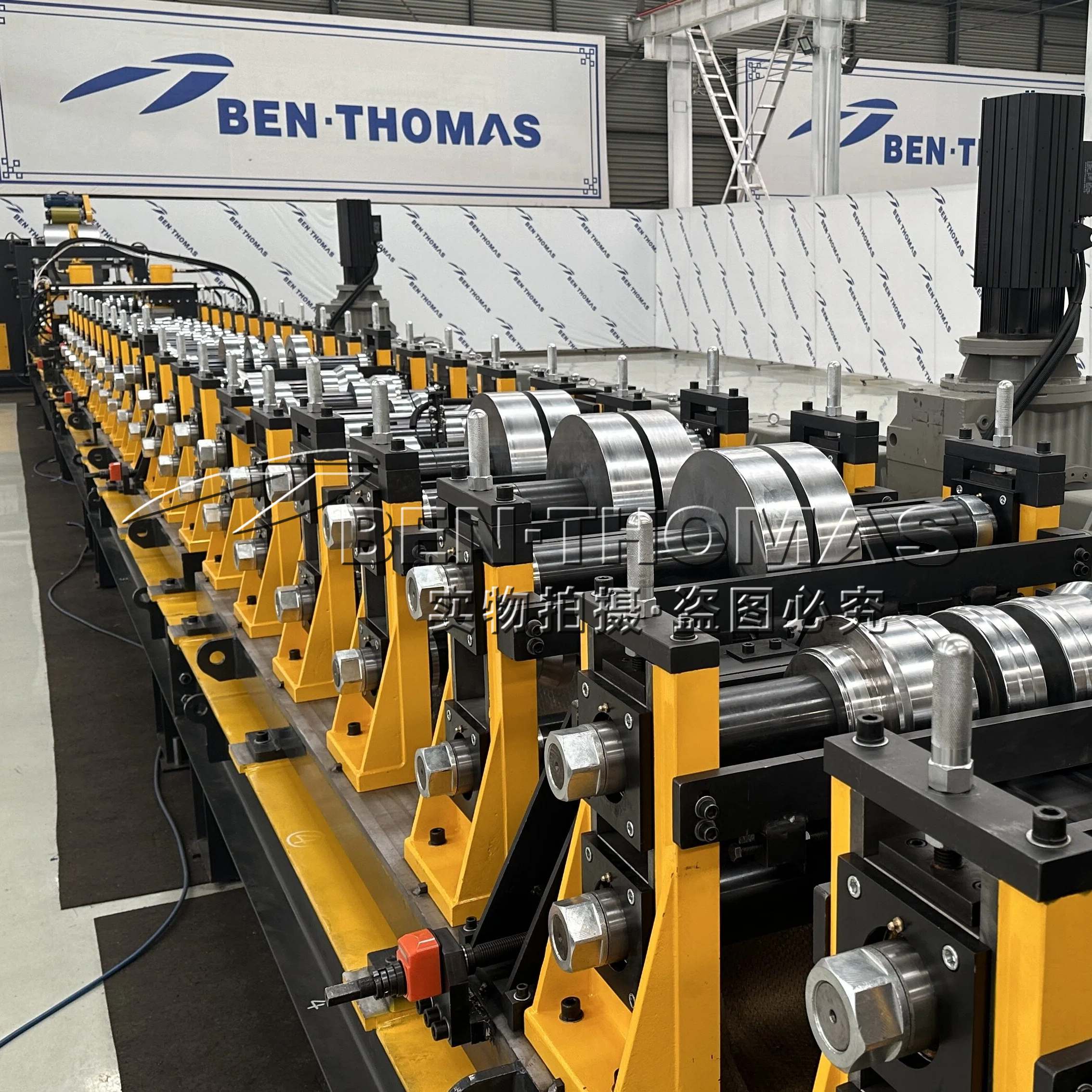

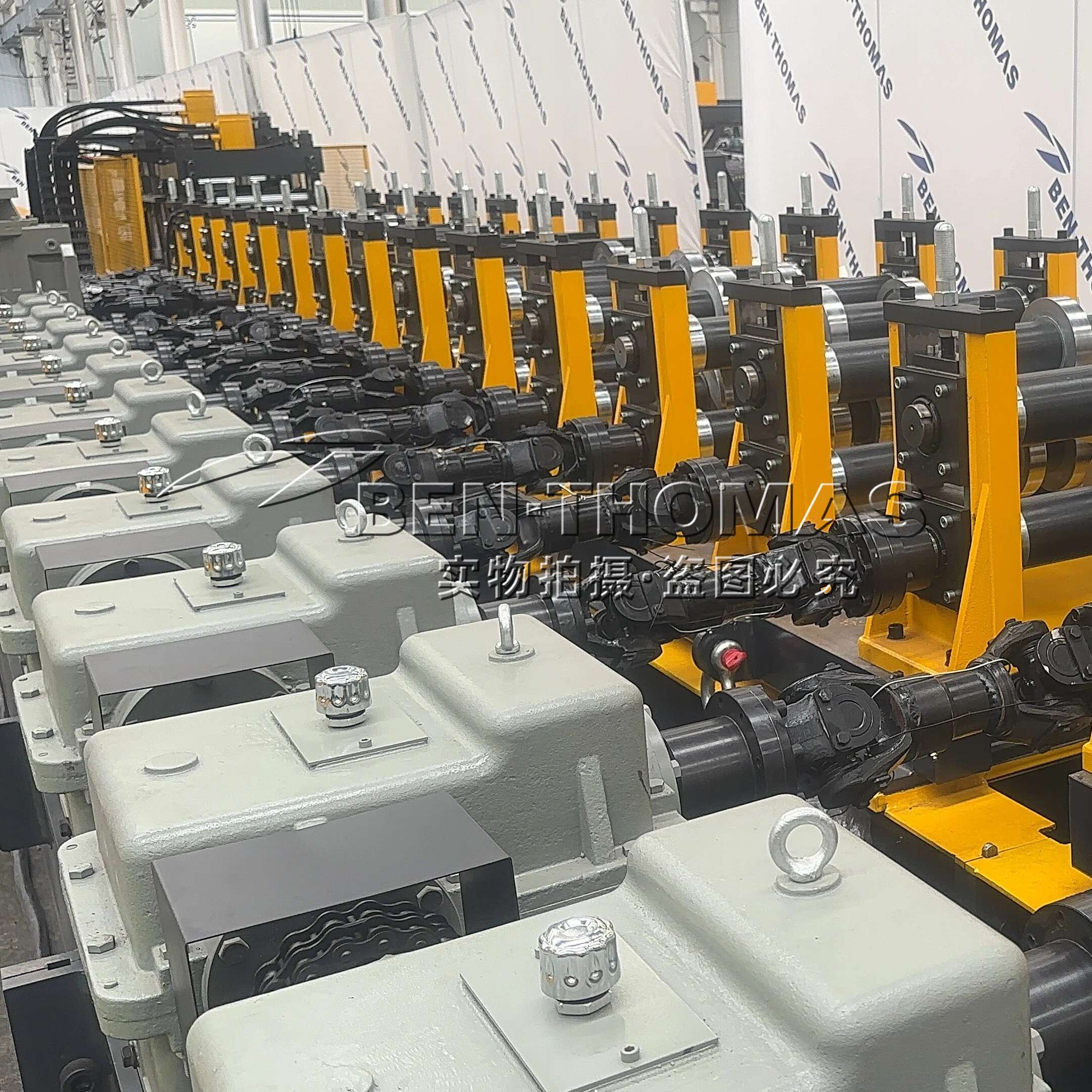

The rollformer operates continuously, allowing for production speeds that far exceed batch processing methods. With typical line speeds of 10–20 meters per minute, a single shift can produce thousands of linear feet of scaffolding plank.

This high working speed translates directly into:

• Shorter lead times for customer orders

• Lower cost per unit through economies of scale

• Greater production capacity without additional floor space

Precision Punching Reduces Waste

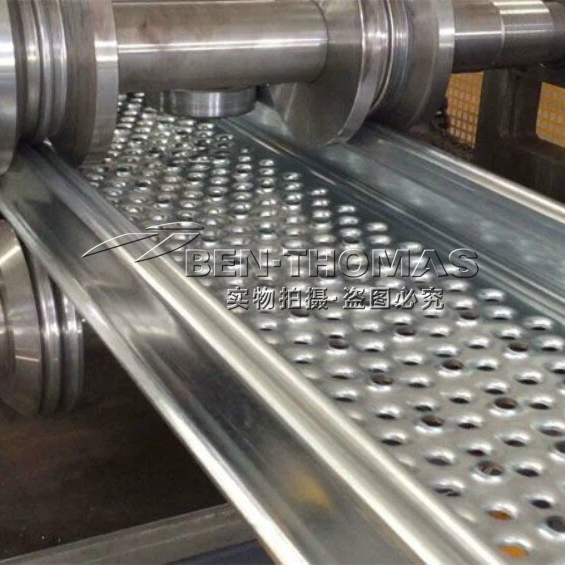

The press punching unit is integrated directly into the line, performing all necessary perforations and cutouts before the metal enters the rollformer. This approach offers several advantages:

• Material optimization – punching is done on flat strip, minimizing scrap

• Consistent hole placement – every plank is identical to the last

• Reduced secondary operations – no need for post-forming drilling or punching

Because the punching is based on client’s drawings, manufacturers can confidently produce custom orders without the risk of errors that would result in costly rework.

Hydraulic Cutting for Clean Finishes

The hydraulic cutting unit ensures that each plank is cut to the exact specified length with clean, square edges. This is particularly important for scaffolding planks, which must fit precisely into scaffolding frames and locking mechanisms. Hydraulic cutting also extends tool life compared to mechanical shear systems.

Auto Stacker for Labor Savings

The auto stacker represents one of the most significant labor-saving features of the production line. After cutting, finished planks are automatically:

• Conveyed to the stacking area

• Counted and sorted

• Stacked in neat, stable piles

• Ready for strapping and shipment

This eliminates the need for dedicated stacking personnel, reduces the risk of back injuries associated with manual handling, and ensures that finished products are not damaged during the packaging process.

Flexible Production for Diverse Markets

The construction industry demands a wide variety of scaffolding plank specifications. This production line is designed for flexibility, allowing manufacturers to:

• Produce identical specifications continuously for large-scale projects

• Switch specifications according to a preset program for smaller, custom orders

• Accommodate different material thicknesses (typically 1.0mm–2.5mm)

• Adjust plank lengths from 1.0m to 4.0m or more

Applications

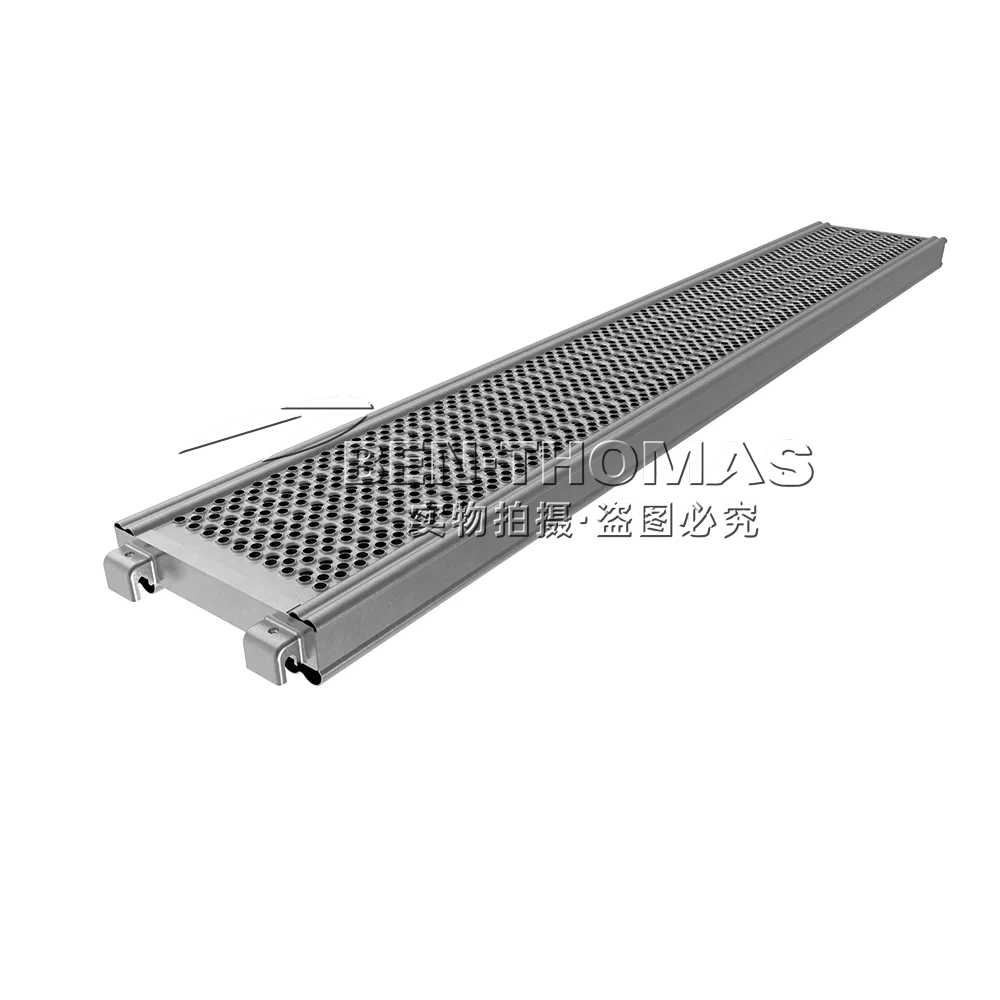

The metal scaffolding planks produced by this machine are essential for:

• Building construction – safe, reliable walking surfaces for workers at height

• Bridge engineering – heavy-duty platforms capable of supporting construction materials

• Shipbuilding – corrosion-resistant planks for marine environments

• Industrial maintenance – access platforms in power plants, refineries, and factories

Conclusion

The Metal Scaffolding Plank Roll Forming Machine is a high-performance production solution that combines speed, precision, and automation. With integrated decoiling, press punching, rollforming, hydraulic cutting, and auto stacking, this cold-bending roll forming machine for steel scaffolding enables manufacturers to produce high-quality steel scaffolding planks efficiently and cost-effectively. Whether for large-scale construction projects or custom orders, this production line delivers the flexibility and output needed to succeed in today’s competitive market.
