A Scaffolding Plank Roll Forming Line is a fully automated production system that manufactures metal walking platforms—known as scaffolding planks or walkboards—used in construction to provide safe working surfaces at elevated heights . These machines transform flat steel coils into finished, structurally sound planks through a continuous cold roll forming process .
Scaffolding planks are the horizontal platforms that workers stand on when erecting scaffolding systems. Unlike traditional wooden planks, roll-formed steel planks offer key advantages :
-
No water absorption – won’t become heavy or slippery when wet
-
Superior durability – longer service life than timber
-
Consistent quality – precision-formed with integrated safety features
The finished planks typically include anti-slip perforations (holes punched through the surface) for worker safety and drainage .
A complete scaffolding plank roll forming line integrates several sequential stations working in harmony. Here’s the typical workflow based on multiple manufacturer specifications :
| Stage | Function | Key Details |
|---|---|---|

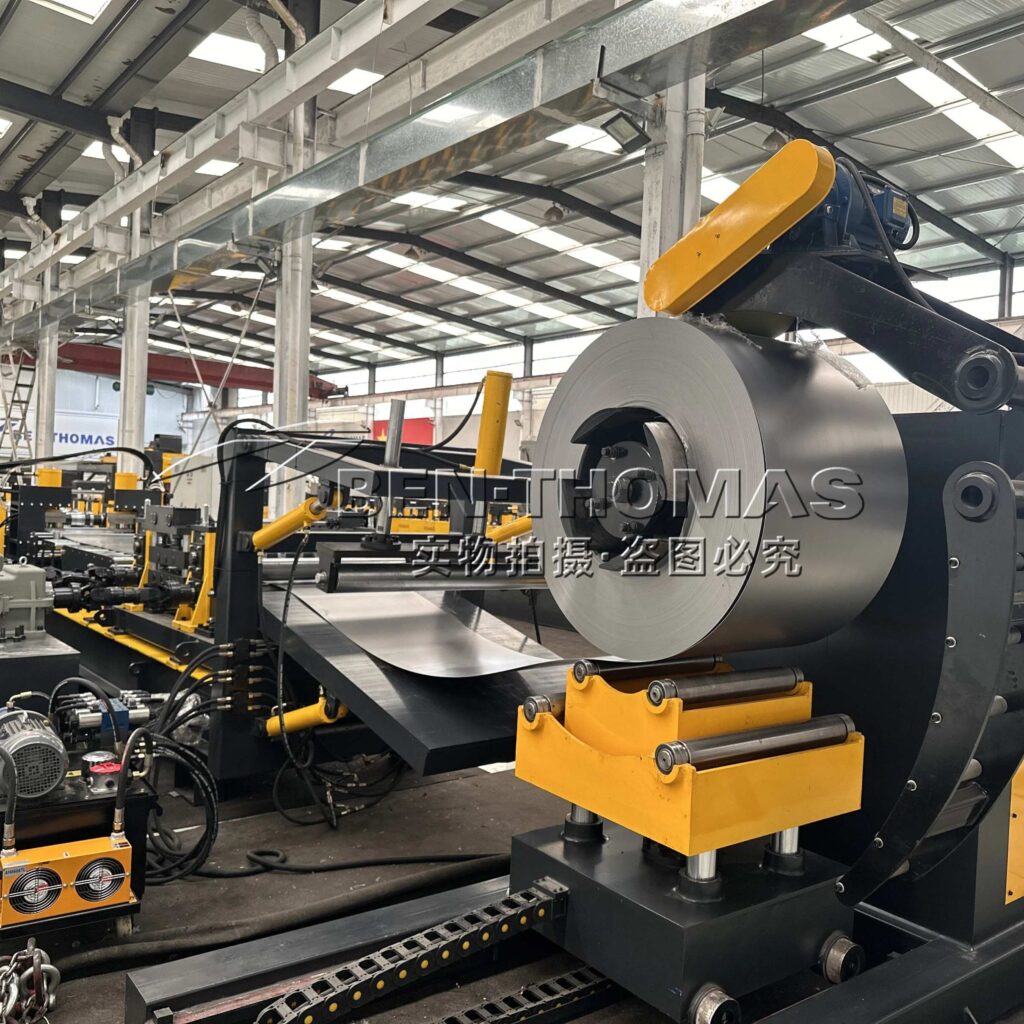

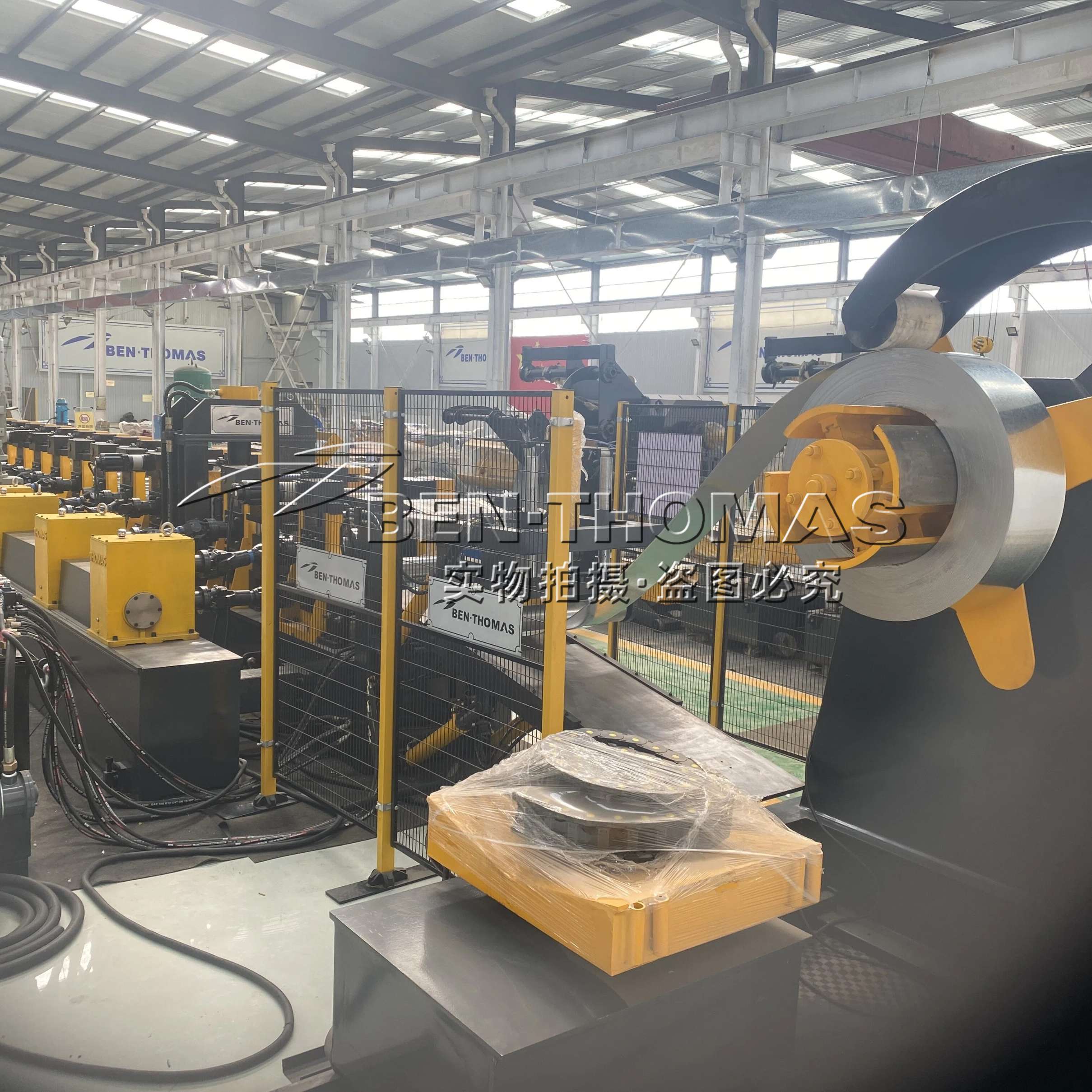

| 1. Decoiling | Holds and feeds the steel coil into the line | Passive or hydraulic decoiler; capacity 10 tons; |
| 2. Leveling | Flattens the strip for consistent forming | Five-roller leveler; ensures material is perfectly flat before processing |
| 3. Punching | Creates anti-slip holes and edge notches | Hydraulic or servo-driven punch press; high-precision dies |
| 4. Feeding | Precisely advances material for punching accuracy | Servo feeder with ±0.02mm precision; programmable via touchscreen |

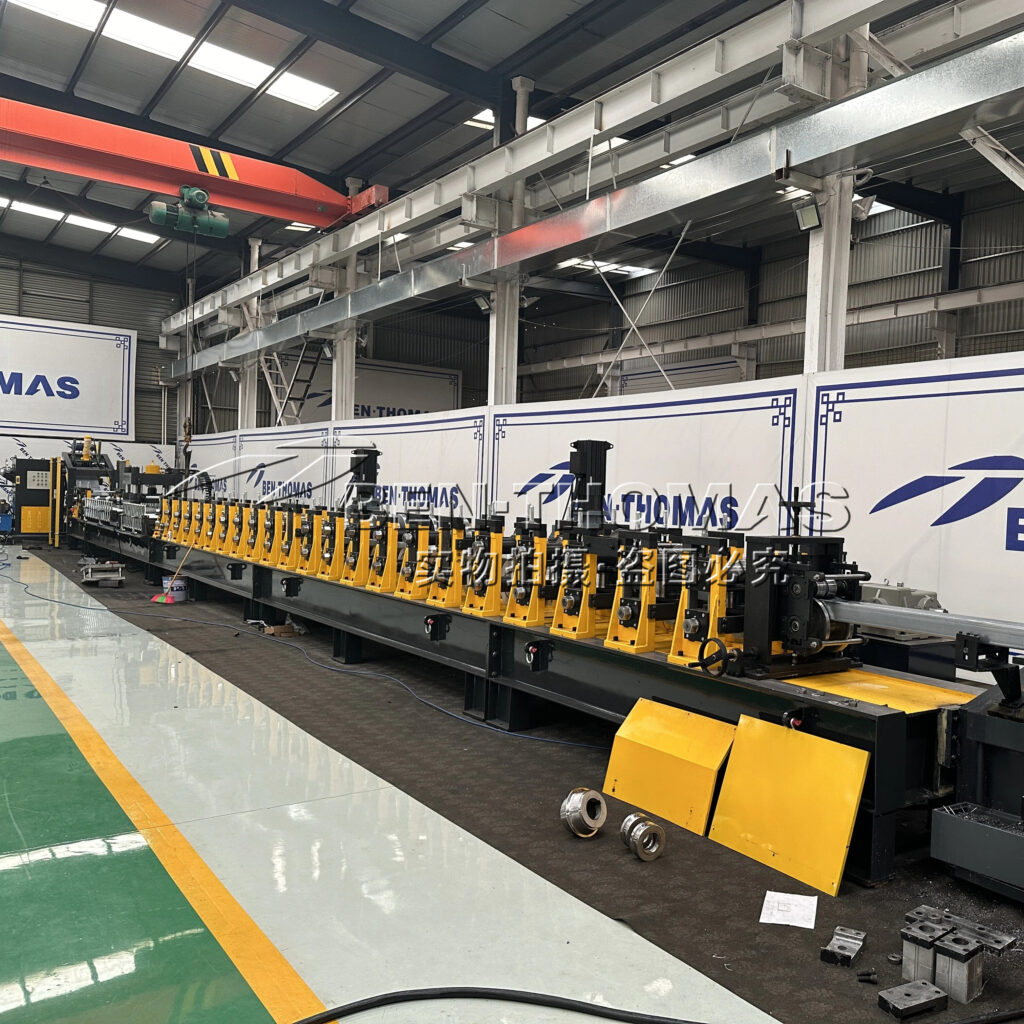

| 5. Roll Forming | The core process—progressive bending through rollers | 16–28 forming stations; rollers of GCr15 steel (hardened to HRC 58–62°) |
| 6. Cutting | Shears finished planks to exact length | Hydraulic flying or post-cutting; length tolerance ±1mm |
| 7. Control System | Manages entire production sequence | PLC with touchscreen (brands like Siemens, Mitsubishi, Panasonic); stores multiple programs |
| 8. Stacking | Collects finished products | Manual or automatic collection tables |
Key Features Across Models
-
PLC automation – reduces human error by up to 40% compared to manual systems
-
Adjustable rollers – enables quick profile changes without downtime
-
CE certification – ensures compliance with EU safety standards
-
Remote monitoring – smart diagnostics for predictive maintenance
In essence, a Scaffolding Plank Roll Forming Line is the manufacturing backbone of modern construction safety equipment—transforming flat steel coils into the durable, slip-resistant walkways that protect workers at height on job sites worldwide.
