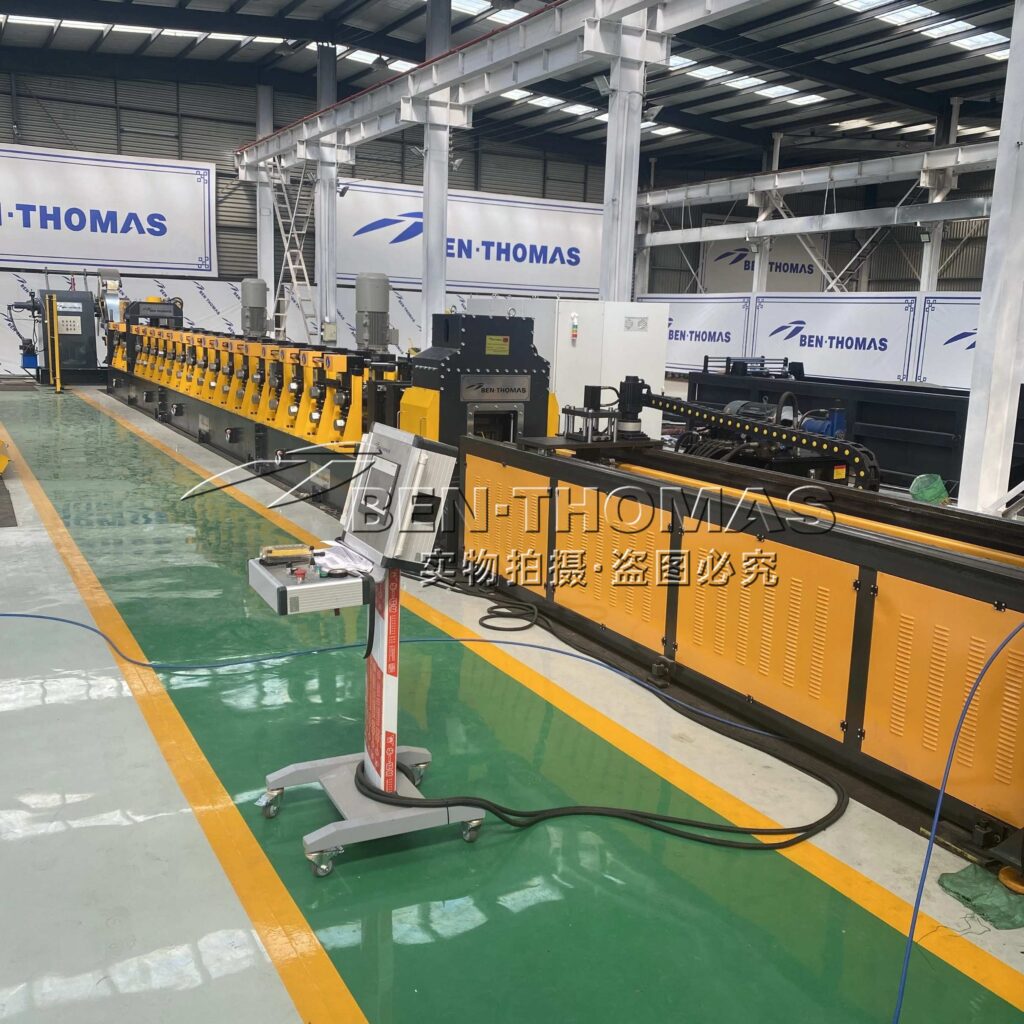

C U Omega Roll Forming Machine

In the world of metal profile manufacturing, speed directly translates to throughput, profitability, and the ability to win large-volume contracts. A C U Omega Roll Forming Machine capable of sustained speeds exceeding 50 meters per minute represents the gold standard for efficient production.

This article explores how modern roll forming lines achieve such high speeds while maintaining the precision required for structural applications, and why this capability is essential for manufacturers serving the construction industry and beyond.

The Speed Advantage: Why 50+ m/min Matters

For manufacturers producing C and U purlins for construction projects, speed is a competitive differentiator. A production line running at over 50 m/min can produce:

• More than 3,000 meters of profile per hour

• Hundreds of tons per shift, depending on material thickness and profile size

This throughput allows manufacturers to:

• Bid confidently on large-scale projects with tight deadlines

• Reduce per-unit production costs through higher efficiency

• Respond quickly to customer orders without excessive lead times

How High Speed Is Achieved

Achieving and sustaining speeds above 50 m/min requires careful integration of all line components. Each element must be designed for high-speed operation without compromising quality.

1. Heavy-Duty Decoiler with Controlled Tension

At high speeds, consistent material feeding is critical. The decoiler must provide:

• Stable tension control to prevent material snaking or jerking

• Rapid coil loading to minimize downtime between coil changes

• Capacity for large coils (10 tons or more) to sustain long production runs

2. Precision Punching Synchronized with Line Speed

The punching system must operate in perfect synchronization with the roll former. Servo-driven punching units:

• Can perform hundreds of strokes per minute

• Maintain hole position accuracy even at maximum line speed

• Support both pre-punching (on flat strip) and post-punching (on formed profile) configurations

Pre-punching is typically preferred for high-speed operations because it allows for faster punching rates on flat material.

3. Roll Former with High-Speed Capability

The roll former itself must be engineered for high-speed operation:

• Hardened rollers resist wear at high linear speeds

• Precision bearings and gears ensure smooth, vibration-free operation

• Lubrication systems maintain performance during extended high-speed runs

The machine must also handle material thicknesses up to 5mm without sacrificing speed or profile quality.

4. Hydraulic Cutting with Flying Shear Capability

At speeds exceeding 50 m/min, stopping the line for cutting is not feasible. The hydraulic cutting system must operate as a flying shear, meaning it:

• Moves with the profile during the cutting cycle

• Cuts without stopping the material flow

• Returns to its starting position for the next cut

This capability ensures continuous high-speed production with accurate cut lengths.

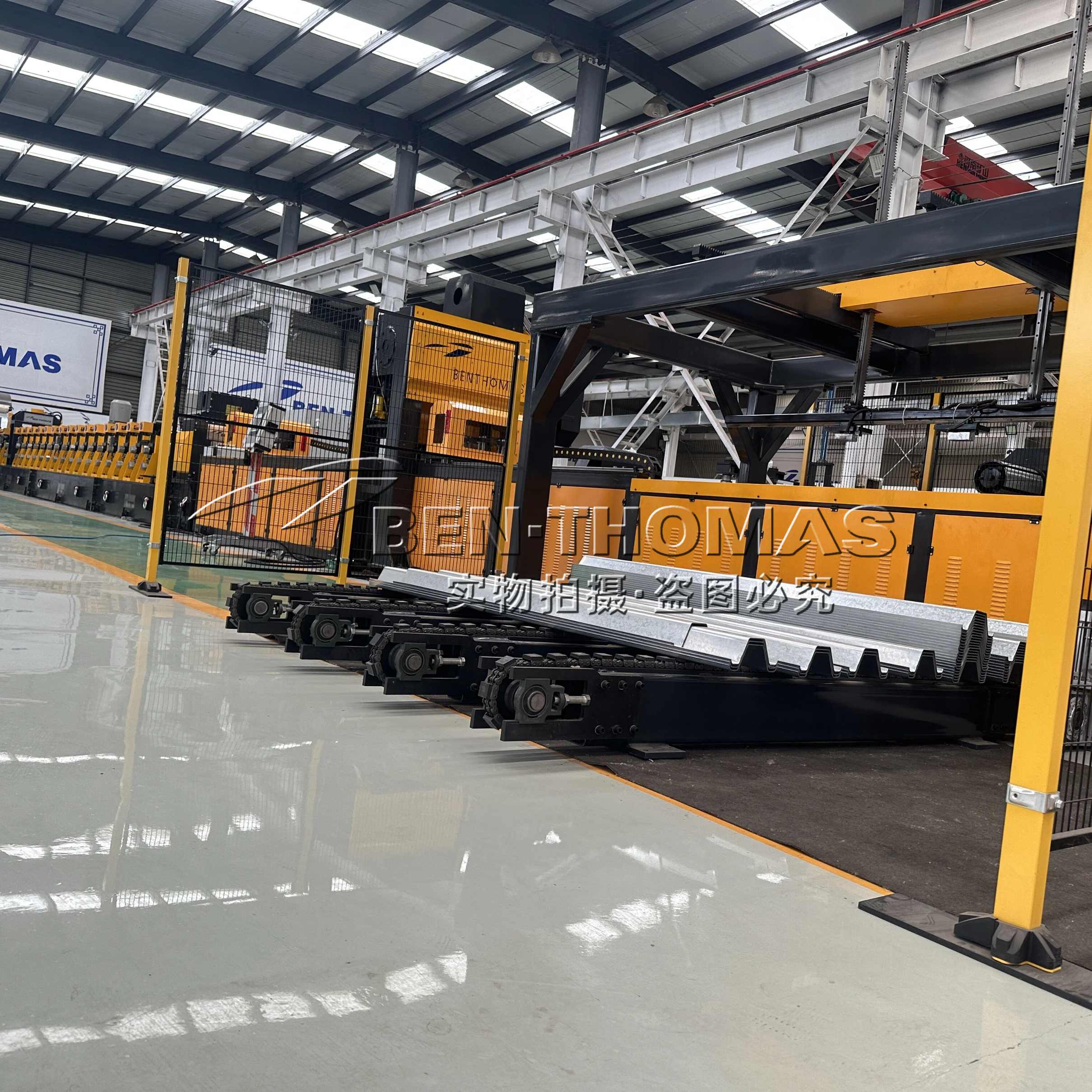

5. Automatic Stacker with High-Speed Synchronization

The automatic stacker system must keep pace with the output rate. Features required for high-speed stacking include:

• Rapid arm rotation to catch profiles as they exit the cutter

• Layered stacking with automatic counting

• Integration with the cutting system to ensure no profiles are missed

Balancing Speed with Precision

High speed is valuable only if precision is maintained. A modern C/U purlin production line achieves both through:

• PLC control: Centralized control that synchronizes all components and stores preset programs for rapid changeovers

• Servo-driven systems: Precise control over punching and cutting operations

• In-line quality monitoring: Sensors that detect deviations and trigger adjustments in real time

This combination of speed and precision allows manufacturers to produce large quantities of profiles—either of identical specifications or with specifications switched according to a preset program—without compromising quality.

Applications Requiring High-Speed Production

Several industries benefit directly from high-speed C/U purlin production:

Conclusion

A C/U purlin roll forming machine capable of over 50 m/min production speed is a powerful asset for any manufacturer. By integrating a heavy-duty decoiler, high-speed punching, a robust roll former, a flying hydraulic cutting system, and a synchronized automatic stacker, such a line delivers the throughput needed to compete in demanding markets.

Whether serving the construction industry or other sectors, manufacturers can rely on this equipment to produce high-quality C and U profiles efficiently, consistently, and at scale.
