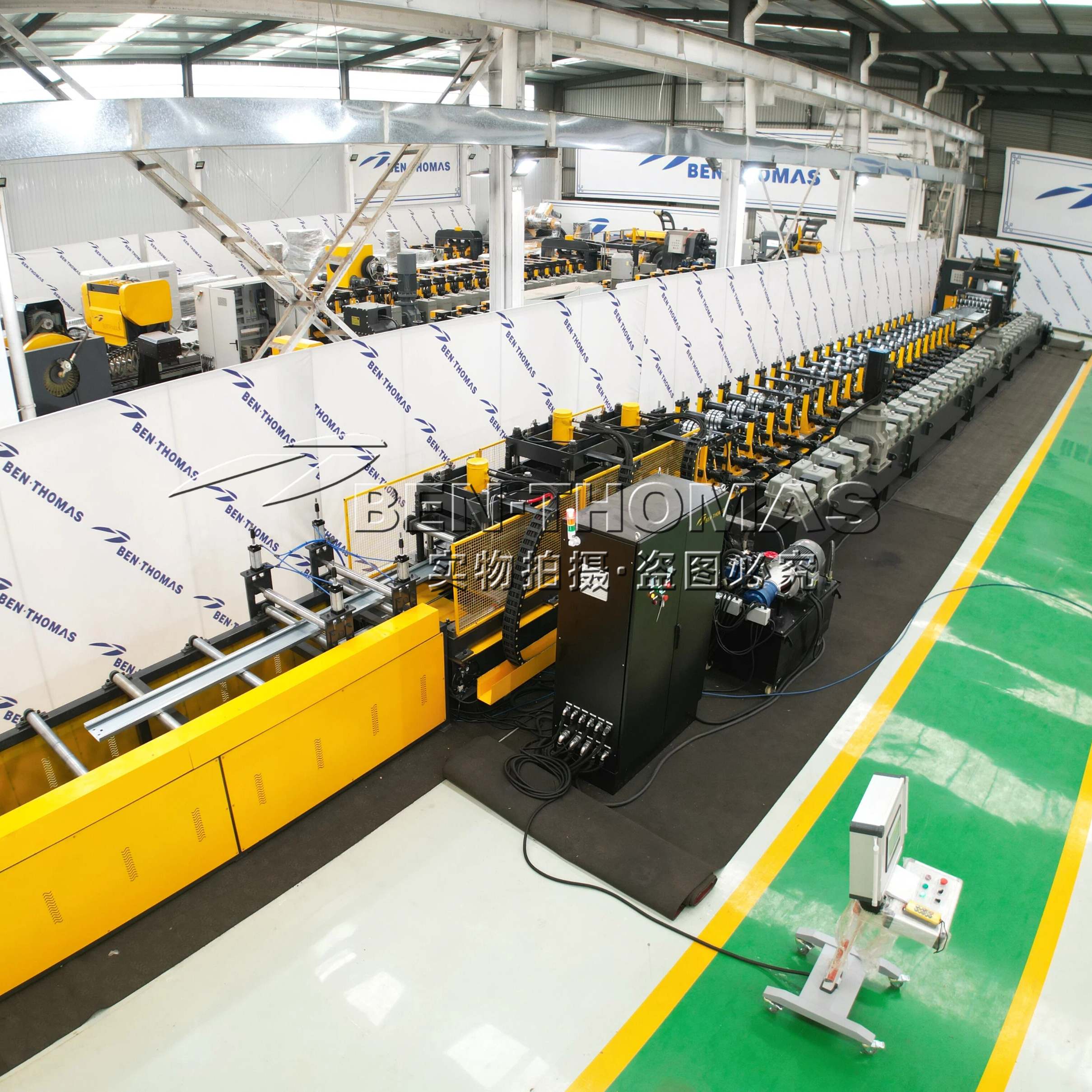

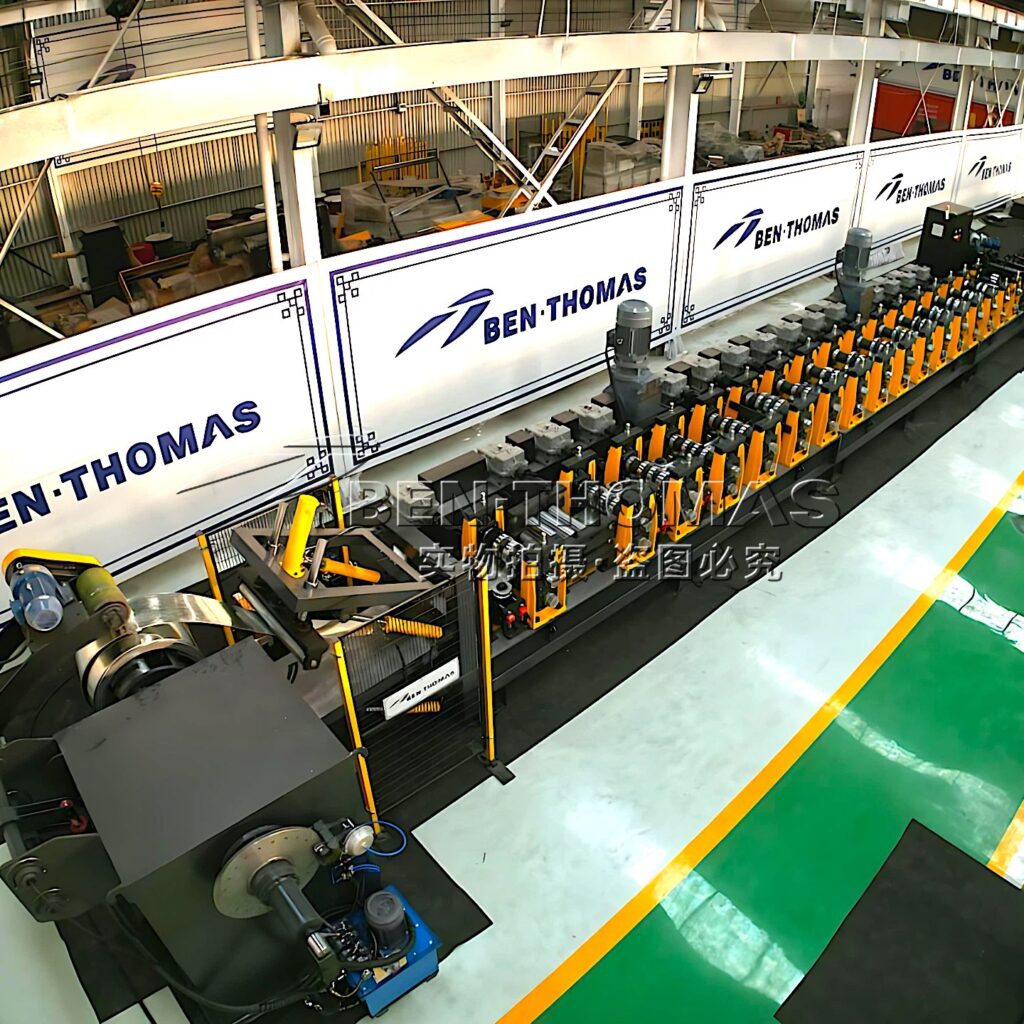

41*41 Strut Channels Roll Forming Line

In the rapidly evolving world of renewable energy and urban infrastructure, the demand for high-quality, precision-engineered metal profiles has never been greater. Whether supporting solar photovoltaic arrays across vast solar farms or securing critical utility lines within underground pipe galleries (utility tunnels), the structural components must meet rigorous standards for strength, durability, and dimensional accuracy.

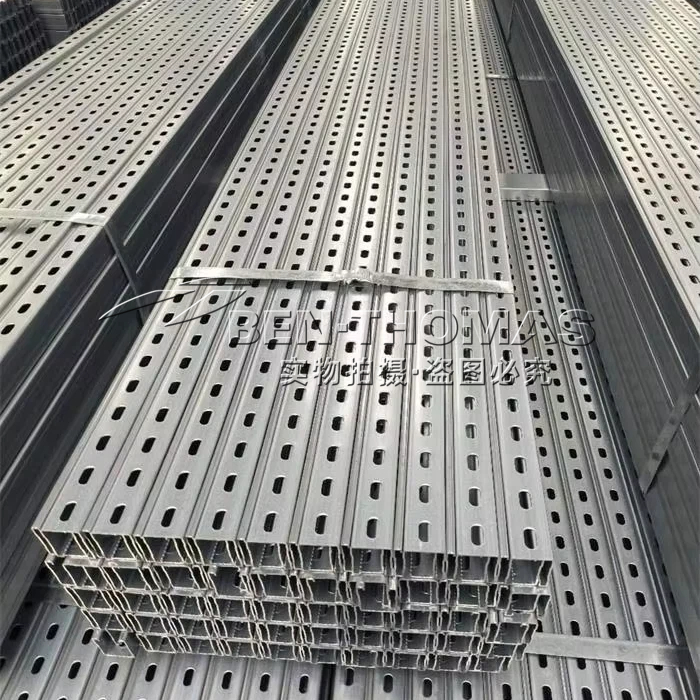

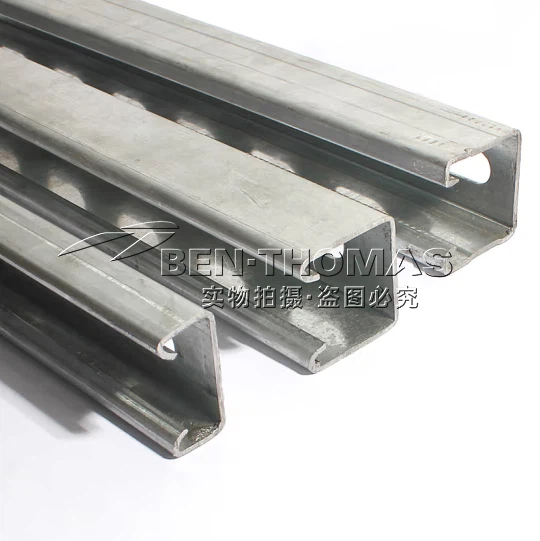

Our 41*41 Strut Channels Roll Forming Line are specifically designed to manufacture three key profile types: 41×41 mm, 21×21 mm, and 41×21 mm. These profiles serve as the backbone for two critical applications:

• Solar PV Mounting Structures: Providing reliable support for solar panels in ground-mount, rooftop, and carport installations.

• Utility Tunnel (Pipe Gallery) Support Systems: Forming the structural framework that supports cables, pipes, and other infrastructure within underground utility corridors.

Engineered for Precision & Consistency

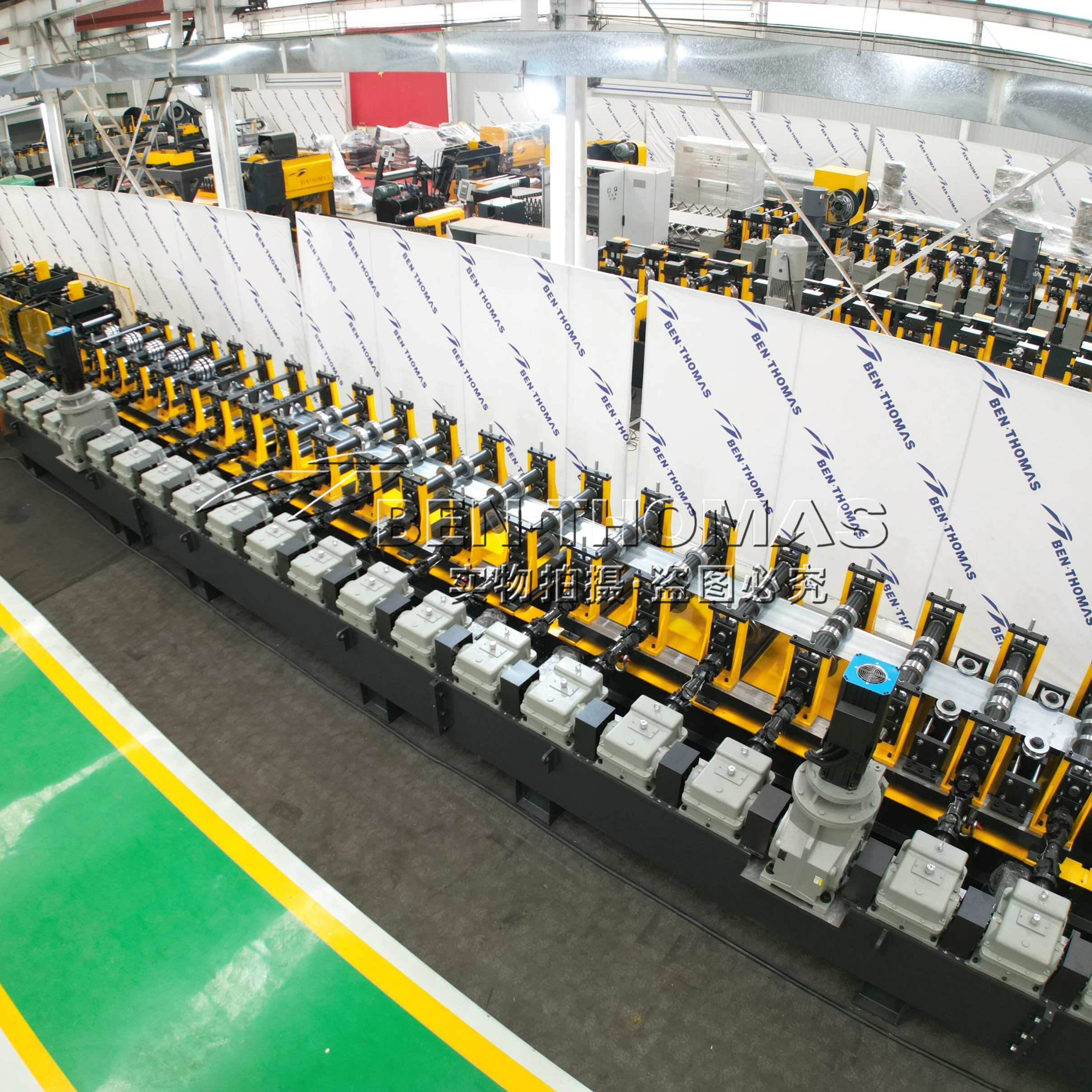

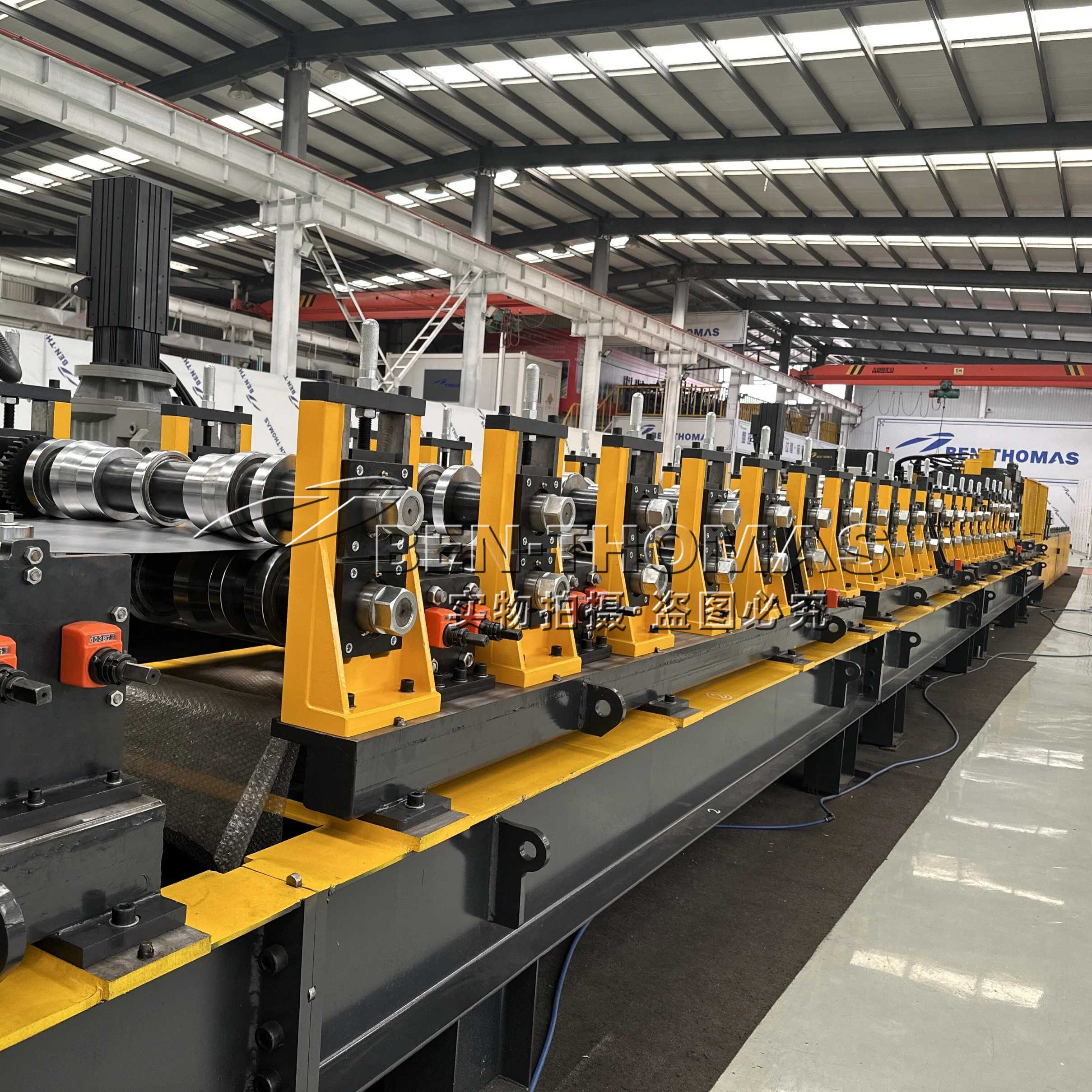

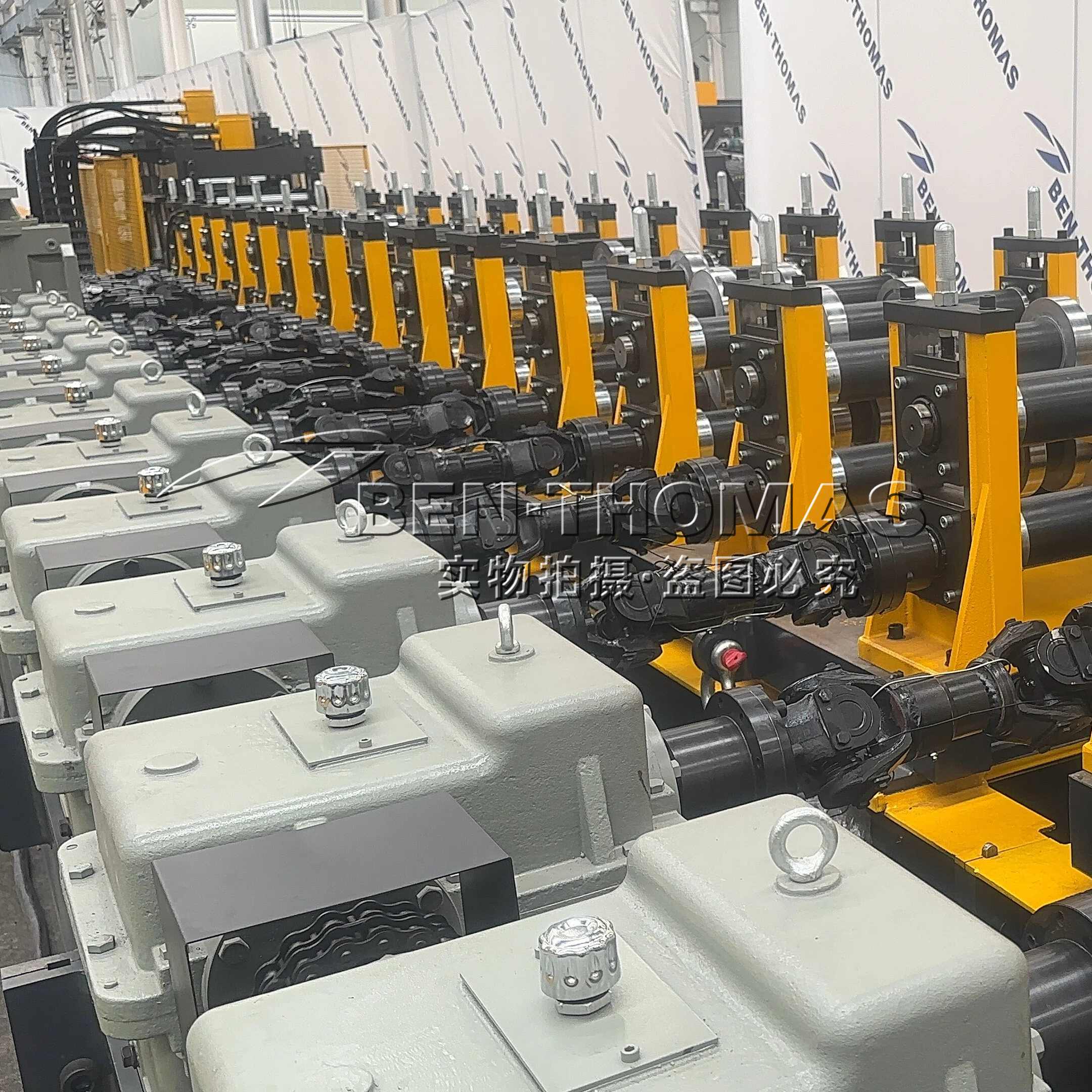

Our roll forming lines transform flat steel coils into finished profiles with exceptional accuracy. Each machine is equipped with precision-ground rollers and a robust forming station configuration that ensures consistent profile geometry across thousands of meters of production. This precision is essential for:

• Solar mounting systems where module alignment directly impacts energy output

• Utility tunnel supports where precise fitment ensures safety and ease of installation

High Automation for Uninterrupted Production

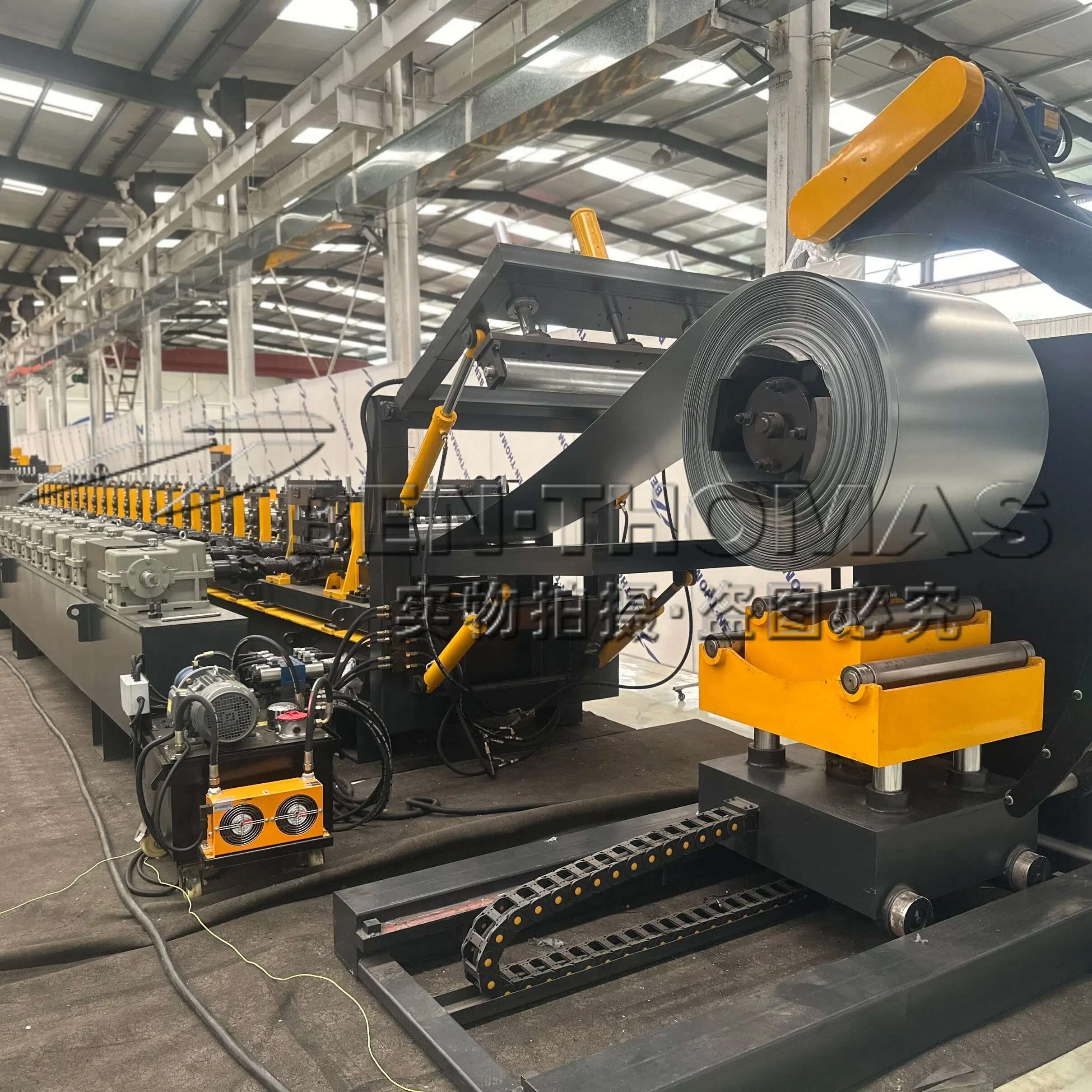

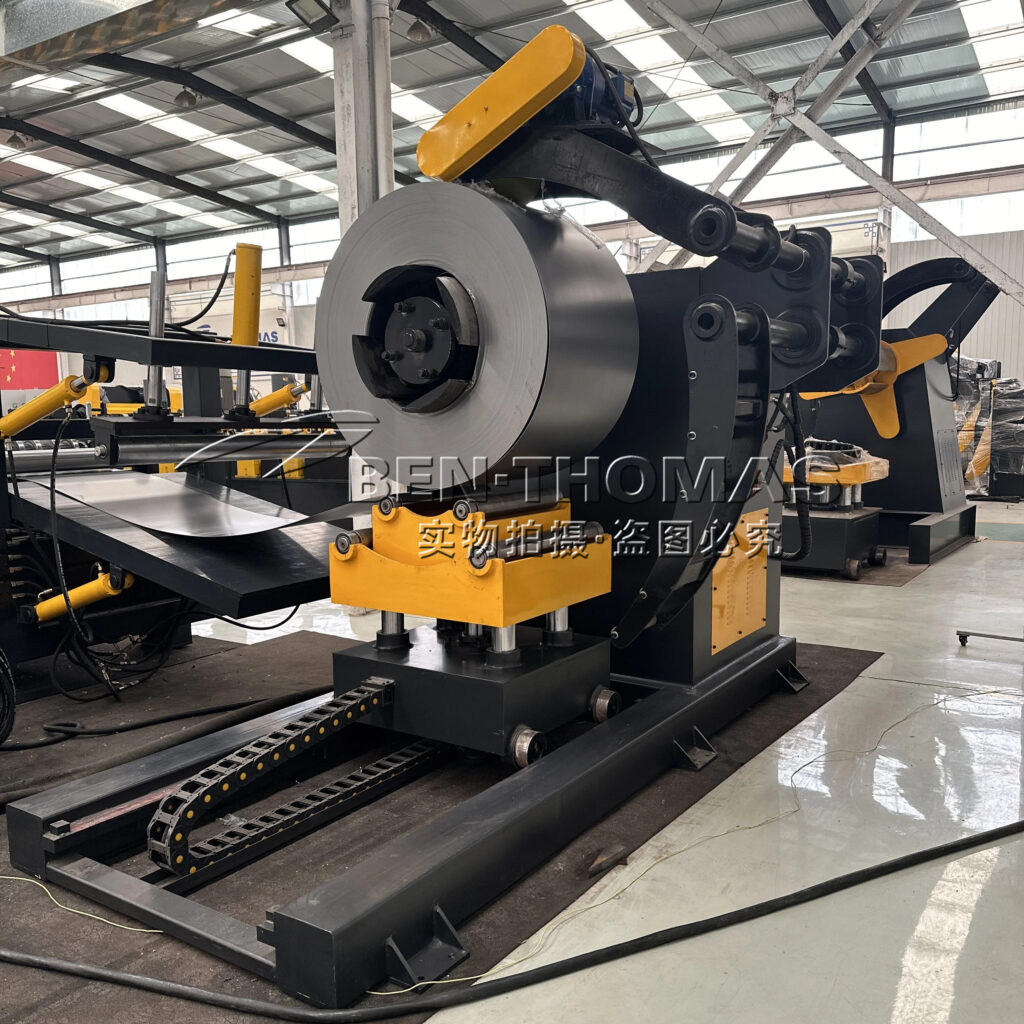

Automation is at the heart of our machine design. From the hydraulic uncoiler to the automatic stacker, every stage is integrated through a centralized PLC control system with an intuitive HMI touchscreen interface. This high level of automation delivers:

• Reduced manual intervention: A single operator can manage the entire production line

• Quick changeovers: Recipe-based settings allow rapid switching between 41×41, 21×21, and 41×21 profiles

• Continuous operation: Capable of 24/7 production with minimal supervision

Low Scrap Rate: Maximizing Material Utilization
Material cost represents a significant portion of manufacturing expenses. Our machines are engineered to minimize waste through:

• Servo-driven punching units: Precision hole positioning eliminates mispunched holes

• Flying cut-off technology: Cuts profiles to exact length without stopping the line, reducing end scrap

• Real-time monitoring: Sensors detect material deviations early, preventing defective output

The result is a scrap rate significantly lower than conventional fabrication methods, directly improving your bottom line.

Fast Line Speed: Meeting High-Volume Demands
Time is money in manufacturing. Our roll forming lines operate at industry-leading speeds—typically 15 to 35 meters per minute depending on profile complexity and material thickness. This high-speed capability enables manufacturers to:

• Fulfill large-scale solar project orders (hundreds of tons) within tight deadlines

• Maintain competitive lead times for infrastructure projects

• Maximize return on investment through higher throughput

Reliable After-Sales Service: Your Long-Term Partner
We understand that a roll forming machine is a long-term investment. Our commitment extends far beyond the initial sale. Our after-sales service includes:

• Comprehensive installation support: On-site or remote guidance during setup

• Operator training: Ensuring your team can maximize machine capabilities

• Spare parts availability: Quick dispatch of wear parts to minimize downtime

• Technical support: Responsive assistance via phone, email, or remote diagnostics

Whether you are expanding your solar manufacturing capacity or establishing a production line for utility tunnel support systems, our 41×41, 21×21, and 41×21 cold roll forming machines deliver the precision, efficiency, and reliability your operations demand.
