Description

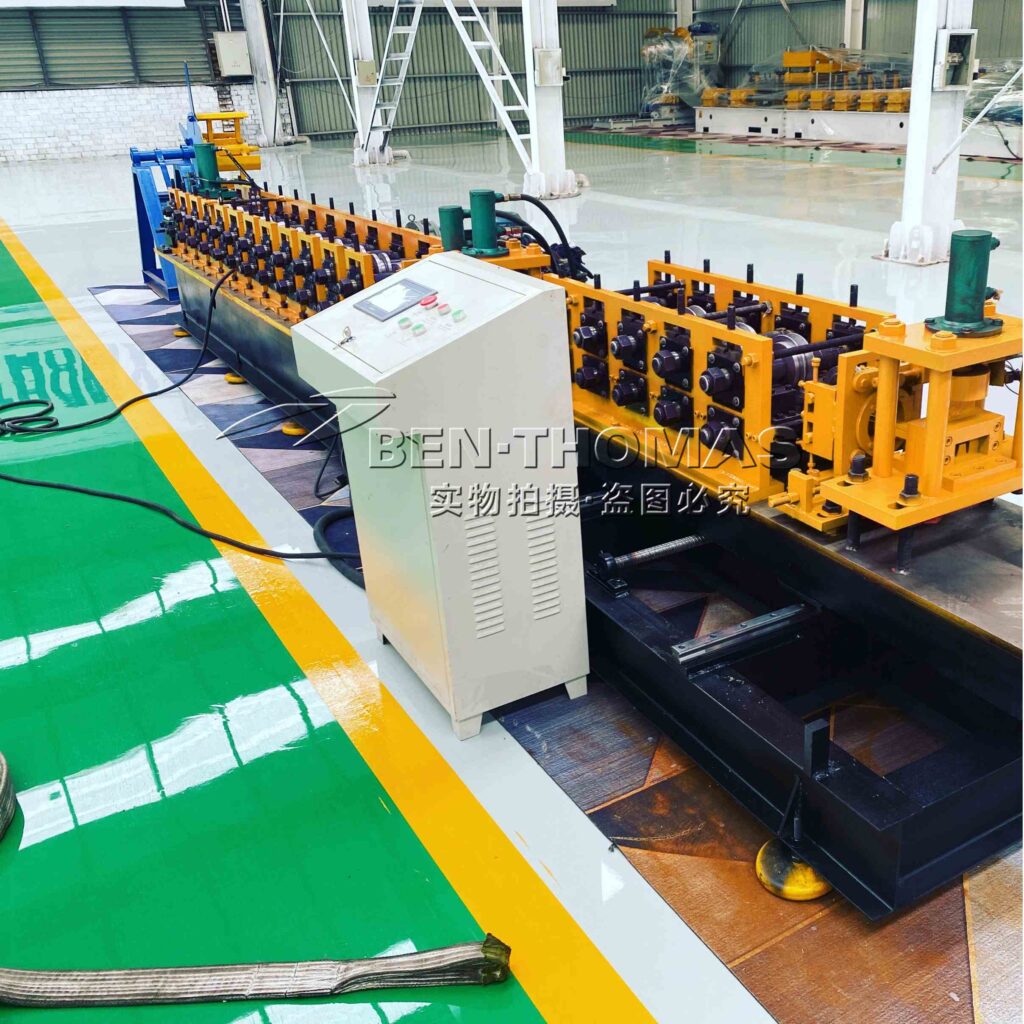

A stud and track roll forming machine is a professional automated cold roll forming equipment specially designed for manufacturing light gauge steel framing profiles widely used in drywall partition systems, ceiling structures, and modular construction projects. Adopting continuous cold bending and rolling technology, this industrial machine processes flat galvanized steel strips into standardized metal stud and track profiles with high precision and stable structure. It replaces traditional manual or semi-automatic processing methods, realizing fully automatic, continuous, and mass production of light steel keels. Widely applied in residential buildings, commercial offices, hotels, and industrial plant renovation projects, it has become core equipment for modern drywall construction material manufacturers.
What Does the Stud and Track Machine Produce?
This multi-functional roll forming line specializes in producing two core light steel framing components for building interior decoration and structural partitioning:
1. Metal Studs (C-channel profiles)
Vertical C-shaped steel studs that serve as the main supporting frames for drywall partitions. They provide stable vertical bearing capacity for wall panels, featuring lightweight, high strength, and strong anti-deformation performance.
2. Metal Tracks (U-channel profiles)
Horizontal U-shaped top and bottom tracks used to fix and connect metal studs. They cooperate with studs to form a complete drywall steel frame system, ensuring the overall stability and flatness of partition walls and ceilings.
In addition to standard C and U profiles, the machine can also produce various customized light gauge steel profiles such as omega channels and angle steel according to customer requirements, fully meeting diverse building framing needs.
3. Omega Profile
Production Line Speed
The stud and track roll forming machine features adjustable production speed to adapt to different production scales and processing requirements. The standard working speed ranges from 15m/min to 25m/min, suitable for conventional batch production with stable operation and low failure rate. For large-scale high-volume manufacturing, the upgraded high-speed model can reach a maximum speed of 100m/min, greatly improving daily output and production efficiency. All speed modes maintain precise forming accuracy and burr-free cutting quality, ensuring consistent finished product standards during high-speed continuous operation.
Fully Customizable Design for Personalized Needs
Our stud and track roll forming production line supports comprehensive personalized customization to fit different regional construction standards, customer product specifications, and factory layouts. We can customize profile sizes, steel plate processing thickness (0.3mm–1.5mm), forming roller parameters, punching hole positions, cutting lengths, and line running speed. Meanwhile, the electrical control system, hydraulic shear configuration, and machine appearance layout can all be optimized according to client demands. The fast tool change design allows quick switching between different stud and track sizes, effectively reducing production downtime and improving production flexibility. Whether for small-batch diversified production or large-scale standardized processing, the machine can be perfectly matched to your production goals.
Core Advantages
Equipped with an intelligent PLC automatic control system, the whole line realizes one-key start, automatic feeding, continuous forming, and fixed-length cutting. It features simple operation, low labor cost, stable long-term operation, and low maintenance cost. The finished metal stud and track profiles have smooth surfaces, accurate sizes, and strong versatility, which are highly recognized by global building decoration material suppliers.
