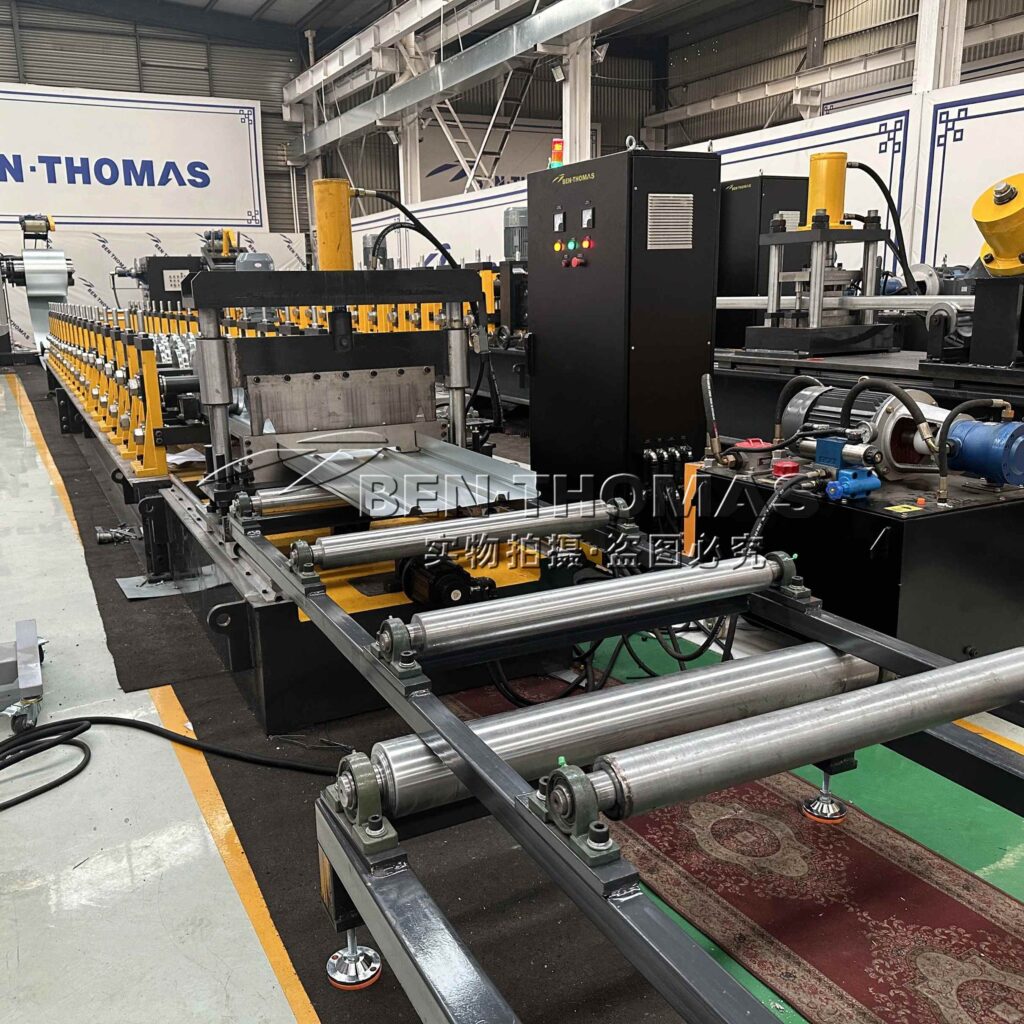

Sound-Absorbing Perforated Panel Rollforming Line
Contact: Elise
Tel:+86-155 3281 7581
Email: elise@tgrfm.cn
Description
A Sound-Absorbing Perforated Panel Roll Forming Line (also known as an Acoustic Panel Roll Forming Machine or Sound Barrier Panel Production Line) is a specialized automated system that manufactures metal panels designed to absorb and reduce noise. These panels are widely used for sound barriers along highways and railways, as well as for acoustic treatment in buildings like auditoriums, factories, and offices .
Imagine a highly efficient factory line that takes flat coils of metal (steel or aluminum) and performs a sequence of operations—decoiling, precision perforation, roll forming, and cutting—to produce finished panels with excellent acoustic properties .
The panels produced by this line are engineered for both sound absorption and structural integrity.

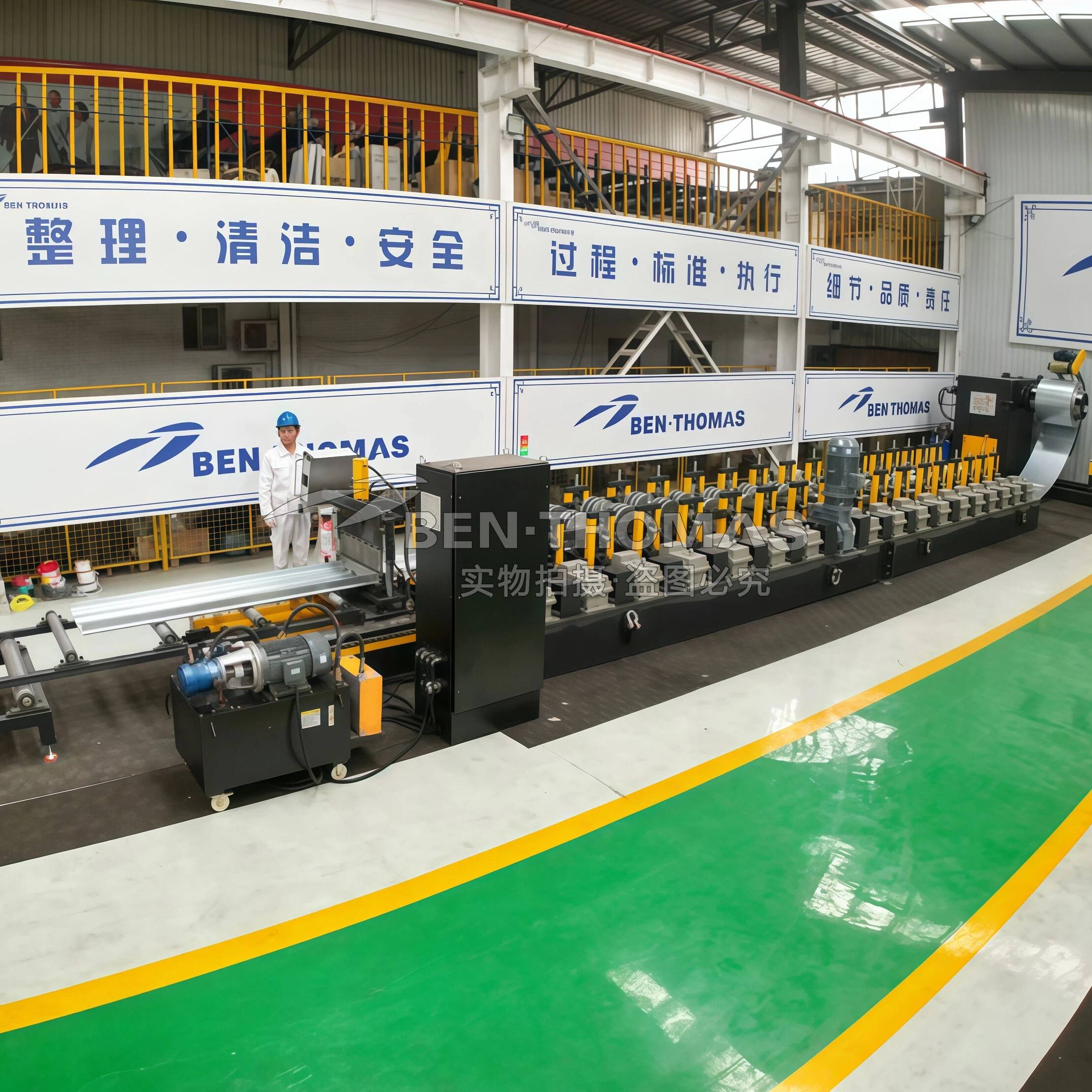

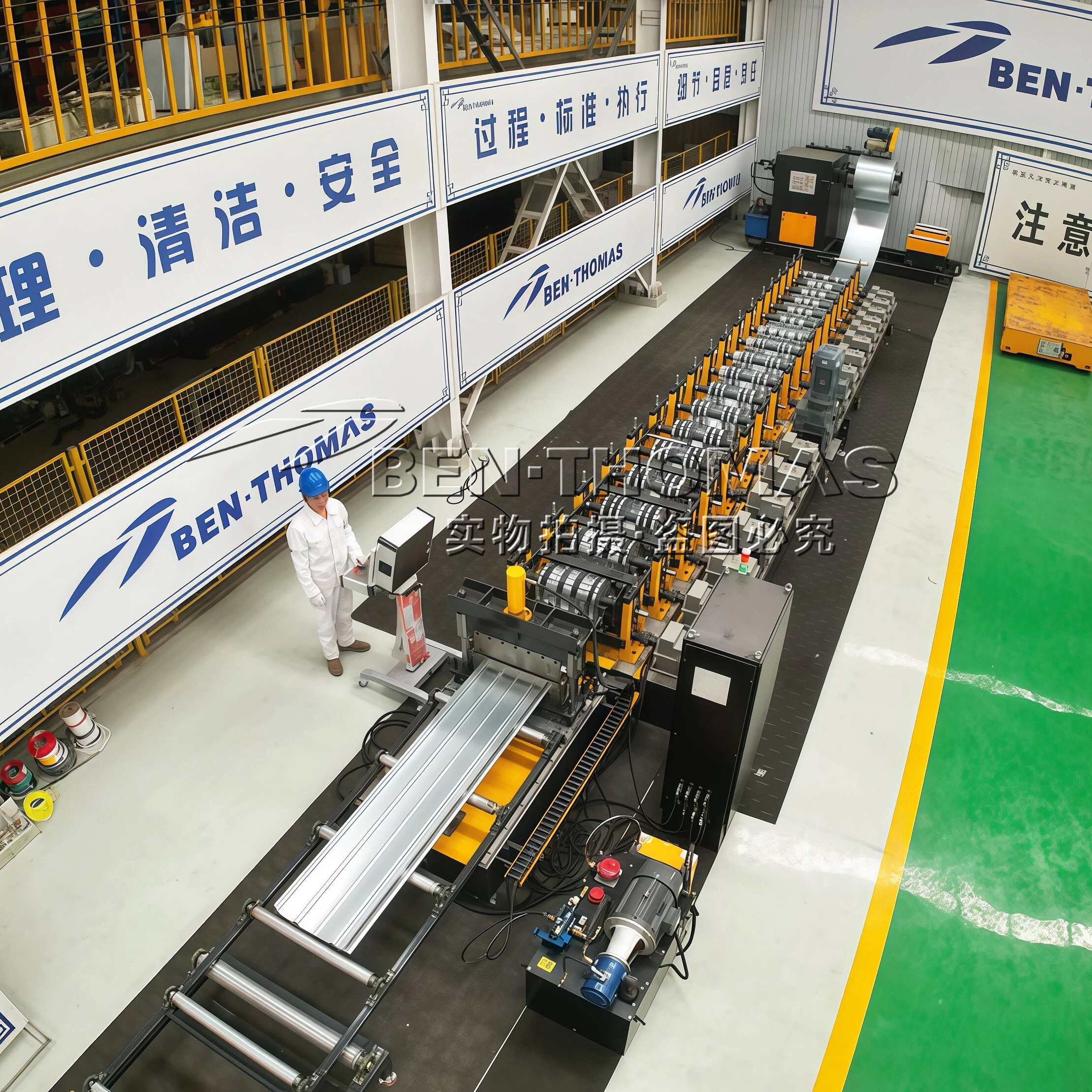

A complete sound-absorbing panel roll forming line integrates several automated stations that work in sequence :
| Stage | Function | Key Details |
|---|---|---|

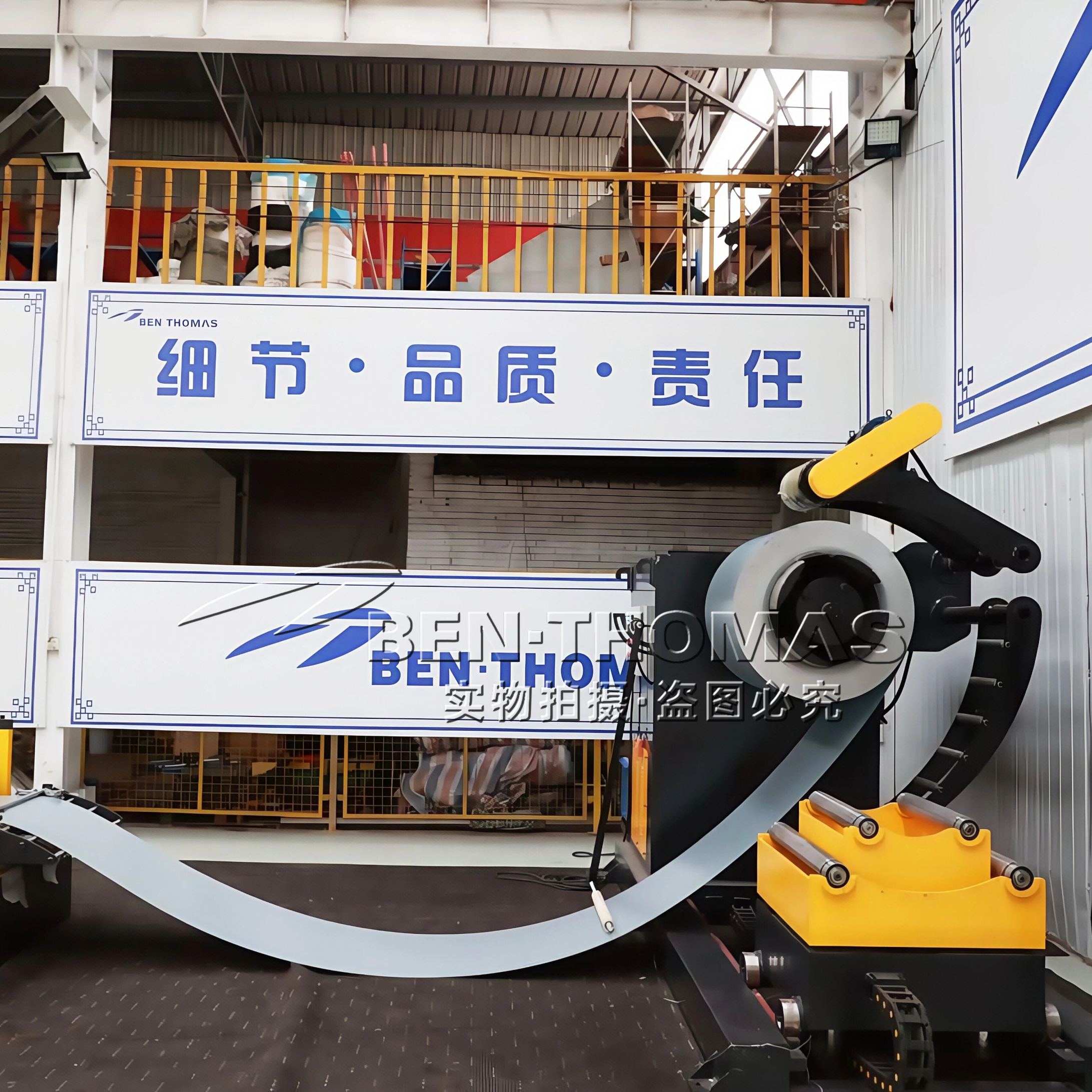

| 1. Decoiling & Leveling | Holds and feeds the metal coil (galvanized steel, aluminum, stainless steel), then flattens it for consistent processing . | Hydraulic decoiler with leveler for smooth material entry . |
| 2. Punching (Perforation) | Creates the sound-absorbing holes in the metal sheet . | High-speed punching systems (rotary, hydraulic, or servo-driven) for custom hole patterns . |

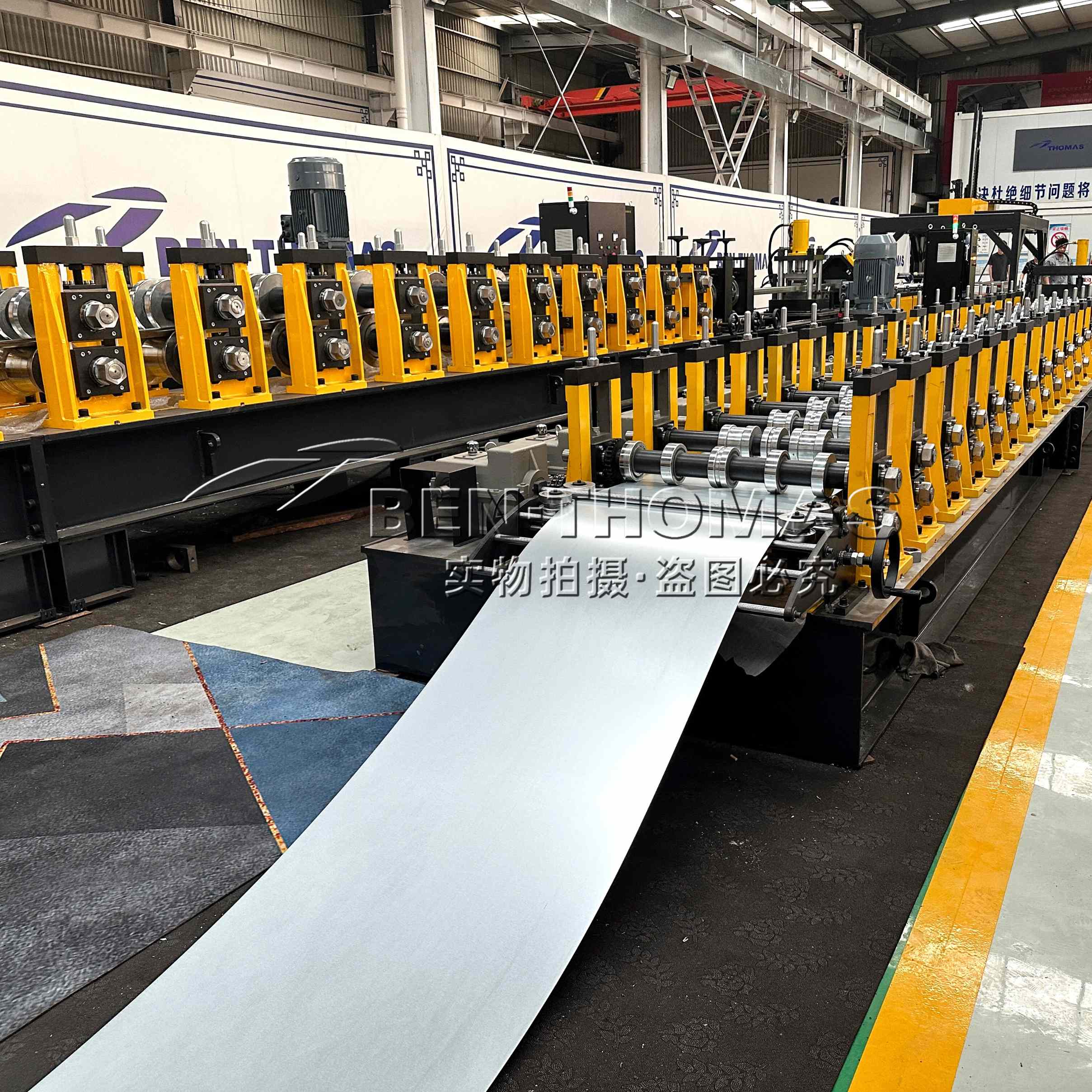

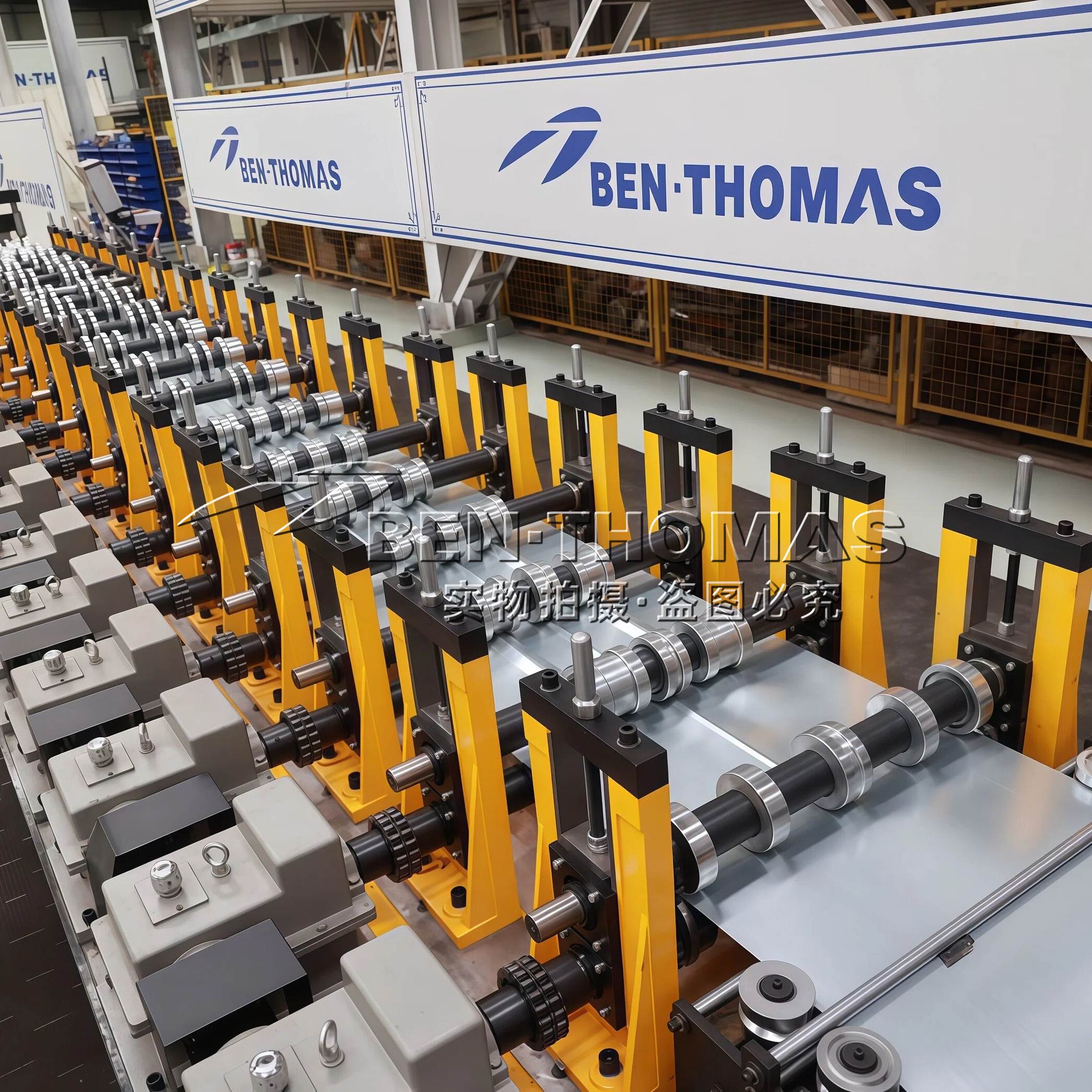

| 3. Roll Forming | The core process where the flat, perforated sheet passes through progressive roller stations to achieve its final profile shape . | Multi-stage rollers (e.g., 18-32 stations) made of hardened steel (Cr12, GCr15) for precision and durability . |
| 4. Cutting | Shears the continuous formed panel to exact project-specified lengths . | Servo-driven tracking shear for high accuracy (e.g., ±0.5mm) without stopping production . |
| 5. Control System | An industrial computer (PLC) with a touchscreen interface manages the entire process, controlling speed, length, and production counts . | Brands like Siemens, Delta, or Schneider ensure stable, automatic operation . |
| 6. Stacking | Automatically collects and stacks the finished panels for easy packaging and removal . | Run-out tables with automatic receiving systems. |
Different configurations exist depending on the specific panel type being produced:
| Line Type | Special Features | Typical Application |
|---|---|---|
| Highway Sound Barrier Line | Dual-layer panel production capability; larger, heavier panels | Highway and railway noise walls, industrial enclosures |
| Perforated Acoustic Panel Line | Optimized for ceiling and wall panels; various hole patterns (micro-perforated, slotted) | Commercial buildings, auditoriums, offices, studios |
| Sound-Absorbing Sandwich Panel Line | Produces panels with insulation core (rock wool, glass wool) for enhanced thermal and acoustic performance | Building envelopes, cold storage, industrial insulation |
In essence, a Sound-Absorbing Perforated Panel Roll Forming Line is the manufacturing backbone of modern noise control solutions—transforming flat metal coils into the precision-engineered panels that make our environment quieter and more comfortable.
