What Is a Palisade Fence Post Roll Forming Machine?
A palisade fence post roll forming machine is a professional automatic cold roll forming equipment specially developed for manufacturing high-strength metal palisade fence posts. It integrates continuous rolling, inline punching and fixed-length cutting processes to transform flat steel coils into standard, dimensionally accurate palisade fence posts in one continuous workflow. Widely used in security fencing, industrial perimeter fencing, residential boundary fences, park guardrails and construction isolation barriers, this fully automated line is the core equipment for fence manufacturing factories to achieve mass, high-efficiency production.
What Does the Machine Produce?

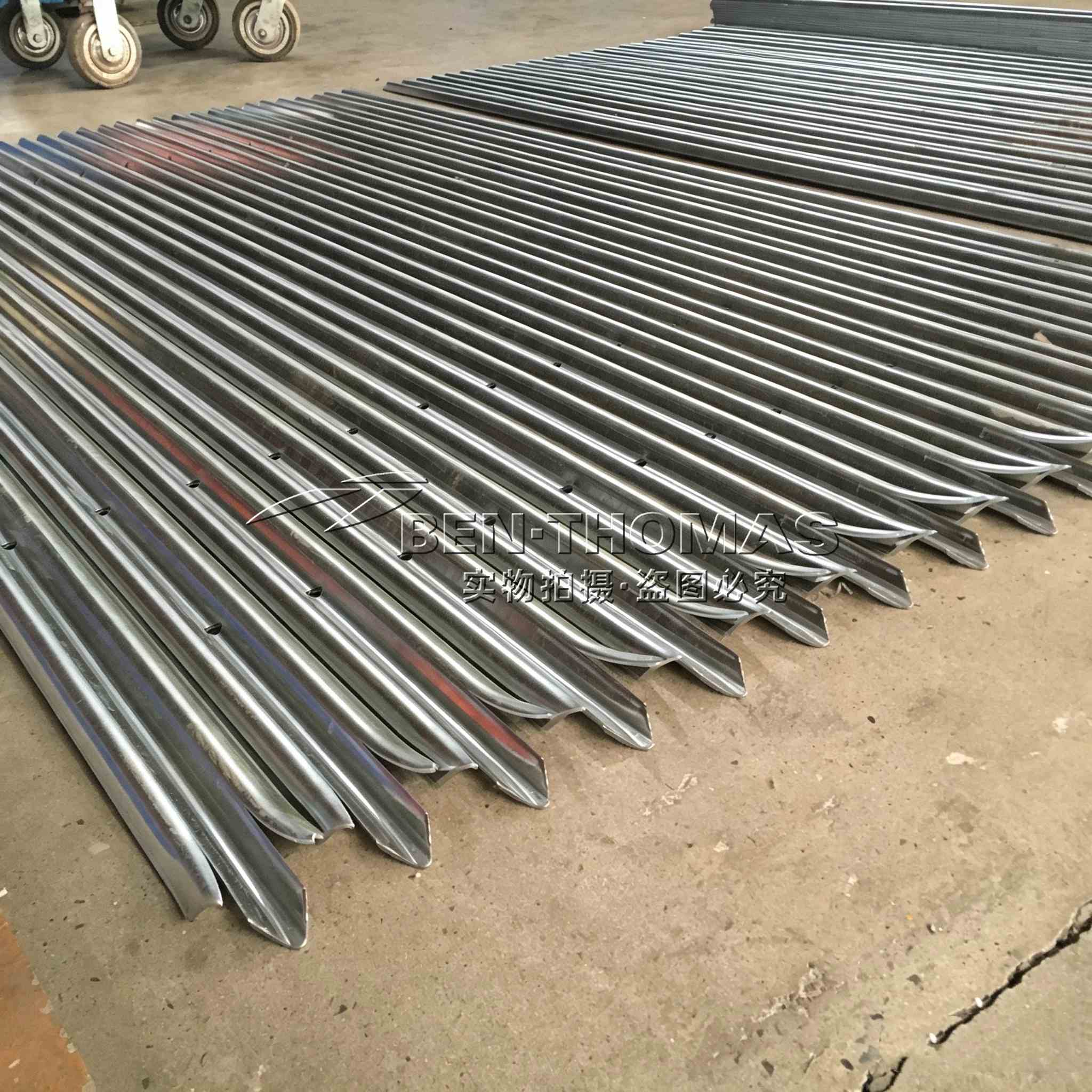

This roll forming line is dedicated to producing metal palisade fence posts in various standard and custom profiles. The finished fence posts feature firm structure, smooth surface, high hardness and strong anti-corrosion performance, suitable for galvanized steel and color steel raw materials. All finished products have precise hole positions and uniform sizes, perfectly matching palisade fence panel assembly requirements, and meet the installation standards of outdoor security fence projects worldwide.
Production Line Running Speed
The standard operating speed of our palisade fence post roll forming machine is 12–18 meters per minute. With stable servo drive and optimized roller arrangement, the equipment maintains consistent high-speed operation while ensuring forming accuracy and punching cutting precision. It balances high production output and low error rate, supporting long-time continuous automatic operation and greatly improving factory daily production capacity.
Complete Machine Configuration

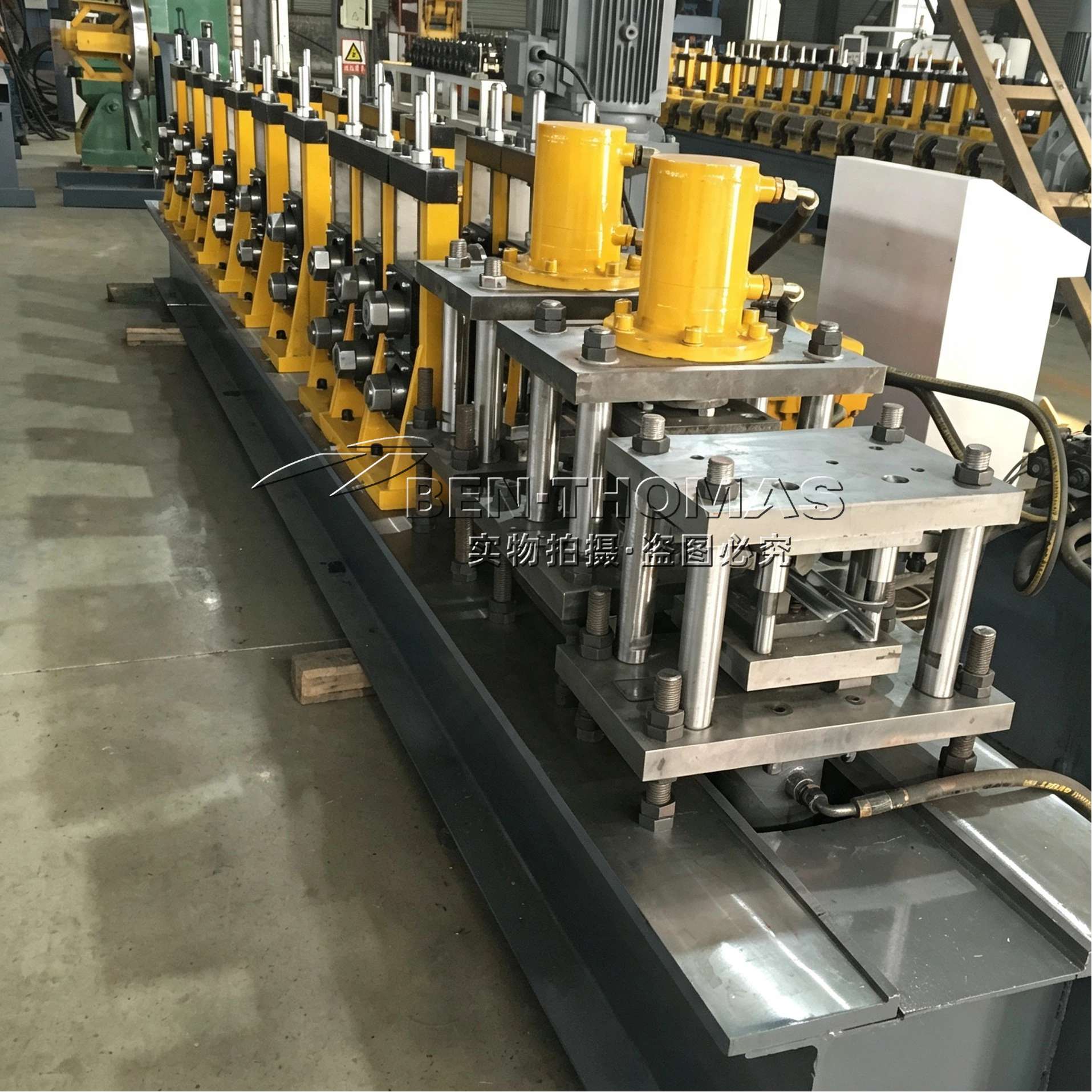

The full automatic palisade fence post roll forming line adopts a compact integrated structure, covering all essential production procedures from raw material feeding to finished product output. The standard complete configuration includes the following core parts:
1. Decoiler: Equipped with heavy-duty manual or hydraulic decoiler, it stably supports and automatically unwinds steel coils, ensuring smooth and uniform material feeding without deviation or jamming, laying a stable foundation for subsequent processing.

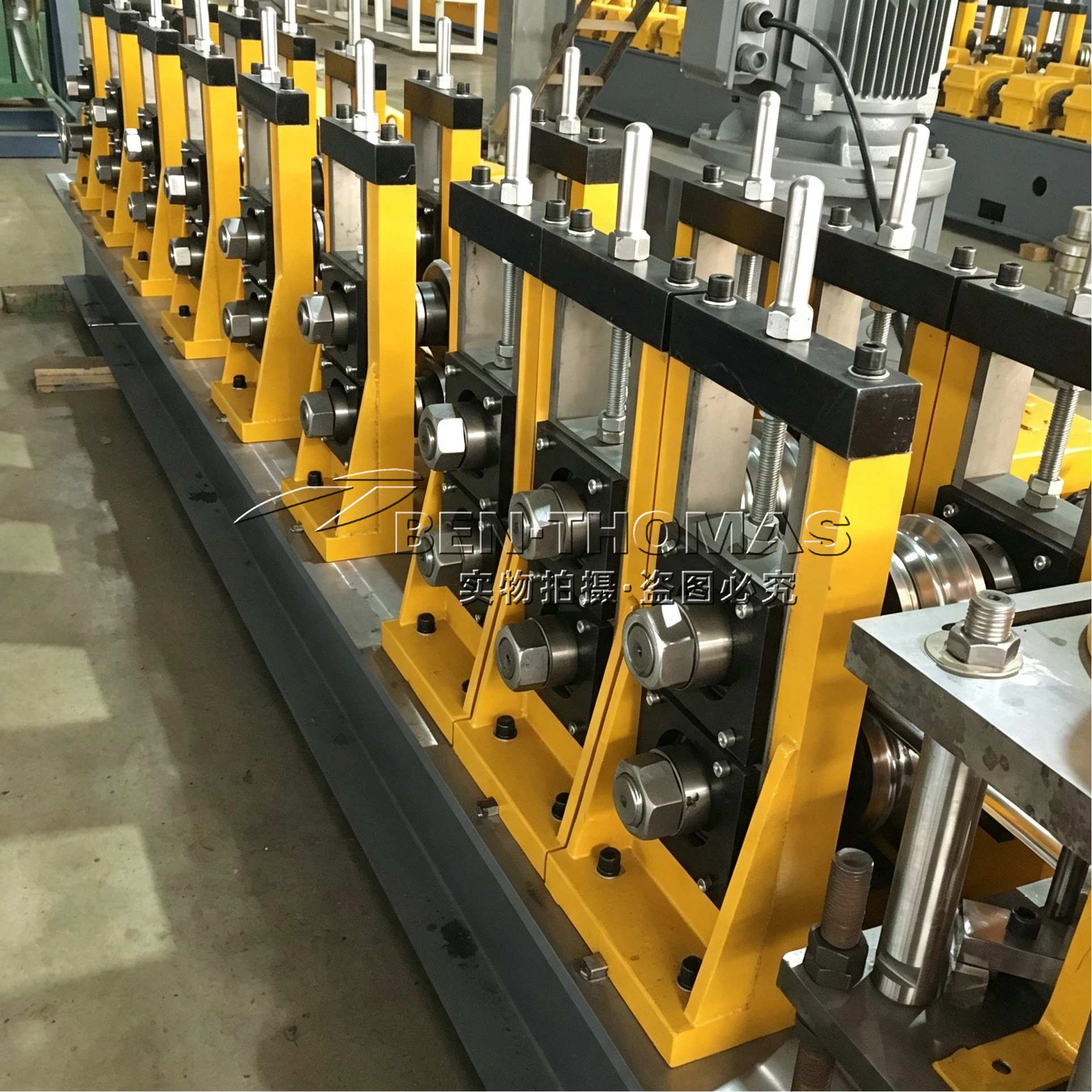

2. Main Roll Former: The core forming unit adopts high-precision alloy rollers. Through multi-pass gradual cold bending, it precisely shapes steel strips into standard palisade fence post profiles, with no surface scratches or structural deformation.

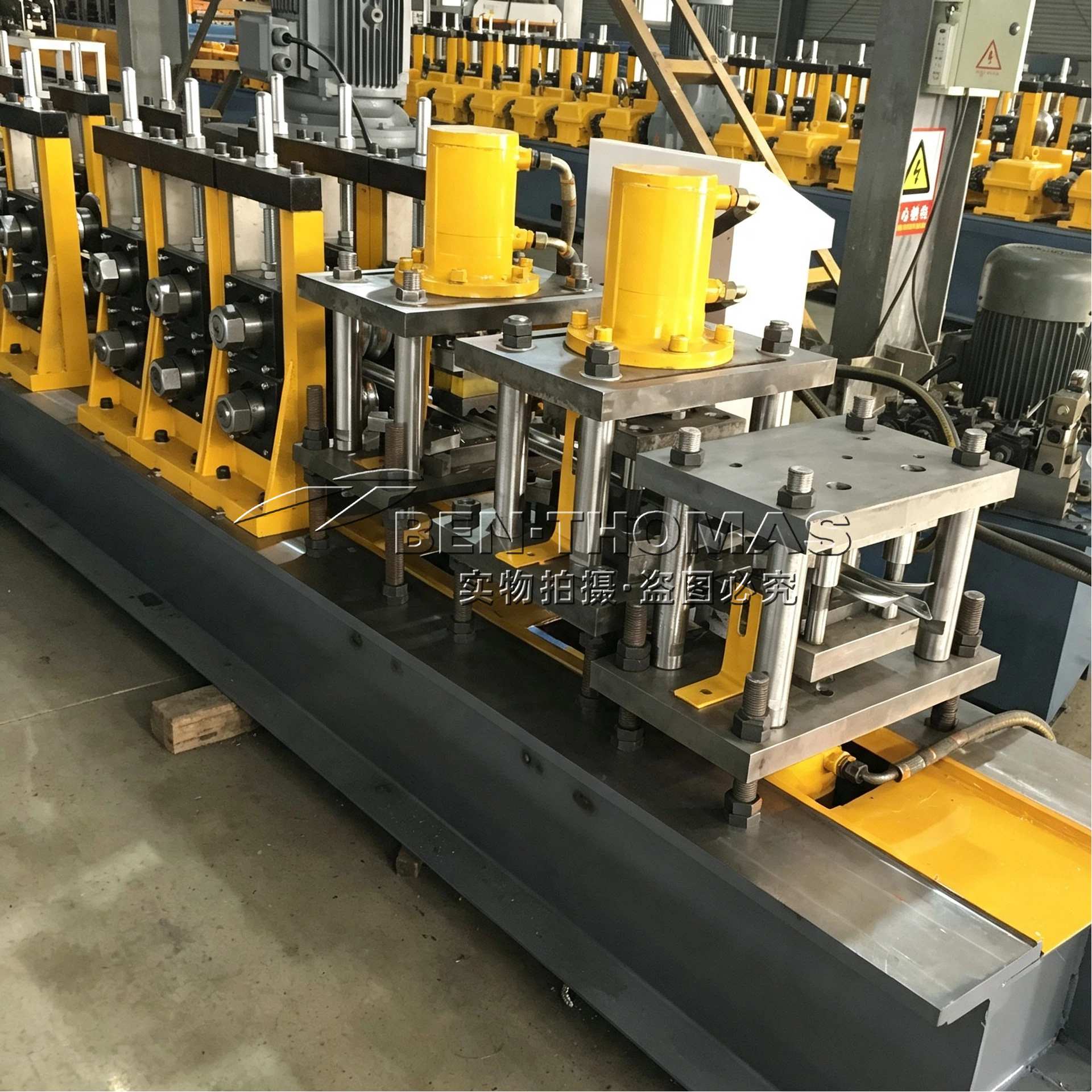

3. Inline Punching System: Built-in synchronous hydraulic punching device completes precise hole punching during the rolling process. The one-step forming and punching process avoids secondary processing, effectively improving production efficiency and ensuring consistent hole position accuracy of each fence post.

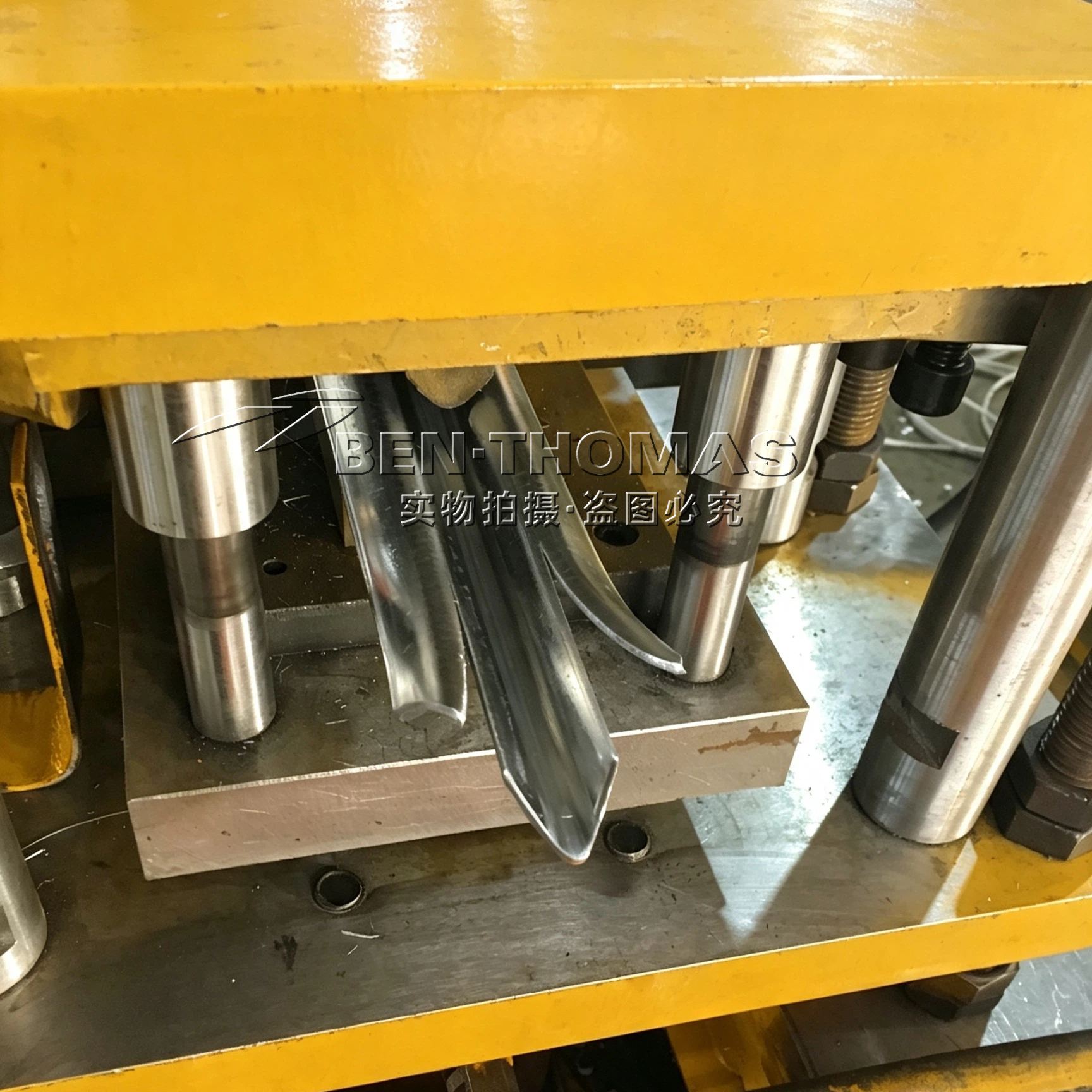

4. Automatic Cutting Unit: The fixed-length hydraulic cutting system realizes automatic tracking and sizing cutting according to preset parameters. The cutting section is flat and burr-free, with small dimensional tolerance, meeting high-standard product requirements.
5. Simple Receiving Table: Matched with a lightweight non-power receiving platform to automatically collect finished fence posts. It is convenient for manual sorting and stacking, suitable for conventional batch production and effectively reducing equipment investment cost.
Customizable Production Solution
We provide full personalized customization services for the palisade fence post roll forming machine. According to customers’ local fence standards, project requirements and production demands, we can customize fence post profiles, processing thickness range, punching hole positions and sizes, cutting length ranges, line running speed and PLC control parameters. Whether you need standard models or special-shaped non-standard fence post equipment, we can optimize the machine configuration to create exclusive high-efficiency production lines for clients.
Core Advantages
Featuring integrated punching and forming, one-time molding, stable operation and easy maintenance, our palisade fence post roll forming machine realizes full automatic production with minimal manual intervention. It is an ideal cost-effective equipment for medium and large fence manufacturing enterprises to upgrade production efficiency and improve product quality.
