Description

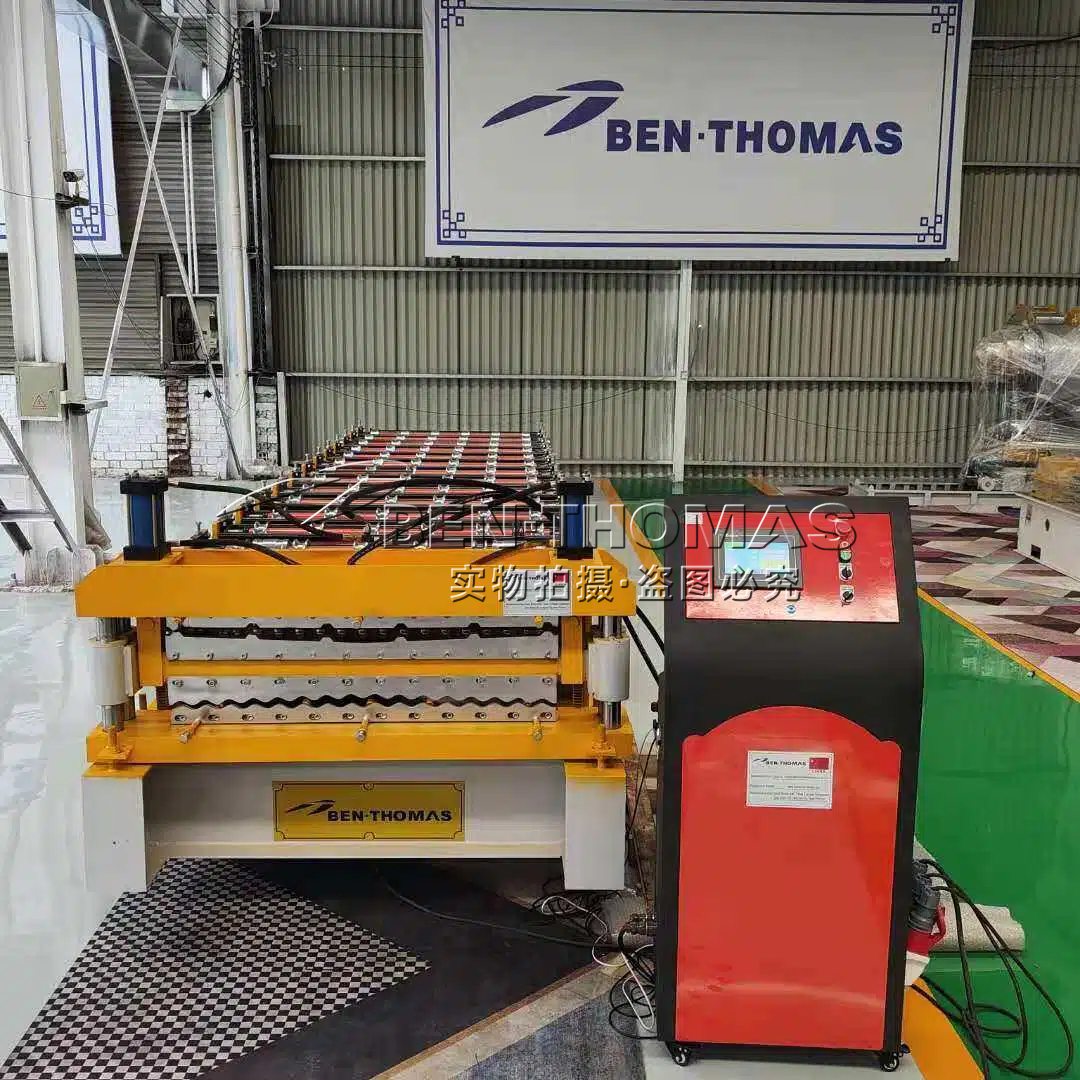

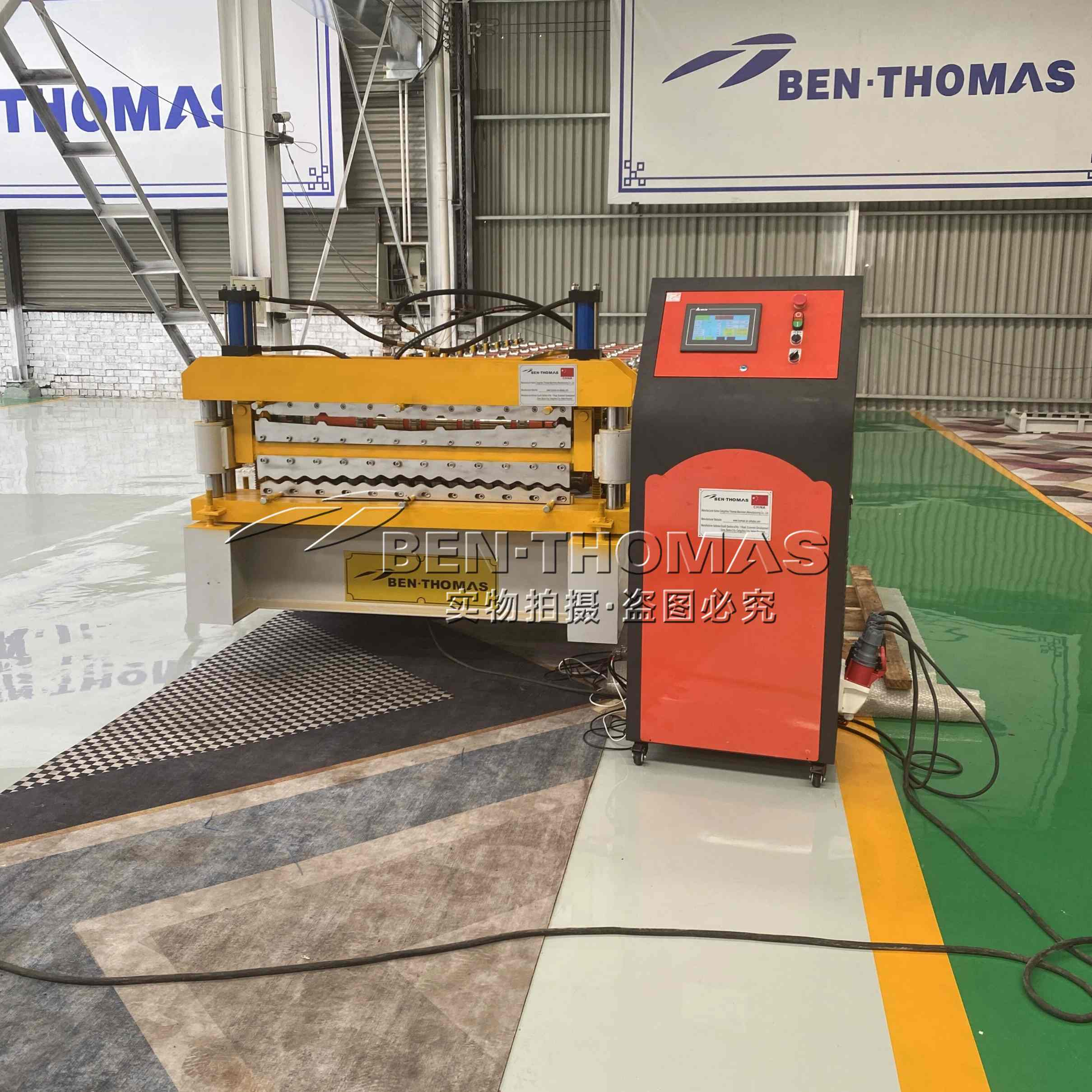

A double‑layer roof panel roll‑forming machine is one‑set integrated cold‑roll forming equipment. It can manufacture two different types of metal roof and wall panels on one single production‑line.

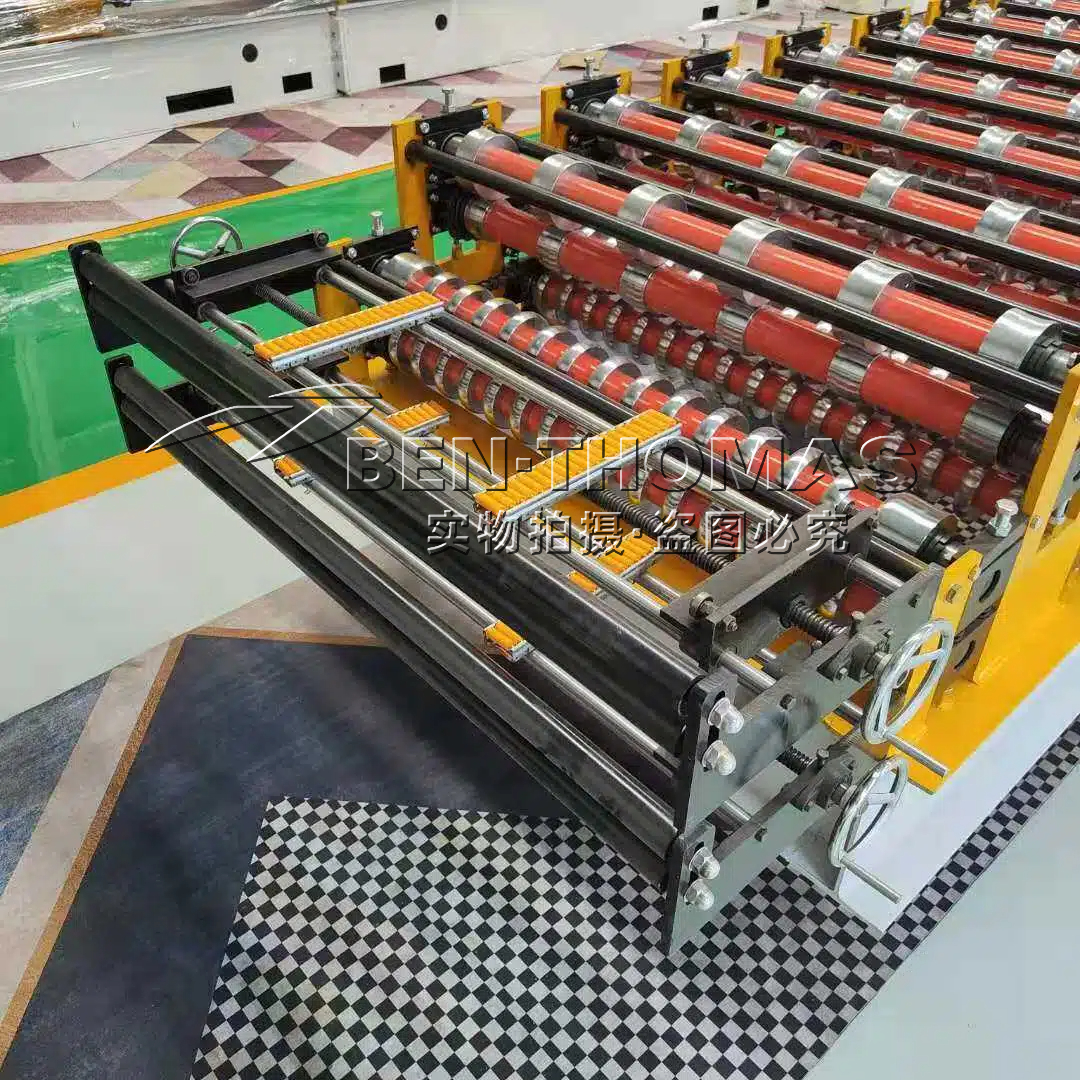

Two groups of forming roller stations are installed on the same machine frame. Workers can switch between two profiles freely, to produce trapezoidal roof sheets, corrugated wall panels or glazed‑style steel tiles. It saves factory space and equipment purchasing cost for metal‑sheet manufacturers.
Standard Full‑line Components
The complete double‑layer roof‑panel production line includes these modular parts:
- Uncoiler
Holds raw galvanized or color‑steel coils, unwinds steel strip steadily for feeding.
- Feeding‑in Guide Frame
Straps the metal strip and prevents material offset.

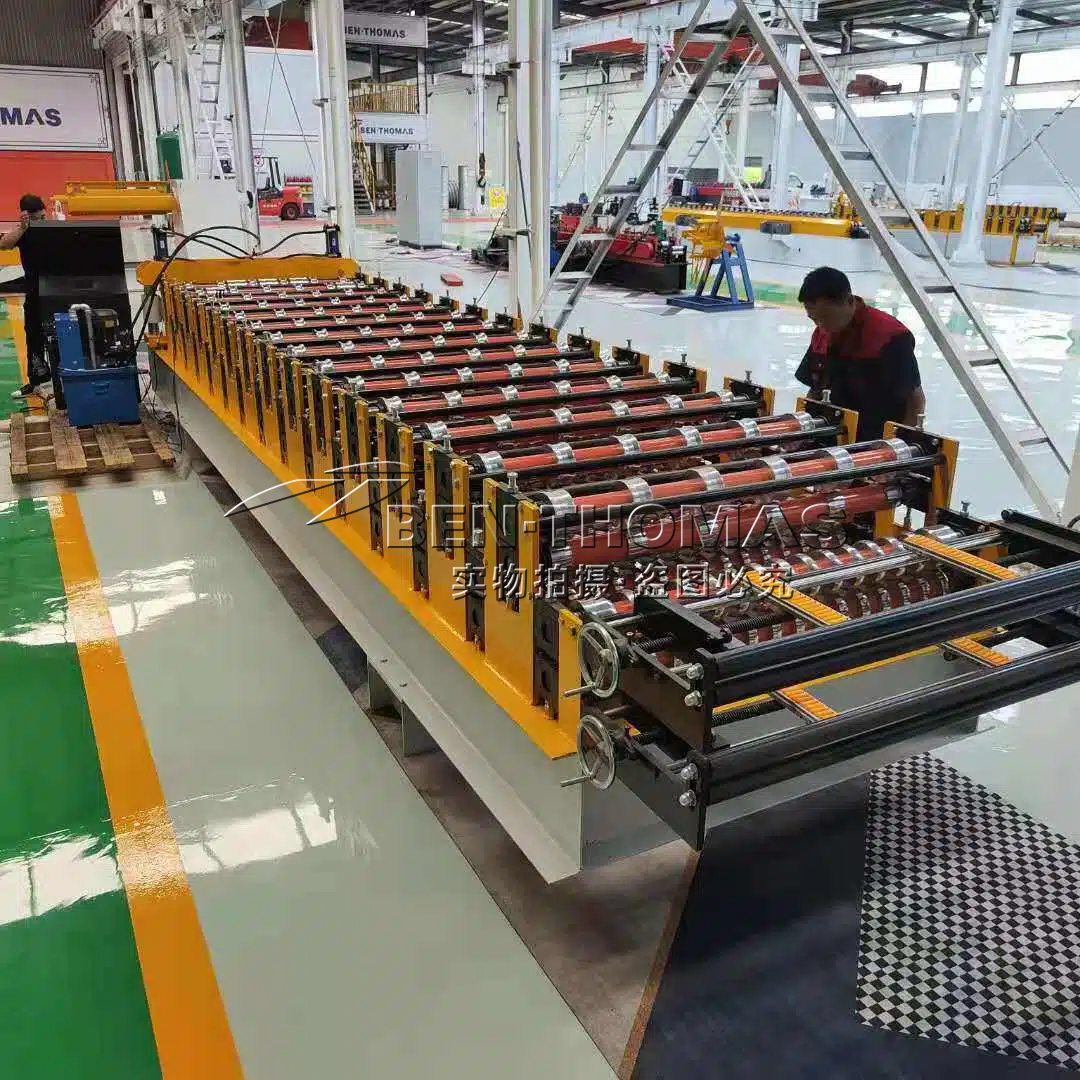

- Dual‑layer main forming host
Two sets of forming roller groups for two kinds of roof‑sheet profiles.
- Fixed‑length flying shear
Hydraulic servo‑driven cutter, cuts finished panels at customized lengths with neat, burr‑free edges.
- Material‑receiving part (two optional choices)
- Simple manual receiving platform for low‑output manufacture
- Automatic stacking machine to arrange finished roof panels and cut‑down manual labour
Extra Brief Advantages
- Two‑in‑one machine saves workshop area and budget
- Fast profile switching
- PLC automatic control for stable long‑time‑running
A Double‑Layer Roof Panel Roll‑Forming Machine can fabricate two distinct kinds of cold‑formed metal steel profiles from one equipment set.

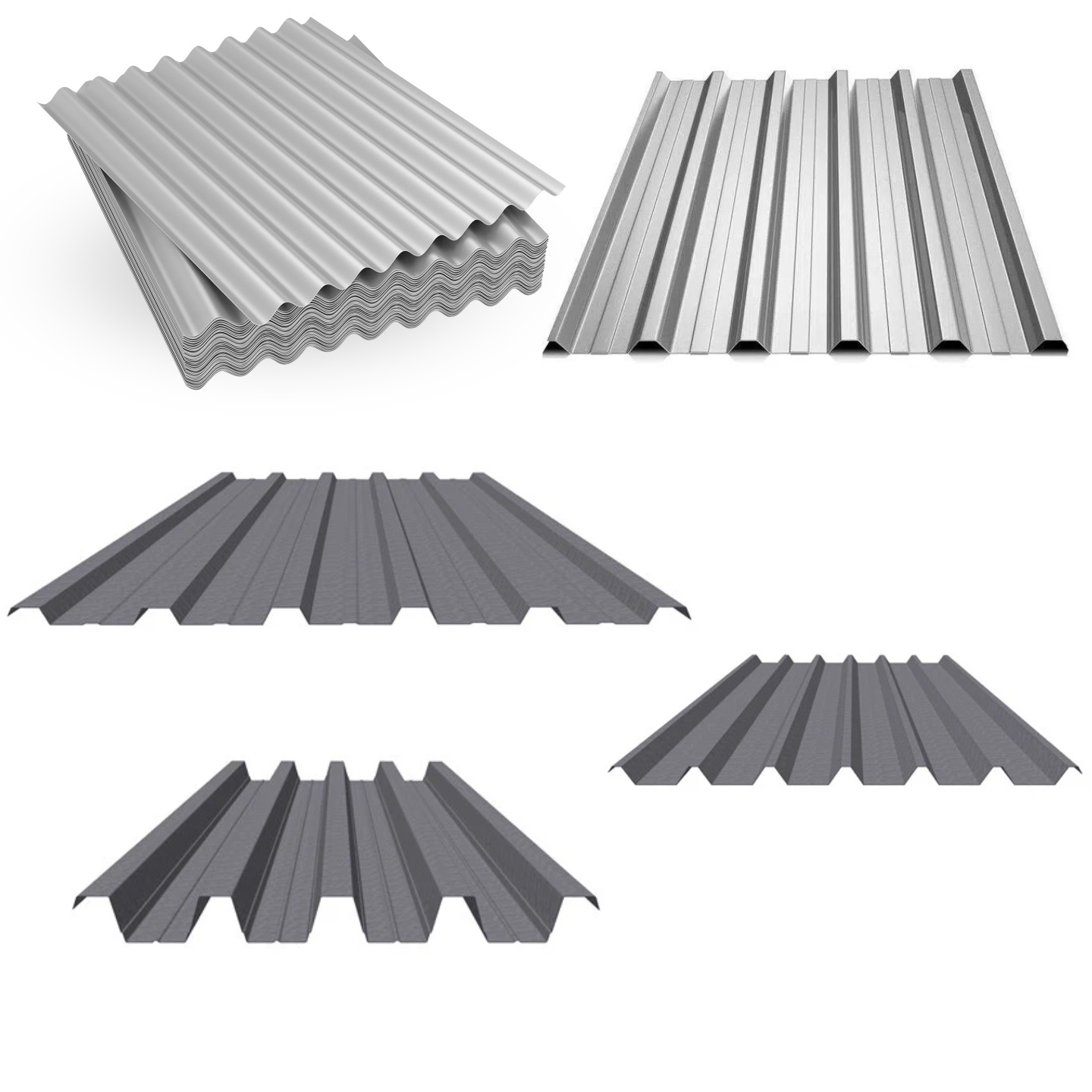

Main finished products
- Trapezoidal roof panels (trapezoidal colored‑steel roofing sheets)
The most‑common load‑bearing metal roof sheet for factories, warehouses, sheds and commercial buildings.
- Corrugated wall panels / corrugated roof sheets
Wave‑shaped metal sheets widely used for building exterior wall cladding and simple rooftops.
- It can also be customized to make glazed‑style metal roof tiles, rib‑type wall panels according to your roller mould.
Material of finished panels
Finished sheets are processed from color‑coated steel coils, galvanized steel coils, galvalume steel strips.
Practical benefits
You can switch between two panel profiles quickly on the same machine. It helps manufacturers produce roofing and wall sheets with one‑single production‑line, saving workshop space and the expense of purchasing two separate roll‑forming machines.
