Description

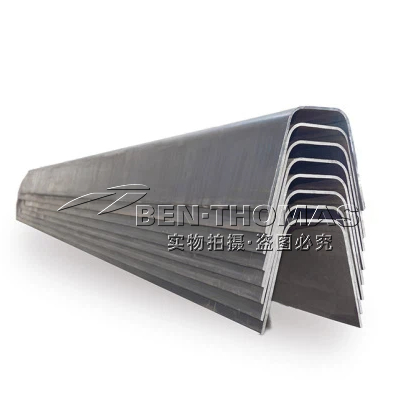

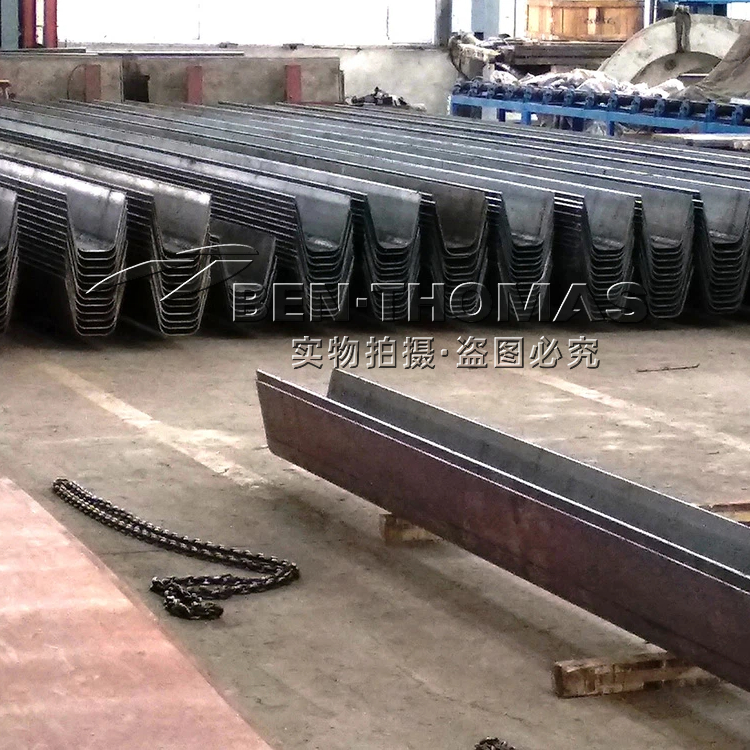

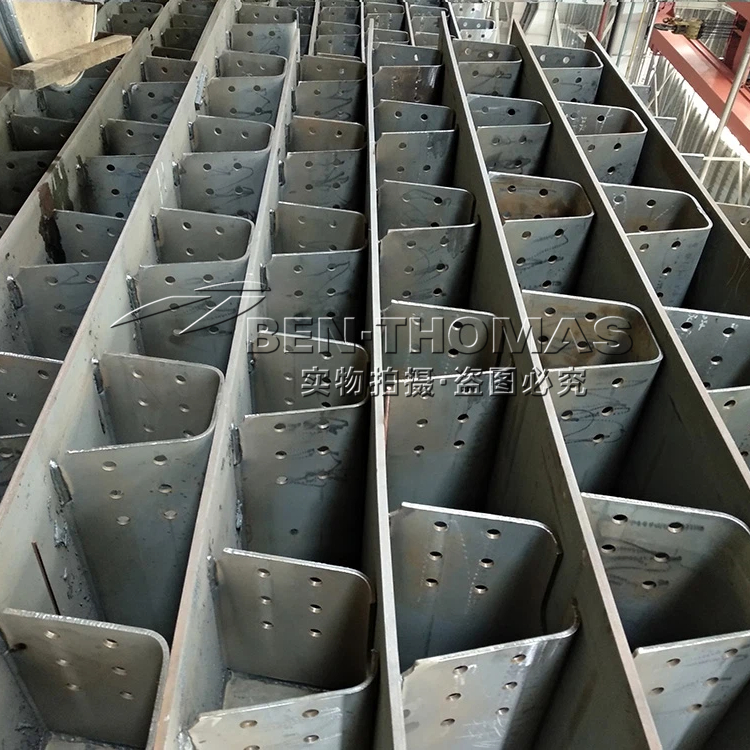

A Bridge U-rib Production Line is a specialized automated manufacturing system designed to produce U-shaped stiffening ribs (U-ribs), which are the critical longitudinal reinforcement components welded onto steel bridge decks to form an orthotropic steel deck system .

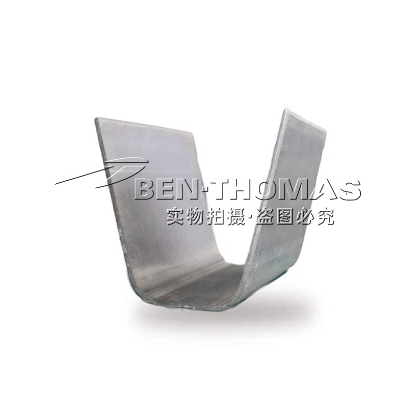

These U-shaped profiles—typically open isosceles trapezoids in cross-section—act like a skeletal system for the bridge deck, enabling uniform force distribution and significantly enhancing the load-bearing capacity of the structure while minimizing weight .
U-ribs are fundamental components in modern steel bridge construction:
| Feature | Description |
|---|---|

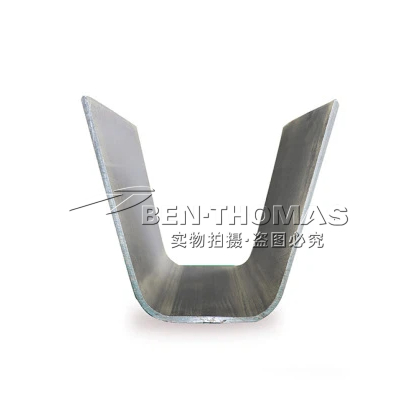

| Cross-section | Open isosceles trapezoid (U-shaped), typically with equal angles between top and sides |
| Material | High-strength steel, commonly 6-8mm thickness or even higher ; |
| Function | Welded longitudinally to bridge deck plates to create orthotropic decks with superior strength-to-weight ratio |
| Applications | Highway bridges, railway bridges, long-span cable-stayed bridges (e.g., Changtai Yangtze River Bridge), and suspension bridges |
| Advantages | Easy construction, uniform force distribution, deformation resistance |

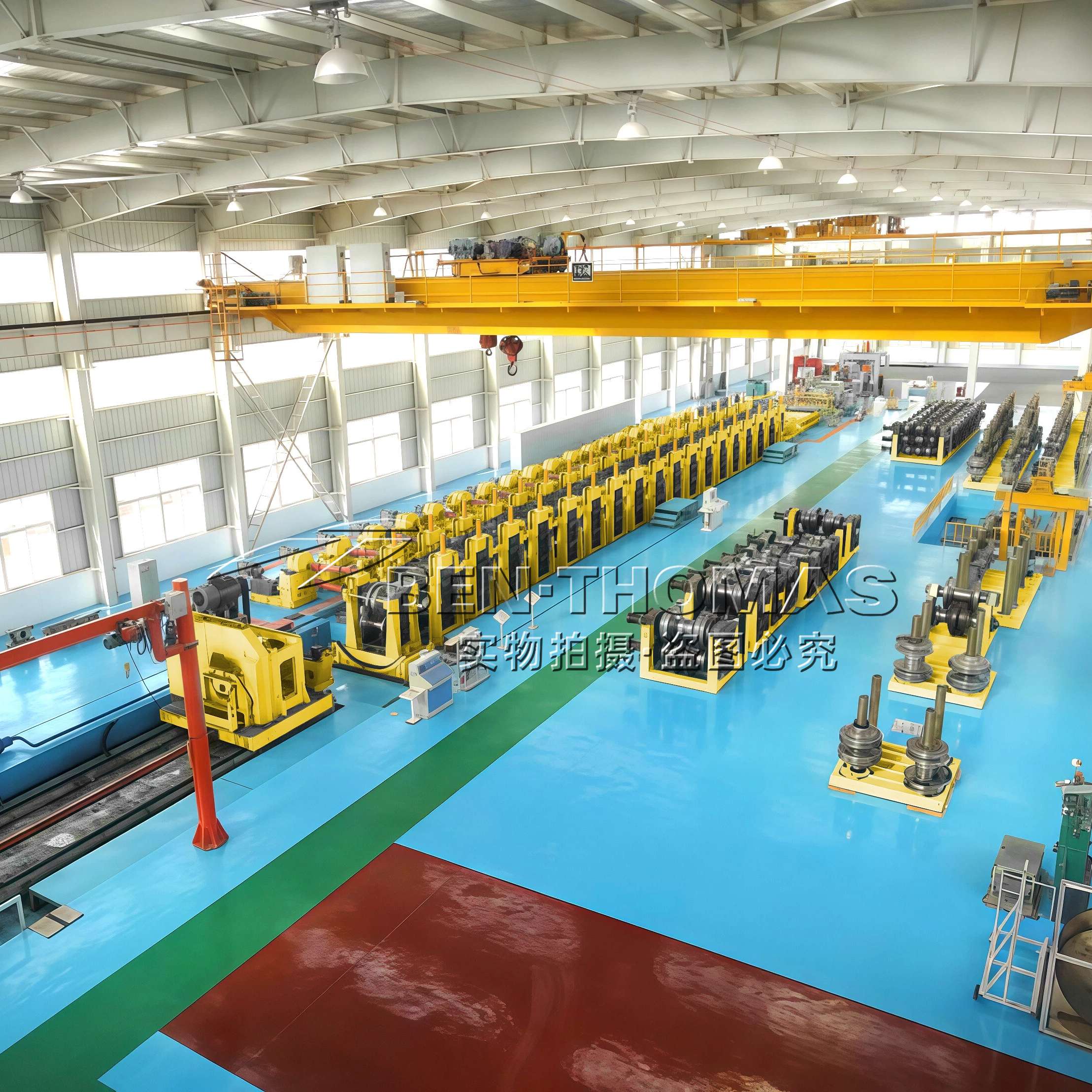

Modern Automated Production Line
Contemporary U-rib lines incorporate advanced technologies:
| Stage | Function | Key Details |
|---|---|---|
| 1. Material Preparation | Decoiling, leveling, and feeding steel plates | Ensures flat, stress-free material before forming |
| 2. Groove Cutting | Precision bevel cutting for weld preparation | Paired bevel cutting torches with centering positioning devices; pre-heating before forming |

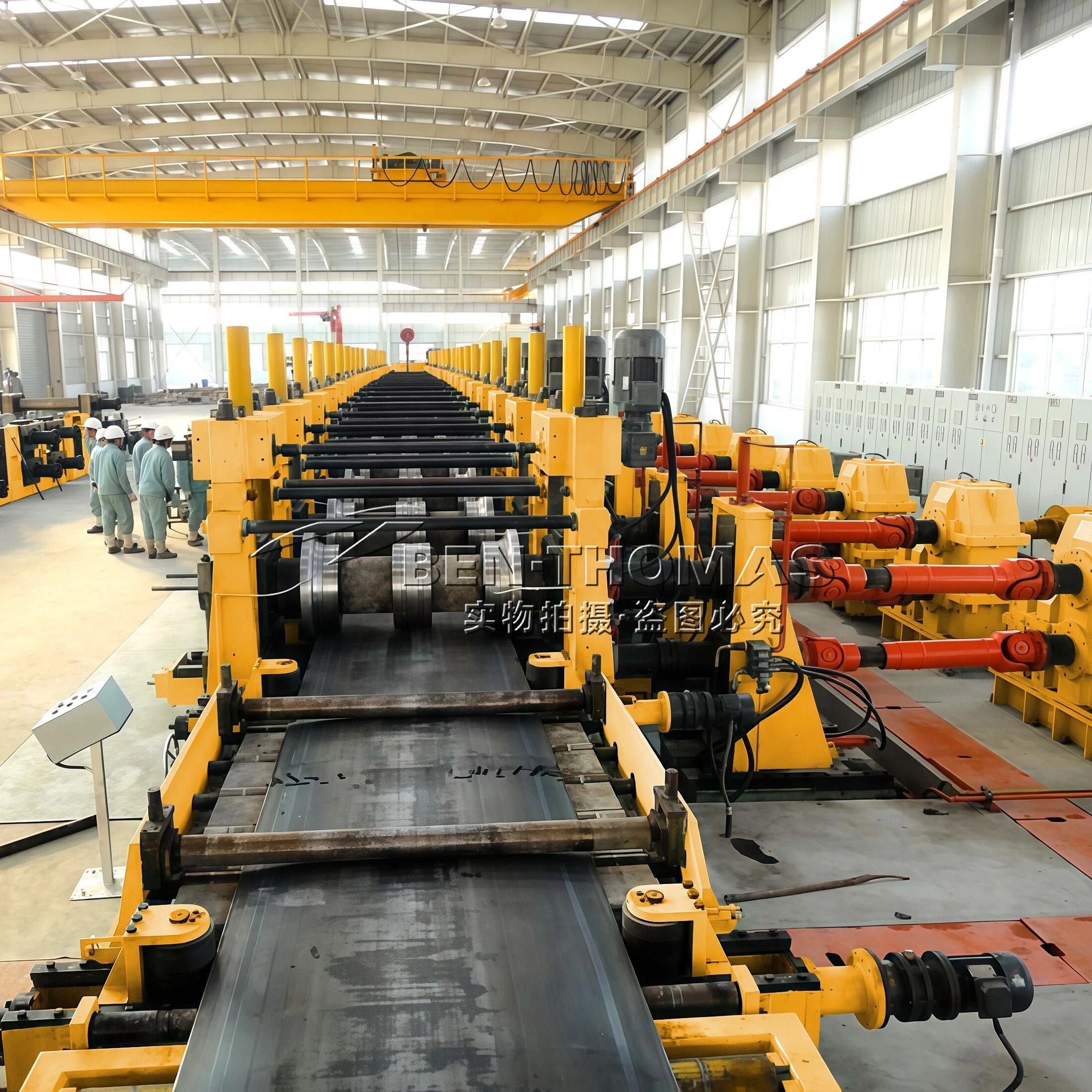

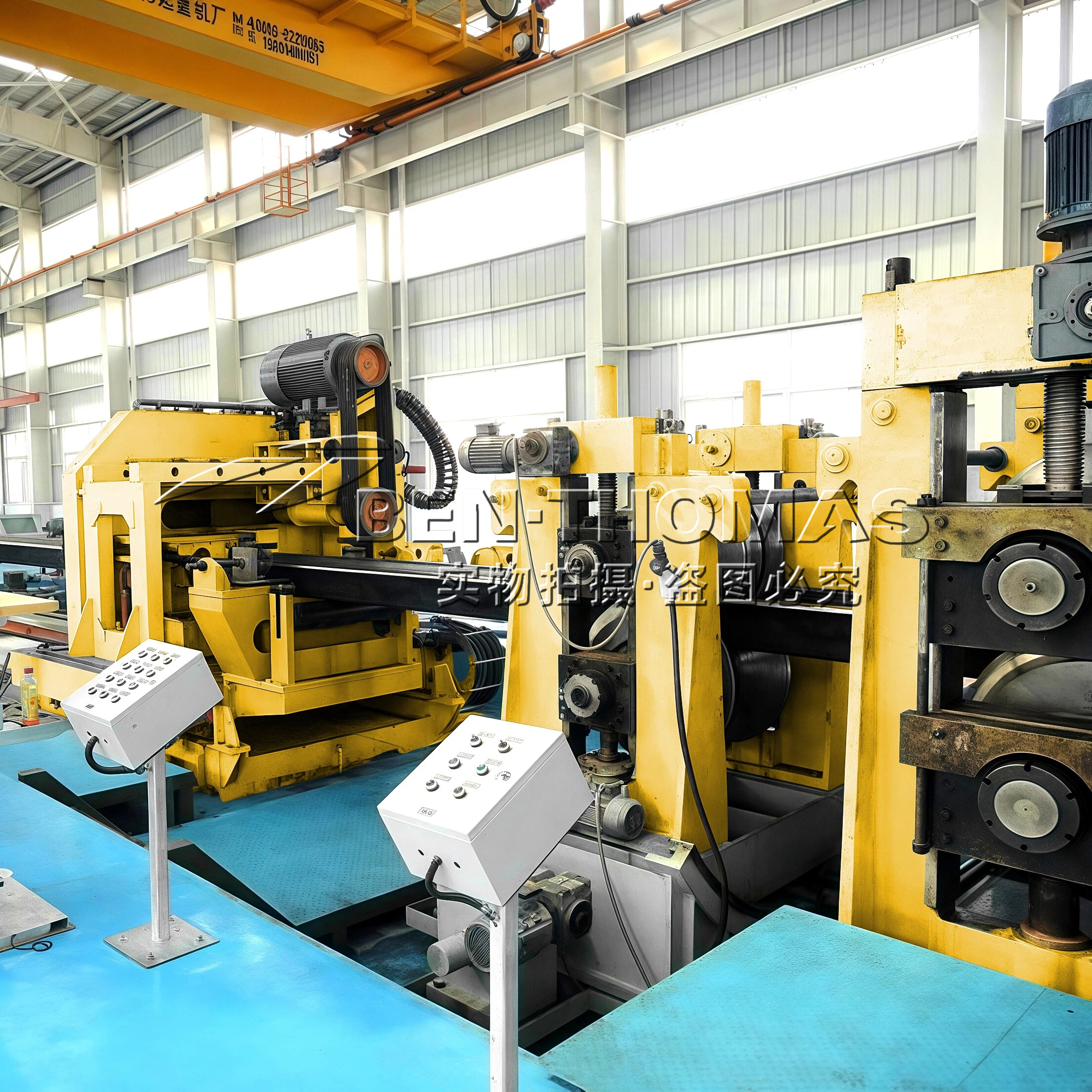

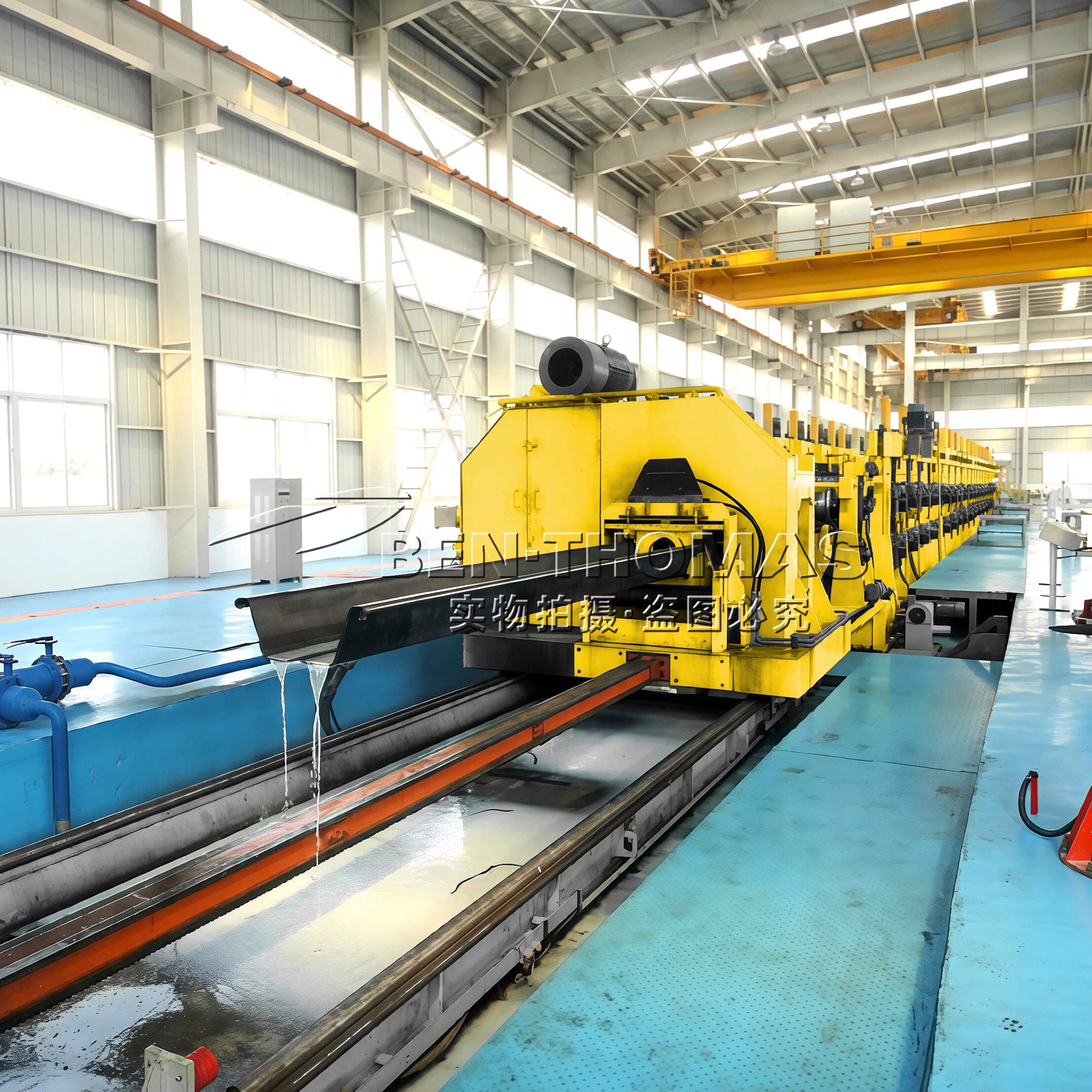

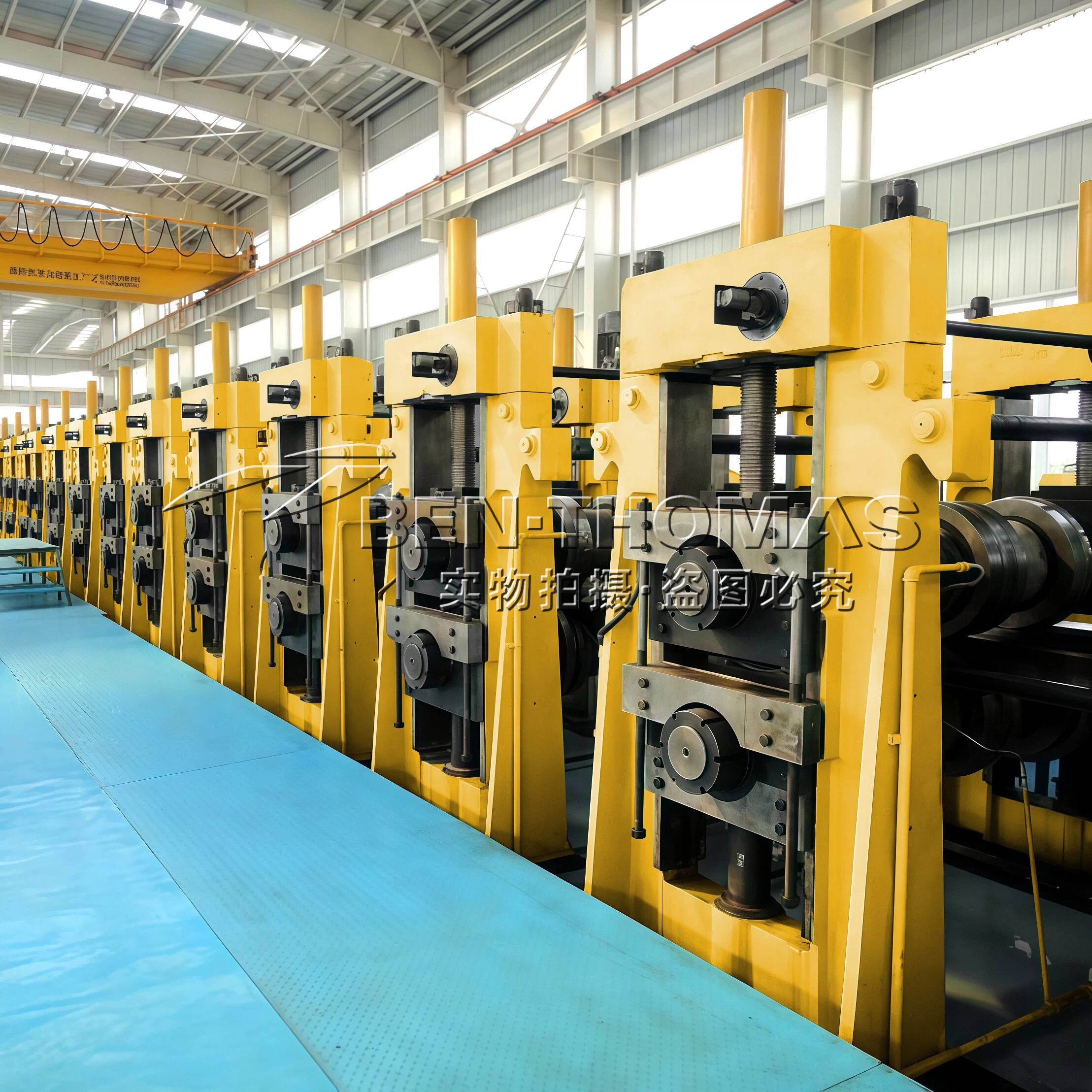

| 3. Roll Forming | Progressive bending through multi-pass roller units | Upper and lower rollers create trapezoidal gaps that gradually close along the forming direction to achieve final U-shape |
| 4. Cutting | Cut the rib base on length requirement | Cut to length through PLC controller |

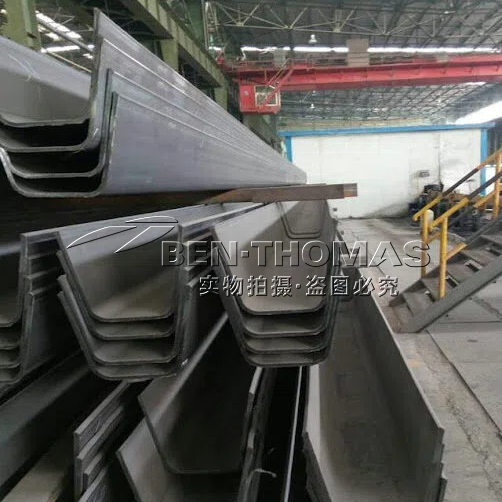

| 5. Auto stacking | Pick up the rib one by one | automatic controlled through PLC system |
In essence, a Bridge U-rib Production Line is the manufacturing backbone of modern steel bridges—transforming flat steel plates into the precision-engineered U-shaped stiffeners that form the “skeleton” of orthotropic bridge decks, enabling longer spans, lighter structures, and extended service life .
